Overview

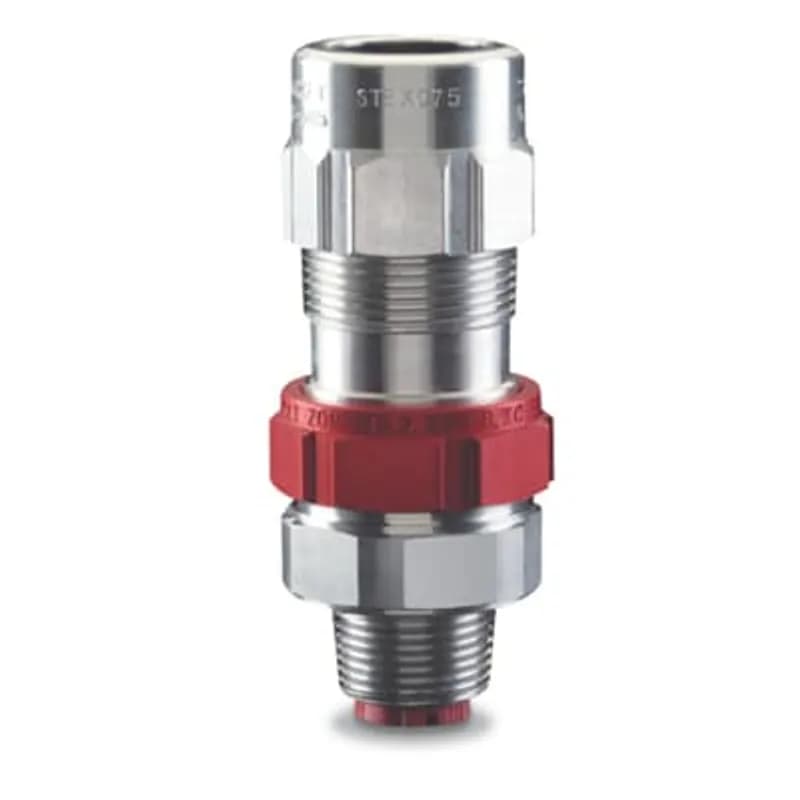

- Hub size: 1-1/4" NPT for secure conduit connection
- Range-taking design: Accommodates jacket diameters from 0.950" to 1.375"
- Removable armour stops for simplified installation and maintenance
- Aluminum construction for corrosion resistance in harsh environments
- UL 514B and CSA C22.2 No. 18.3 certified for hazardous locations
Specifications
Application | For Hazardous Locations |
Color | Red;Silver |
Material | Aluminum |
Size | 1-1/4 inches |
Standard | UL E82038, CSA 23086 |
Type | Teck Cable Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
SH 101
Cap, Clamp-Type Service, Conduit Size 1/2 Inch, Number of Holes 4, Size 4(19/64 Inch), Aluminum, For Rigid/Intermediate or Thinwall
95138
Clamp-on service entrance cap for 4-inch EMT and rigid/IMC conduit. It is made of aluminum with a silver color and no additional finish. The enclosure is listed as Weatherhead.
STE400S
Star Teck Extreme steel jacketed cable fitting. Hub size of 4 inches. Range over jacket from 3.665 - 4.340 inches.STEX250
Star Teck Extreme hazardous location aluminum jacketed cable fitting. Hub size of 2-1/2 inch. Range over jacket from 1.825 - 2.375 inches.STEX400
Star Teck Extreme hazardous location aluminum jacketed cable fitting. Hub size of 4 inch. Range over jacket from 3.220 - 3.870 inches.STEX350
Star Teck Extreme hazardous location aluminum jacketed cable fitting. Hub size of 3-1/2 inch. Range over jacket from 2.670 - 3.270 inches.
STX050-464S
Star Teck hazardous location steel jacketed cable fitting. Hub size of 1/2 inch. Range over jacket from 0.600 - 0.760 inch.Frequently Asked Questions
What are the limitations of SC65 sealing compound?
SC65 is not recommended for shielded cables and is suitable for cables with a maximum of 4 conductors, including ground.
When should I use SC4-KIT-1 sealing compound?
Use SC4-KIT-1 liquid compound for shielded cables and cables with 5 conductors or more, including ground.
What hazardous locations is the STEX125 suitable for?
The STEX125 is suitable for Class 1 Div 1 areas, Class I Div1 ABCD, Class II Div1 EFG, and Class III Div1 locations.
What cable types are compatible with STEX125 fittings?
The STEX125 is suitable for Jacketed Teck, Armored control and instrument (ACIC Div2 locations), and Type MC jacketed corrugated metal clad cables.
What sealing compounds are required for installation?
The STEX125 must be installed with either SC4-KIT-1 liquid compound or SC65 putty sealing compound, which are sold separately.
What is the cable armor diameter range for STEX125?
The STEX125 accommodates a cable armor diameter range from 0.870 inches to 1.295 inches.
What is the operating temperature range for STEX125?
The normal operating temperature range for the STEX125 is -40 to +90°C (-40 to +194°F).
What is the cable jacket diameter range for STEX125?
The STEX125 accommodates a cable jacket diameter range from 0.950 inches to 1.375 inches.
What is the ingress protection rating of the STEX125?
The STEX125 has an ingress protection rating of Type 4 / 4X.
What is the NPT thread size for the STEX125?
The NPT thread size for the STEX125 is 1-1/4 inches.
How to Install the STEX125 Cable Fitting
Instructions for preparing and installing the STEX125 cable fitting, including sealing procedures.
Estimated time: 1h
Tools needed:
Hacksaw, Screwdriver, Dowel
Supplies needed:
Sealing compound (SC4-KIT-1 or SC65), Fiber damming material (if using SC4-KIT-1)
- Prepare the cable jacket and armor
Determine the working length of the conductors. Remove a portion of the outer jacket to expose the armor. Cut the armor using a hacksaw to the strip length indicated in the table. Do not nick the conductor insulation.
- Trim the outer jacket and test armor stop
Trim the outer jacket to expose the armor strip length. Test the inner conductor bundle by inserting the ends into the armor stop opening. If the bundle does not pass, remove and discard the armor stop.
- Feed cable through gland nut
Feed the cable through the gland nut opening and push until the cable armor hits the armor stop (if not removed).
- Tighten the gland nut
Tighten the gland nut until an appropriate seal is obtained or to the maximum torque specified in the table. Ensure the cable remains centered for an optimal seal.
- Disassemble hub and sealing chamber
Loosen the union to disassemble the hub from the body sub-assembly. Unscrew the sealing chamber from the body sub-assembly. If the removable armor stop was not removed earlier, unscrew and discard it.
- Trim inner jacket
Trim the inner jacket to a length of 1/8"-3/8" to expose the conductor bundle. For shielded data cables, follow the specific instructions in Section 2.
- Apply sealing compound
Depending on the type of sealing compound used (liquid SC4-KIT-1 or putty SC65), follow the specific instructions in Section 3 or Section 4 to pack the sealing chamber and around the conductors. Ensure all voids are filled and excess compound is removed.
- Mount the hub
Once the sealing compound has solidified (approximately 1 hour), place the encapsulated assembly into the hub and secure it by tightening the union until metal-to-metal contact is achieved.
