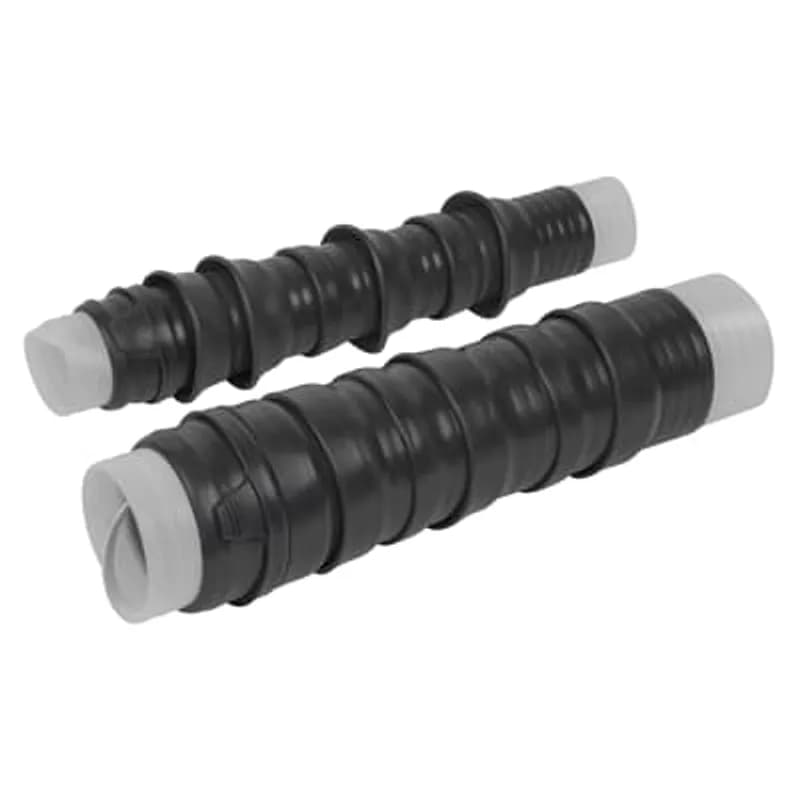

ABB - Installation Products R2T28M4-N0330-B4 - Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - 1.30 inch - 2.10 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 330 -Stranded or Compressed 500 kcmil or Compact or Solid 600 kcmil. Cable Mounting Bracket B4 - 1.80 to 2.40 inch (45-61mm).

ABB Installation Products R2T28M4-N0330-B4 Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Tape Shield/Wire Shield/…

UPC: 075114362184


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Ranger2 Termination (SKU: R2T28M4-N0330-B4) is a high-voltage outdoor termination kit engineered for 25/28 kV power distribution systems. Designed for tape shield, wire shield, or unshielded cables, this termination supports insulation diameters from 1.30 to 2.10 inches (#2 AWG through 1250 kcmil). It accommodates stranded or compressed 500 kcmil conductors, or compact or solid 600 kcmil conductors, with a 2-hole spade connector rated #2-1250 kcmil for compatibility with large cross-section cables. The Ranger2 series leverages shrink-fit technology and Elastimold’s pull-down jacket seal for reliable performance in harsh outdoor environments. The non-tracking silicone housing delivers superior weathering resistance and long-term durability, while the six-shed design ensures maximum creepage and strike distances for 25/28 kV applications. Field-removable center core simplifies installation, and pull-down tabs enable quick jacket seal deployment. The integrated B4 mounting bracket supports cable outer diameters from 1.80 to 2.40 inches (45-61mm), providing secure attachment to structures or equipment. The termination is optimized for restricted spaces and free-hanging applications, making it ideal for utility, industrial, and commercial power distribution networks. Compatible with XLP and EPR cable types, the Ranger2 series minimizes installation time and reduces the risk of electrical faults in critical infrastructure.
  • 25/28 kV outdoor termination for tape shield, wire shield, or unshielded cables
  • Supports insulation diameters from 1.30 to 2.10 inches (#2 AWG to 1250 kcmil)
  • Accommodates stranded/compressed 500 kcmil or compact/solid 600 kcmil conductors
  • 2-hole spade connector rated #2-1250 kcmil for large cross-section cables
  • Six-shed silicone housing with non-tracking properties for superior weathering resistance

Specifications

Application
Cable Termination, Outdoor Application, 28kV
Cable Type
Copper Tape Shielded Wire
Color
Gray
Conductor Size
500 to 600 kcmil
Connection Type
2-Hole Spade #2-1250 kcmil
Earthing
Products Includes Their Own Grounding System
Material
Aluminum
Mounting
Product Need to have Cable Holder (not included)
Mounting Type
Bracket (B4)
Number Of Terminals
(1) Single Phase
Series
Ranger2
Size
1.30-2.10 inch (insulation), 1.80-2.40 inch (bracket)
Special Features
Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction
Standard
IEEE 48
Type
Cable Termination - Outdoor - Ranger2
Voltage Rating
28 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Tape Shield, Wire Shield, and Unshielded Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 500 /Compact or Solid 600, Stainless Steel Mounting Bracket 1.45 inch - 1.95 inch

R2T28M2-N0330-B3

Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Tape Shield, Wire Shield, and Unshielded Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 500 /Compact or Solid 600, Stainless Steel Mounting Bracket 1.45 inch - 1.95 inch
Ranger2 Termination. Type - Indoor, 15kV, Cable Type - Concentric Neutral/Jacketed Concentric Neutral, Insulation Range - 1.30 inch - 2.10 inch, Connector Type N0 - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code 410 - Stranded or Compressed 1000.

R2IT15J4N0410

Ranger2 Termination. Type - Indoor, 15kV, Cable Type - Concentric Neutral/Jacketed Concentric Neutral, Insulation Range - 1.30 inch - 2.10 inch, Connector Type N0 - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code 410 - Stranded or Compressed 1000.
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .84 inch - 1.38 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 240 -Stranded or Compressed 1/0 Compact or Solid 2/0.

R2T28M2-N0240

Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .84 inch - 1.38 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 240 -Stranded or Compressed 1/0 Compact or Solid 2/0.
69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 2, Connection Type 2 - 2 Hole NEMA, Connector Type - Aluminum, Conductor Size Code 30P, Metallic Screen Kit - Flat Braid, Armour Kit - Heat Shrink, No Bracket Required

69TCT222130PABN

69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 2, Connection Type 2 - 2 Hole NEMA, Connector Type - Aluminum, Conductor Size Code 30P, Metallic Screen Kit - Flat Braid, Armour Kit - Heat Shrink, No Bracket Required
69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 3, Connection Type - None, Connector Type - Copper, Conductor Size Code 38P, Metallic Screen Kit - Flat Braid, Armour Kit - Jacketing Tape and Mastic, No Bracket Required

69TCT22N238PANN

69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 3, Connection Type - None, Connector Type - Copper, Conductor Size Code 38P, Metallic Screen Kit - Flat Braid, Armour Kit - Jacketing Tape and Mastic, No Bracket Required
69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 0, Connection Type - None, Connector Type - Copper, Conductor Size Code 32P, Metallic Screen Kit - Flat Braid, Armour Kit - Heat Shrink, No Bracket Required

69TCT20N232PABN

69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 0, Connection Type - None, Connector Type - Copper, Conductor Size Code 32P, Metallic Screen Kit - Flat Braid, Armour Kit - Heat Shrink, No Bracket Required
69kV, Transmission Cable Terminator, Base and Two Top Module, Housing Size 1, Connection Type 2 - 2 Hole NEMA, Connector Type - Copper, Conductor Size Code 33P, Metallic Screen Kit - Flat Braid, Armour Kit - Heat Shrink, No Bracket Required

69TCT312233PABN

69kV, Transmission Cable Terminator, Base and Two Top Module, Housing Size 1, Connection Type 2 - 2 Hole NEMA, Connector Type - Copper, Conductor Size Code 33P, Metallic Screen Kit - Flat Braid, Armour Kit - Heat Shrink, No Bracket Required
69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 2, Connection Type 2 - 2 Hole NEMA, Connector Type - Aluminum, Conductor Size Code 33P, Metallic Screen Kit - Flat Braid, Armour Kit - Jacketing Tape and Mastic, No Bracket Required

69TCT-222-133P-AAN

69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 2, Connection Type 2 - 2 Hole NEMA, Connector Type - Aluminum, Conductor Size Code 33P, Metallic Screen Kit - Flat Braid, Armour Kit - Jacketing Tape and Mastic, No Bracket Required

Frequently Asked Questions

Where can I find installation instructions for R2T28?

Installation instructions are IS-1134 for R2T28J, IS-1135 for R2T28M, and IS-1136 for R2T28L.

What is the Lightning Impulse Withstand (BIL) for R2T28?

The Lightning Impulse Withstand (BIL Dry 110 Withstand) for the R2T28 is 150 kV Crest.

What is the power system frequency range for the R2T28?

The R2T28 termination is designed for power system frequencies ranging from 48 to 62 Hz.

What is the voltage rating of the R2T28 termination?

The R2T28 cable termination has a voltage rating of 25/28 kV.

What cable insulation diameters does the R2T28 accommodate?

The R2T28 termination covers cable insulation diameters from 0.84 inches (21.3 mm) to 2.10 inches (53 mm).

What is the operating temperature range for the R2T28?

The R2T28 termination operates within an ambient temperature range of -22 to +149 °F (-30 to +65 °C).

What is the maximum altitude for R2T28 installation?

The R2T28 cable termination can be installed at a maximum altitude of 3300 feet (1005 m).

What is the maximum design voltage to ground for R2T28?

The maximum design voltage to ground for the R2T28 termination is 16 kV.

How many sheds does the R2T28 outdoor model have?

The 25/28kV outdoor model of the R2T28 termination features six sheds.

What is the creepage distance of the R2T28 termination?

The R2T28 termination has a creepage distance of 22.8 inches (579 mm).

How to Install the R2T28M4 Ranger 2 Shrink-Fit Silicone Rubber Termination for Tape Shielded Cable

This guide provides step-by-step instructions for the safe and proper installation of the R2T28M4 Ranger 2 Shrink-Fit Silicone Rubber Termination on tape shielded cables, covering cable preparation, ground braid installation, and termination placement. Ensure all apparatus are de-energized before starting.

Estimated time: 1h 30m

Tools needed:

Wire strippers, Crimping tool, Approved solvent, Aluminum oxide abrasive (grit 120 or finer, optional), Measuring tape or ruler, Utility knife or cable knife

Supplies needed:

R2T28M4 Silicone Rubber Termination kit (includes termination, lubricant, gray silicone rubber tape, constant force spring, preformed ground braid, sealing mastic, copper foil tape, gloves), Compatible terminal lug or connector, Vinyl tape

  1. Perform Pre-Installation Checks and Prepare Cable

    DANGER: All apparatus must be de-energized during installation. Inspect the kit contents for completeness and damage. Verify all components fit properly with the cable and mating products. Train the cable into position and cut it to the required length. Prepare the cable according to the dimensions specified in the Termination Selection Chart and Table 1, allowing for terminal lug depth and growth allowance. Secure the edge of the tape shield with a single wrap of the supplied copper foil tape to prevent unrolling.

  2. Install the Ground Braid

    Carefully wrap one band of sealing mastic around the cable jacket, 1/4 inch (6mm) from the jacket end, using 50% stretch. Position the preformed ground braid with its short tail over the tape shield and the solder block centered over the mastic strip. Secure the ground braid to the cable jacket using vinyl tape and press the solder block into the mastic. Apply a second mastic band over the solder block and the first mastic, maintaining the 1/4 inch (6mm) dimension. Wrap two half-lapped layers of vinyl tape around the mastic seal. Wrap the ground braid around the cable tape shield one complete wrap, trim any excess to prevent overlap, and secure it in place with the constant force spring. Wrap the spring in the same direction as the ground braid, cinch it after the final winding, and secure it with two wraps of vinyl tape.

  3. Install the Lug or Connector

    Check that the termination assembly fits over your selected lug. If it does not, clean the insulation and slide the termination onto the cable before installing the lug (do not remove the core at this time). Position the connector or lug and crimp it according to the manufacturer’s directions, ensuring to leave the last 3/8 inch to 1/2 inch uncrimped. After crimping, remove any excess oxide inhibitor and all sharp crimp flashings and edges.

  4. Clean Cable Insulation and Lug Barrel

    Wipe the cable insulation thoroughly with an approved solvent, taking care not to allow the solvent to touch the semi-conductive insulation shield. If abrasive cleaning is necessary, use only aluminum oxide abrasive (grit 120 or finer) on the insulation only, and do not use it on the semi-conductive insulation shield. Be careful not to reduce the cable insulation diameter below the kit's allowed range.

  5. Install the Termination Body

    Create a track-resistant moisture seal between the termination insulator and the lug/connector using the supplied gray silicone rubber electrical tape. Wrap a band of silicone tape around the base of the terminal lug; use no more than 2 layers if the barrel diameter is equal to or greater than the cable primary insulation, or build up the tape band to match the insulation diameter if the barrel is smaller. Cover the edge of the semi-conductive insulation shield with a liberal coating of silicone grease to fill the step at the semi-con cut-off. For lower terminations with a fold-down skirt, pull the loose end of the removable core through the top of the termination until the core is flush with the bottom. Slide the termination body onto the cable, aligning it with the forward edge of the mastic seal. Carefully remove the core by unwinding it counter-clockwise, starting with the loose end. Ensure the termination body, not the core, is butted up to the leading edge of the mastic seal. Continue removing the core without pushing or pulling on the termination assembly.

  6. Complete the Lug Area Moisture Seal and Ground Connection

    Apply a thin film of silicone lubricant to the skirt and mastic seal area, but do not lubricate the skirt tabs. Carefully fold down the skirt over the mastic seal. With the termination installed, complete the lug area moisture seal using the remaining gray silicone rubber electrical tape. Overlap the termination insulator by approximately 1 inch and extend the tape wrapping over a non-crimped region of the lug/connector barrel with a half-lap configuration. Connect the ground braid to the system ground. Finally, confirm that the High-K step does not exceed 1.5 inches.
