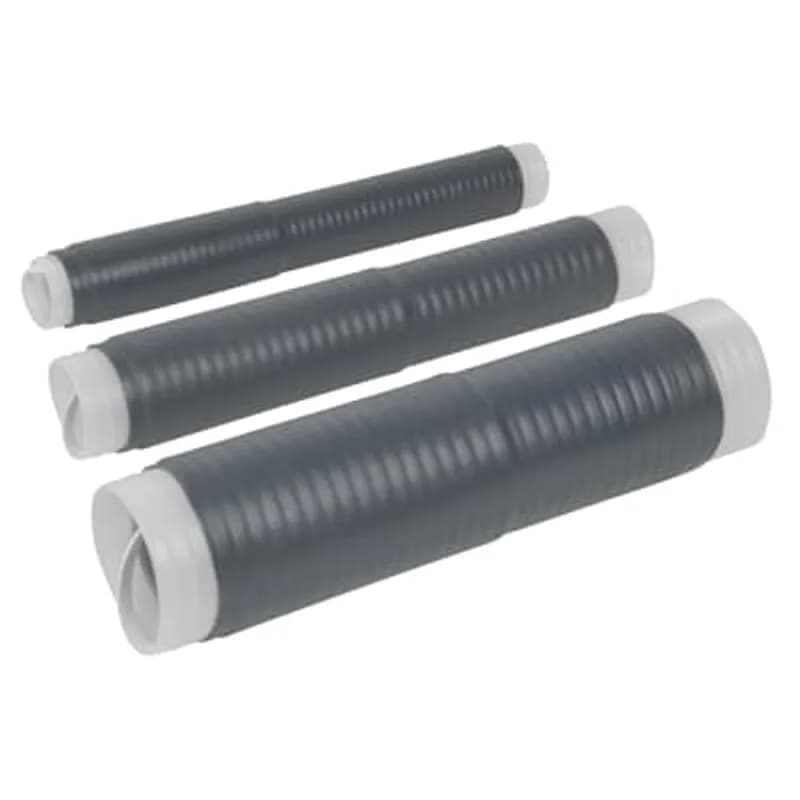

ABB Installation Products R2IT15J4N0410 Ranger2 Termination. Type - Indoor, 15kV, Cable Type - Concentric Neutral/Jacketed…
UPC: 075114366328
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15kV Voltage Rating for medium-voltage applications.
- Designed for indoor mounting.
- Accommodates Concentric Neutral and Jacketed Concentric Neutral cable types.
- Insulation range from 1.30 inch to 2.10 inch.
- Aluminum 2-hole spade connector for #2-1250 kcmil conductors.
Specifications
Application | Cable Termination, Indoor Application, 15kV |
Cable Type | Concentric Neutral Wire |
Color | Gray |
Conductor Size | 1000 kcmil |
Earthing | Products Includes Their Own Grounding System |
Mounting | Product Need to have Cable Holder (not included) |
Number Of Terminals | (1) Single Phase |
Special Features | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
Standard | IEEE 48 |
Type | Cable Termination - Indoor - Ranger2 |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
R2T15L4-N0410
Ranger2 Termination for 15KV outdoor application, cable insulation diameter 1.30 - 2.10 inches for LC Shield Tape Shield/Wire Over Tape Shield. includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 1000.
R2T28M2-N0240
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .84 inch - 1.38 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 240 -Stranded or Compressed 1/0 Compact or Solid 2/0.
69TCT222130PABN
69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 2, Connection Type 2 - 2 Hole NEMA, Connector Type - Aluminum, Conductor Size Code 30P, Metallic Screen Kit - Flat Braid, Armour Kit - Heat Shrink, No Bracket Required69TCT22N238PANN
69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 3, Connection Type - None, Connector Type - Copper, Conductor Size Code 38P, Metallic Screen Kit - Flat Braid, Armour Kit - Jacketing Tape and Mastic, No Bracket Required69TCT20N232PABN
69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 0, Connection Type - None, Connector Type - Copper, Conductor Size Code 32P, Metallic Screen Kit - Flat Braid, Armour Kit - Heat Shrink, No Bracket Required69TCT312233PABN
69kV, Transmission Cable Terminator, Base and Two Top Module, Housing Size 1, Connection Type 2 - 2 Hole NEMA, Connector Type - Copper, Conductor Size Code 33P, Metallic Screen Kit - Flat Braid, Armour Kit - Heat Shrink, No Bracket Required69TCT-222-133P-AAN
69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 2, Connection Type 2 - 2 Hole NEMA, Connector Type - Aluminum, Conductor Size Code 33P, Metallic Screen Kit - Flat Braid, Armour Kit - Jacketing Tape and Mastic, No Bracket Required69TCT23N242PABN
69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 3, Connection Type - None, Connector Type - Copper, Conductor Size Code 42P, Metallic Screen Kit - Flat Braid, Armour Kit - Heat Shrink, No Bracket RequiredFrequently Asked Questions
What is the minimum strike distance for the R2IT15?
The minimum strike distance for the R2IT15 termination is 8.4 in (213 mm).
What installation instructions are available for R2IT15?
Installation instructions are IS-1134 for R2IT15J, IS-1135 for R2IT15M, and IS-1136 for R2IT15L.
What is the maximum design voltage to ground for R2IT15?
The maximum design voltage to ground for the R2IT15 termination is 9.5 kV.
What is the IEEE classification for the R2IT15 termination?
The R2IT15 termination has an IEEE Classification of Indoor = Class 2.
What is the power system frequency range for this termination?
The R2IT15 termination is designed for power system frequencies ranging from 48 to 62 Hz.
What is the maximum altitude for R2IT15 installation?
The R2IT15 termination can be installed at an altitude range of up to 3300 feet max (1005 m).
What is the operating temperature range for the R2IT15?
The R2IT15 termination operates within an ambient temperature range of -22 to +149 °F (-30 to +65 °C).
What cable sizes are compatible with R2IT15 terminations?
The R2IT15 terminations are compatible with cables from #2 AWG through 1250 kcmil, covering insulation diameters from 0.64 in to 2.10 in.
What is the voltage rating of the R2IT15 termination?
The R2IT15 cable termination has a voltage rating of 15 kV.
What is the minimum strike distance for the R2IT15?
The minimum strike distance for the R2IT15 termination is 8.4 in (213 mm).
How to Install 15kV Ranger 2 Shrink Fit Silicone Rubber Termination (R2IT15M Series)
This guide provides step-by-step instructions for installing the 15kV Ranger 2 Shrink Fit Silicone Rubber Termination on tape-shielded cables, including cable preparation, ground braid installation, and termination placement.
Estimated time: 2h
Tools needed:
Cable preparation tools, Crimping tool, Solvent saturated pads, Aluminum oxide abrasive (grit 120 or finer, optional)
Supplies needed:
15kV Ranger 2 Shrink fit Silicone Rubber Termination kit, Vinyl tape, Terminal lug or connector, Cable Support Bracket (optional), Semi-conductive rubber tape (e.g., Scotch® No. 13, if needed)
- Ensure Safety and Inspect Components
DANGER: All apparatus must be de-energized during installation or removal of part(s). Do not touch or move energized products in the work area. Failure to follow these instructions will result in damage to the product and serious or fatal injury. Inspect the kit contents for completeness and damage, and verify compatibility with the cable and mating parts. Read all installation instructions before starting.
- Prepare the Cable for Termination
Train the cable into position and cut to the required length. Prepare the cable by removing the jacket, tape shield, and semi-conductive layer according to the specified dimensions (9-1/4" jacket removal, 3/4" tape shield, 1-1/2" semi-con). Secure the edge of the tape shield with a single wrap of the supplied copper foil tape to prevent unrolling. Account for aluminum lug growth allowance as specified (1/4" for 2/0-350, 1/2" for 400-650, 3/4" for 750-1000).
- Install the Ground Braid
Wrap one band of vinyl tape 1/4" (6mm) from the jacket end to serve as a marker. Position the preformed ground braid with the short tail over the tape shield and the solder block centered over the vinyl tape marker. Secure the ground braid to the cable jacket with vinyl tape. Apply a second vinyl tape band directly over the original tape marker and solder block, maintaining the 1/4" (6mm) dimension. Wrap the ground braid around the cable tape shield for one complete wrap, trim any excess, and secure it with the constant force spring. Cinch the spring after the final winding and secure it with two wraps of vinyl tape. If the cable has cloth or paper semi-conductive insulation shield, overwrap the shield with one half-lapped layer of highly stretched semi-conductive rubber tape.
- Install Lug/Connector and Clean Cable
Before crimping, check that the termination assembly will fit over the selected lug. If not, slide the termination body onto the cable (without removing the core) before installing the lug. Position the connector or lug and crimp it according to the manufacturer's directions, ensuring not to crimp the last 3/8" to 1/2" of the connector. Remove any excess oxide inhibitor and all sharp crimp flashings or edges after crimping. Wipe the cable insulation with solvent-saturated pads, taking care not to allow solvent to touch the semi-conductive insulation shield. If abrasive cleaning is necessary, use only aluminum oxide abrasive (grit 120 or finer) on the insulation only, and ensure not to reduce the cable insulation diameter below the kit's allowance. Do not use abrasive on the semi-conductive insulation shield.
- Install Termination and Ground
Liberally coat the edge of the semi-conductive insulation shield with silicone grease to fill the step at the semi-con cut-off. Slide the termination body onto the cable, aligning its edge with the forward edge of the vinyl tape marker. Carefully begin to remove the core by pulling counter-clockwise. Recheck the termination position and continue removing the core. Do not push or pull on the termination assembly during core removal. Connect the installed ground braid to the system ground. WARNING: 15kV INDOOR KIT DOES NOT RESTORE A MOISTURE RESISTANT SEAL TO CABLE TERMINATION. If termination must be moisture resistant, indoor/outdoor kits must be used.
