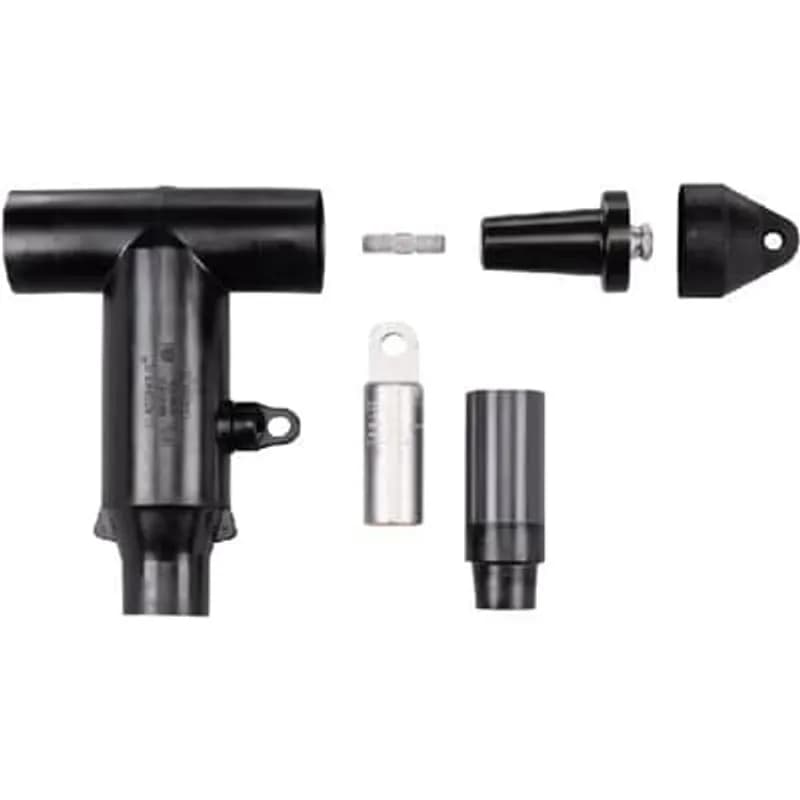

ABB Installation Products K676LR-M2400-S 900 Amp, 15/25kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug…
UPC: 075114426206
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 900 Amp continuous current rating with 15/25kV voltage class
- Integrated test point for safe voltage verification without cable disconnection
- Copper compression lug for 900 kcmil stranded or 1000 kcmil compacted solid conductors
- Cable insulation diameter range: 1.370" to 1.630"
- Cold shrinkable jacket shield for environmental sealing and simplified installation
Specifications
Amperage Rating | 900 A |
Application | Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus |
Color | Black |
Conductor Range | 900 kcmil , 1000 kcmil |
Connection | Compression |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Length | 13 in |
Length | 330.2 mm |
Material | Housing - EPDM-Rubber |
Special Features | Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and Equipment in a de-energized State. Non-Corrosive Capacitive Test Point. Cold Shrinkable Jacket Shield |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector with Test Point |
Voltage Rating | 15 to 25 kV |
Width | 10.36 in |
Width | 263.144 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
K676LR-N2400
900 Amp, Elbow Connector, with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter, 15/25KV, Cable Insulation Diameter 1.515 inch to 1.780 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 900 /Compacted Solid 1000 /mmSquared Compact 500.
K656LR-K2330
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Copper Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size Compressed/Stranded 500 or Compact/Solid 600 or mm2 Compact 250/300.
K655LR-NAC03
15/25kV, 600 Amp, Elbow Connector without Test Point - with Shear Bolt Connector. Includes Elbow Housing, Insulated Plug with Cap, Stud, Shearbolt Lug, Cable Adapter and Lubricant. Cable Insulation Diameter N - 1.550 to 1.780 inch. Tin-Plated Aluminum ShearBolt Lug, Conductor Size AC03 - 500 to 750 kcmil Stranded/Compressed/Solid/Compact.
K656CETP-L0330
25kv, 600 Amp Series, Deadbreak Combo-T. Connector Elbow with Integral 200 Amp Loadbreak Tap Plug with Test Point. Cable Insulation Diameter 1.180-1.465 inches (30.0-37.2 mm). Aluminum Conductor Material, Conductor Code 330 - 500 Stranded/Compressed or 600 Solid/Compact. No Sealing Kit.
274FLR3-C5250
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 17.2kV, Fuse Test Port - Two Capactive Test Ports, Large Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Copper Lug for Conductor size 2/0 AWG Stranded Compressed, 3/0 AWG Solid Compact
756LR-NAC04
35kV, 600 Amp, Elbow Connector with Test Point - with Shear Bolt Connector. Includes Elbow Housing, Insulated Plug with Cap, Stud, Shearbolt Lug, Cable Adapter and Lubricant. Cable Insulation Diameter N - 1.515 to 1.780 inch. Tin-Plated Aluminum ShearBolt Lug, Conductor Size AC04 - 750 to 1250 kcmil Stranded/Compressed/Solid/Compact.
756ETP-J0240-DRG-S
600 Amp, 35kV, Deadbreak, Window Op With Test Point, Elbow Tap Plug, Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG, Compressed Stranded 1/0 Compacted Solid 2/0. With Insulated Cap and Cold-Shrinkable Jacket Seal.
K656ETP-P0410-DRG
600 Amp, 25kV, Deadbreak Elbow, Test and Ground Replacement Kit with Test Point. Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1000 kcmil. With Insulated Cap.Frequently Asked Questions
Can the elbow be connected or disconnected while energized?
No, the elbow can be easily connected or disconnected using standard hand tools and equipment only in a de-energized state.
What is the K676LR elbow connector used for?
The K676LR provides fully shielded, dead-front submersible cable connections to high-voltage apparatus.
What voltage classes does the K676LR support?
The K676LR supports both 15kV and 28kV voltage classes.
What is the maximum continuous current rating?
The continuous current rating for both 15kV and 28kV voltage classes is 900 Amps.
What conductor sizes are compatible with the K676LR?
It is compatible with #2 AWG to 1250 kcmil for aluminum and copper conductors.
What cable insulation diameters are supported?
The K676LR supports cable insulation diameters ranging from 0.640 in to 1.935 in.
What is the maximum phase-to-ground operating voltage for 15kV?
For the 15kV voltage class, the maximum phase-to-ground operating voltage is 8.3kV.
What is the maximum phase-to-ground operating voltage for 28kV?
For the 28kV voltage class, the maximum phase-to-ground operating voltage is 16.2kV.
Can the elbow be connected or disconnected while energized?
No, the elbow can be easily connected or disconnected using standard hand tools and equipment only in a de-energized state.
What is the maximum phase-to-ground operating voltage for 28kV?
For the 28kV voltage class, the maximum phase-to-ground operating voltage is 16.2kV.
How to Install 655/675LR and K655/K675LR Deadbreak Elbow Connectors
This guide provides step-by-step instructions for installing 655/675LR and K655/K675LR Deadbreak Elbow Connectors. These connectors provide fully shielded, submersible deadfront cable connections for 15kV and 25kV class high voltage systems.
Estimated time: 2h
Tools needed:
Crimping tool, Wire brush (for aluminum conductors), Hotstick, Suitable voltage sensing device (for capacitive test points), Torque wrench
Supplies needed:
655/675LR or K655/K675LR Elbow connector, Cable adapter, Compression lug, Insulating plug (if used), Lubricant (silicone type recommended), Threaded stud (if mating part not equipped), Wire (at least No. 14 AWG Copper for grounding), Suitable grounding connector, Tape marker
- De-energize Apparatus and Position Cable
DANGER: Ensure all apparatus is de-energized before beginning installation. Assemble the cable in its final position with enough slack for elbow removal. For concentric neutral cable, unwind the neutral wires. Cut the cable 1-3/4 inches (45mm) from the centerline of the mating product.
- Prepare Cable Outer Surface and Layers
Clean the outer surface of the cable for a distance of 24 inches (610mm) or up to the bent back concentric neutral wires. Refer to the installation instructions (Step 3) for specific cable preparation, including removing the outer jacket (if applicable) and preparing the semi-con shield and cable insulation to the specified dimensions for your cable type (e.g., jacketed, non-jacketed, Unishield, lead sheath).
- Install Cable Adapter
Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4 inch (6mm) back. Thoroughly clean and then lubricate the cable insulation, working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.
- Prepare Conductor Length
Remove any protruding cable insulation by cutting it even with the end of the cable adapter. Exercise caution to avoid cutting or nicking the cable adapter or the conductor. The exposed conductor length must be between 4-1/4 inches and 4-9/16 inches (108mm-116mm). If not, redo the assembly.
- Crimp Compression Lug
For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor immediately before fully inserting it into the lug. Measure the 'Check Dimension' before crimping; it must be less than 6-3/8 inches. Crimp the compression lug according to the instructions supplied with the lug. Wipe off any excess inhibitor from the lug and cable adapter. After crimping, the distance from the end of the lug to the cable adapter must be between 6-3/8 inches and 7-1/8 inches (162mm-181mm). If not, redo the assembly.
- Install Elbow onto Cable Adapter
Lubricate the cable adapter and the inside of the elbow's cable entrance. Install the elbow onto the cable adapter until it cannot advance further. Verify that the cable adapter remains flush with the tape marker; reposition if necessary. Remove the tape marker.
- Prepare Mating Products
DANGER: Do not connect or disconnect mating products while energized, and do not energize while disconnected. Remove protective caps from both the elbow and the mating part. If the mating part lacks a stud, hand tighten the threaded stud supplied with the elbow into the mating part. Clean and lubricate both the elbow and the mating part with the supplied lubricant, ensuring surfaces remain clean.
- Connect Elbow to Mating Part
Push the elbow onto the mating part, carefully aligning the hole in the compression lug with the stud on the mating part.
- Connect Opposite Mating Part (if applicable)
If connecting to an opposite mating part, clean and lubricate its surface. Insert the mating part into the elbow, engage the threads, and hand tighten. Torque the mating part according to the specific instructions provided with that component.
- Install Insulating Plug (if used)
If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap. Place the cap onto the elbow and push down firmly until it snaps into place.
- Ground the Cable Shield
Insert one end of a wire (at least No. 14 AWG Copper equivalent) through the grounding eye and twist to form a small loop, taking care not to damage the eye. Connect this wire to ground using a suitable connector. The cable shield must be grounded; follow instructions for any grounding device used, or employ an alternate grounding method. It is also recommended to waterproof the cable jacket at this point to prevent moisture ingress.
- Perform Final Torque Check (for L-Kits)
CAUTION: When constructing 600-amp L-Kits, ensure each component is tightened to the specified torque as per the instructions provided with the L-Kit.
- Perform Voltage Test
To determine if the circuit is energized, use a hotstick to remove the test point cap, peeling it off at an angle. WARNING: The voltage test point is a capacitance device, not directly connected to the conductor. Do not use conventional voltage measuring equipment; use a suitable sensing device designed for capacitive test points. Treat the elbow as energized until a 'no voltage' indication is confirmed by other means to prevent serious injury. After testing, clean and lubricate the inside surface of the cap with silicone lubricant and replace it on the test point.
