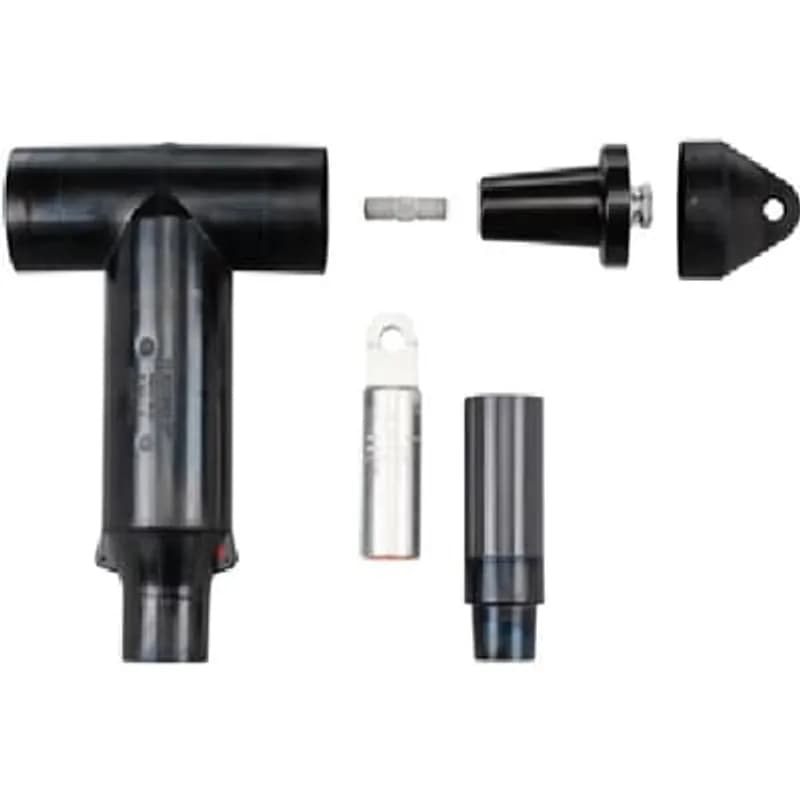

ABB Installation Products K675LR-K5330 15/25kV, 600 Amp, Deadbreak Elbow with Test Point. Cable Insulation Diameter 1.090-1.310…
UPC: 075114339230
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25kV voltage class with 600 Amp continuous current rating
- Built-in test point for safe voltage verification without system de-energization
- Accommodates cable insulation diameters 1.090-1.310 inches (27.686-33.274mm)
- Bi-metal lug compatible with 500 kcmil stranded/compressed or 600 kcmil solid/compact conductors
- Hot-stick operation enabled for safe installation/removal under load conditions
- Deadbreak design enables hot-stick operation for safe installation/removal under load
Specifications
Amperage Rating | 900 A |
Application | 15/25kV, 900 Amp, Deadbreak Connector |
Color | Black |
Conductor Range | 500 kcmil , 600 kcmil |
Connection | Compression |
Connection Type | Deadbreak Elbow with Test Point |
Current Rating | 600 A |
Environmental Conditions | All Weather Conditions, Fully Submersible |
Insulation | True |
Material | Bi-Metal Lug, Cable Insulation |
Material | Housing - EPDM-Rubber |
Series | K675LR |
Size | Cable Insulation Diameter 1.090-1.310 inches (27.686-33.274mm), 500 kcmil Stranded/Compressed or 600 kcmil Solid/Compact |
Size | 10.36 inch X 13.00 inch from bottom to centerline of bushing, 3.38 inch Diameter |
Special Features | Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector |
Voltage Rating | 15 to 25 kV |
Voltage Rating | 15/25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
K655LR-J0330
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size kcmil Compressed/Stranded 500 or Compact/Solid 600 or mm2 Compact 250/300.
K656LR-K2260
1525kV, 600 Amp, Deadbreak Elbow with Test Point. Cable Insulation Diameter 1.090-1.310 inches (27.686-33.274mm). Copper Lug, 3/0 Stranded/Compressed or 4/0 Solid/Compact or 95 mmsq.K656LR-M0410-SG2
15/25kv, 600 Amp, Deadbreak Elbow with Test Point and Sealing Kit. Cable Insulation Diameter 1.370-1.630 inch (34.798-41.402mm). Universal Aluminum Compression Lug. 410 Wire Size - 1000 kcmil Stranded/Compressed. Sealing Kit SG2 - Cold-Shrinkable Seal with Copper Rod and Constant Force Spring.
K655LR-LM0380-S
15/25kV, 600 Amp, Deadbreak Elbow Connector without Test Point, with Seal kit. Cable Insulation Diameter 1.280 - 1.430 inches (32.512-32.322mm). Aluminum Compression Lug. Conductor Size 380 - 700/750 kcmil Stranded/Compressed or 900 kcmil Solid/Compact.K656LR-K2260-SG3
1525kV, 600 Amp, Deadbreak Elbow with Test Point. Cable Insulation Diameter 1.090-1.310 inches (27.686-33.274mm). Copper Lug, 3/0 Stranded/Compressed or 4/0 Solid/Compact or 95 mmsq. SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.K655LR-K0270-S
15/25kV, 600 Amp, Deadbreak Elbow Connector without Test Point, with Seal kit. Cable Insulation Diameter 1.090 - 1.310 inches (27.686-33.274mm). Aluminum Compression Lug. Conductor Size 270 - 4/0 Stranded/Compressed or 250 kcmil Solid/Compact.
756LR-M2330
35kV, 600 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.370-1.630 inches (34.798-41.402mm), Copper Lug, Conductor Size 330 - 500kcmil Stranded/Compressed, 600kcmil Solid/Compact. Kit Includes Elbow Connector Housing, Stud, Insulated Plug with Cap, Cable Adapter, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 12.28 x 13.93 inches, 3.37 and 3.83 inch diameters.K656LR-K0330-SG3
15/25kV, 600 Amp, Deadbreak Elbow Connector without Test Point, with Seal kit. Cable Insulation Diameter 1.090 - 1.310 inches (27.686-33.274mm). Aluminum Compression Lug. Conductor Size 330 - 500 kcmil Stranded/Compressed or 600 kcmil Solid/Compact. SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.Frequently Asked Questions
What is the UNSPSC code for this product?
The UNSPSC code for the K675LR-K5330 is 39121421.
What voltage rating does the K675LR-K5330 support?
The K675LR-K5330 supports a voltage rating of 15/25kV, suitable for medium-voltage applications.
What is the current rating of this deadbreak elbow?
The deadbreak elbow has a continuous current rating of 600 Amps.
What conductor sizes are compatible with the bi-metal lug?
The bi-metal lug is compatible with 500 kcmil stranded/compressed or 600 kcmil solid/compact conductors.
What cable insulation diameter range does this elbow accommodate?
The elbow accommodates cable insulation diameters between 1.090-1.310 inches (27.686-33.274mm).
Does the K675LR-K5330 include a test point?
Yes, the elbow includes a built-in test point for safe voltage verification without de-energizing the system.
Can this elbow be installed or removed under load?
Yes, the deadbreak design allows for hot-stick operation, enabling safe installation or removal under load conditions.
How to Install 655/675LR and K655/K675LR Deadbreak Elbow Connectors
This guide provides detailed instructions for the safe installation and setup of 600-ampere or 900-ampere deadbreak elbow connectors on 15kV and 25kV class systems. All apparatus must be de-energized during installation. This product should only be installed by competent personnel trained in high voltage electrical equipment safety.
Estimated time: 2h
Tools needed:
Wire strippers, Crimping tool, Wire brush, Hotstick, Voltage sensing device (for capacitive test points), Torque wrench, Utility knife
Supplies needed:
655/675LR or K655/K675LR Elbow Connector, Cable Adapter, Compression Lug, Insulating Plug (if needed), Silicone Lubricant, Threaded Stud, Cable (appropriate type), Tape marker, No. 14 AWG Copper equivalent grounding wire, Grounding connector, HV insulated cap(s) or connector(s), Waterproofing material
- Prepare Cable for Installation
Assemble the cable in its final position with enough slack to allow for elbow removal. For concentric neutral cable, unwind the neutral wires. Cut the cable 1-3/4” (45mm) from the centerline of the mating product.
- Clean Cable Surface
Clean the outer surface of the cable for a distance of 24” (610mm) or up to the bent back concentric neutral wires.
- Perform Cable Preparation
Follow the specific cable preparation instructions (A, B, or C) that apply to your cable type (e.g., Unishield, Lead Sheath, Jacketed, Non-Jacketed). This involves removing the outer jacket (if applicable) and preparing the cable insulation and shield as shown in the diagrams.
- Install and Lubricate Cable Adapter
Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4” (6mm) back. Thoroughly clean and then lubricate the cable insulation, working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.
- Trim Cable Insulation and Verify Conductor Length
Remove the protruding cable insulation by cutting it even with the end of the cable adapter. Do not cut or nick the cable adapter or the conductor. The exposed conductor length must be between 4-1/4” and 4-9/16” (108mm-116mm). If not, redo the assembly.
- Install and Crimp Compression Lug
For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor and immediately fully insert it. Measure the “Check Dimension” before crimping; it must be less than 6-3/8”. Crimp the compression lug according to the supplied instructions. Wipe off all excess inhibitor. After crimping, the distance from the lug end to the cable adapter must be between 6-3/8” to 7-1/8” (162mm-181mm). If not, redo the assembly.
- Lubricate and Install Elbow
Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further. Ensure the cable adapter remains flush with the tape marker; reposition if necessary. Remove the tape marker.
- Prepare Mating Apparatus
Remove protective caps from both the elbow and the mating part. Hand tighten the threaded stud (supplied with the elbow) into the mating part if it's not already equipped with one. Clean and lubricate both the elbow and the mating part with the supplied lubricant, ensuring surfaces remain clean. DO NOT CONNECT OR DISCONNECT MATING PRODUCTS WHILE ENERGIZED. DO NOT ENERGIZED WHILE DISCONNECTED.
- Connect Elbow to Mating Part
Push the elbow onto the mating part, carefully aligning the hole in the compression lug with the stud on the mating part.
- Connect Second Mating Part
Clean and lubricate the mating part for the opposite end of the elbow. Insert this mating part into the elbow. Engage the threads and hand tighten. Torque the mating part according to its specific instructions.
- Install Insulating Plug and Voltage Detection Cap
If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap. Place it on the elbow and push down hard until the cap snaps into place.
- Ground Cable Shield and Waterproof Jacket
Insert one end of a No. 14 AWG Copper equivalent wire through the grounding eye and twist to form a small loop, taking care not to damage the eye. Connect this wire to ground using a suitable connector. The cable shield must be grounded either via a grounding device (following its instructions) or an alternate method. It is also recommended to waterproof the cable jacket at this point to prevent moisture ingress. CAUTION: When constructing 600amp L-Kits, ensure each component is tightened to the specified torque per instructions.
- Perform Voltage Test
Use the integral capacitance test point to determine if the circuit is energized. Remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The test point is a capacitance device, not directly connected to the conductor. Do not use conventional voltage measuring equipment. Use a suitable sensing device designed for capacitive test points. Treat the elbow as energized until “no voltage” is confirmed by other means to prevent serious injury. After testing, clean and lubricate the cap and replace it.
