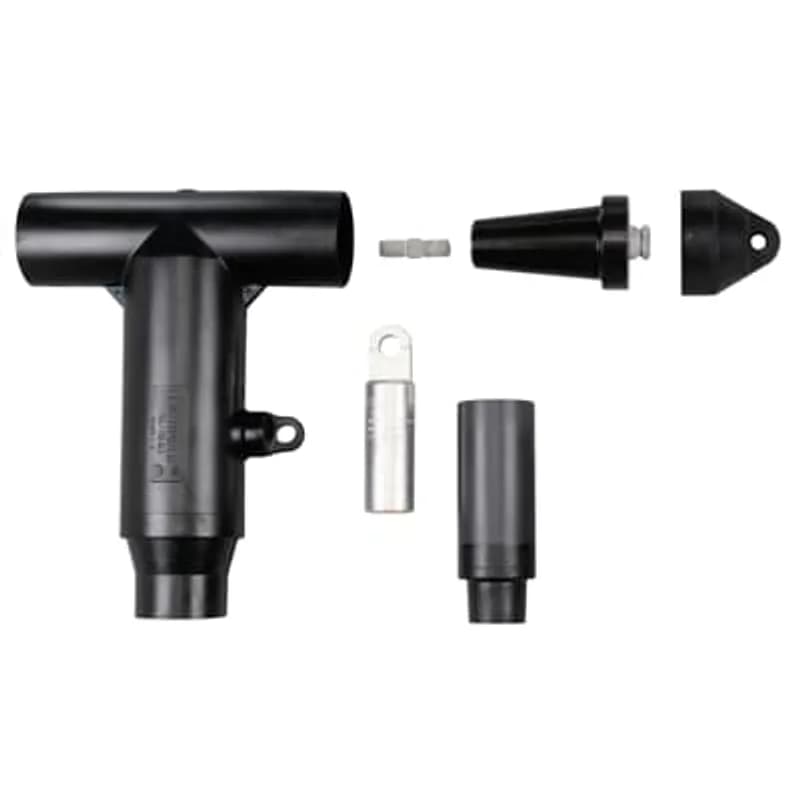

ABB Installation Products 756LR-M2330 35kV, 600 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter…
UPC: 075114345651
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 35kV, 600 Amp Deadbreak Elbow Connector
- Integrated Test Point for Circuit Testing
- Copper Lug for 330-500 kcmil Stranded/Compressed Conductors
- Accommodates 1.370-1.630 inch Cable Insulation Diameter
- Complete Kit Includes Housing, Stud, Plug, Adapter, Lubricant, and Instructions
Specifications
Amperage Rating | 600 A |
Application | 15/25/35kV, 600 Amps |
Color | Black |
Conductor Range | 500 kcmil , 600 kcmil |
Connection | Compression |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Housing - EPDM-Rubber |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector with Test Point |
Voltage Rating | 35 kV |
Width | 12.28 in |
Width | 311.912 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 8.8300 L |
Package Weight (Metric) | 4.0050 kg |
755LR-N5330
600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.515 inch to 1.780 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.
K656LR-K0330-SG3
15/25kV, 600 Amp, Deadbreak Elbow Connector without Test Point, with Seal kit. Cable Insulation Diameter 1.090 - 1.310 inches (27.686-33.274mm). Aluminum Compression Lug. Conductor Size 330 - 500 kcmil Stranded/Compressed or 600 kcmil Solid/Compact. SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
K656CETP-H0230
25kv, 600 Amp Series, Deadbreak Combo-T. Connector Elbow with Integral 200 Amp Loadbreak Tap Plug with Test Point. Cable Insulation Diameter 0.850-1.050 inches (21.6-26.7 mm). Aluminum Conductor Material, Conductor Code 230 - #1 Stranded/Compressed or 1/0 Solid/Compact. No Sealing Kit.K656LR-N2400
15/25kV, Deadbreak Elbow Connector with Test Point, 600 Amps, No Sealing Kit. Cable Insulation Diameter 1.550 to 1.780 inches. Copper Connector. Wire Size 400 - 900 kcmil Stranded/Compressed or 1000 kcmil Solid/Compact. 10.36 inches wide, 13.00 inches from bottom edge to center of bushing insert. 3.38 inch Diameter. Includes Elbow Housing, Lug, Stud, Insulated Plug with Cap, Lubricant Tube, Cable Adapter, Installation Instructions and Crimp Chart.
676CETP-J2320-DRG
Combo-T Integral Separable Connector, 900 Amps, Combo-T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit with Test Point. Cable Adapter Sizing-Cable Insulation Diameter Range .980-1.180 inch ( 24.9-30.0mm), Copper Connector, Connector Size 320 - 450 kcmil Stranded/Compressed, 500 kcmil Solid/Compact. DRG - with Insulated Cap.
655CETPNG0230S
600 Amp, 15kV, Combo T Elbow Reducing Tap Plug without Stud, with Cable Adapter, Lug, No Test Point, Aluminum, Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. With Shrink-Fit Jacket Seal Kit.655CETPNM0380S
600 Amp, 15kV, Combo T Elbow Reducing Tap Plug without Stud, with Cable Adapter, Lug, No Test Point, Aluminum, Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900. With Shrink-Fit Jacket Seal Kit.655CETPNN0410S
600 Amp, 15kV, Combo T Elbow Reducing Tap Plug without Stud, with Cable Adapter, Lug, No Test Point, Aluminum, Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size AWG or kcmil, Compressed Stranded 1000. With Shrink-Fit Jacket Seal Kit.Frequently Asked Questions
What is the momentary current rating for the 756LR?
The 756LR has a 25kA Symmetrical 10 Cycles Momentary rating.
What is the corona extinction voltage for the 756LR?
The corona extinction voltage for the 756LR is 26kV AC at 3pC sensitivity.
What is the DC 15-minute withstand voltage for the elbow?
The DC 15-minute withstand voltage for the 756LR is 103kV.
What is the AC one-minute withstand voltage for the elbow?
The AC one-minute withstand voltage for the 756LR is 50kV.
What is the impulse withstand rating (BIL) for the 756LR?
The 756LR has a 150kV BIL (Basic Impulse Level) impulse withstand rating.
Is the 756LR elbow suitable for submersible applications?
Yes, the 756LR features a fully shielded, fully submersible molded rubber housing.
What standards does the 756LR elbow meet?
The 756LR elbow connector meets ANSI/IEEE Standard 386, Latest Revision.
What is the insulation diameter range for compatible cables?
The 756LR elbow supports cables with insulation diameters ranging from 0.760 inches to 2.120 inches.
What is the continuous current rating of the 756LR elbow?
The 756LR elbow connector has a continuous current rating of 600 Amps.
What conductor sizes are compatible with the 756LR elbow?
The 756LR is compatible with conductor sizes from #2 AWG to 1250 kcmil for both aluminum and copper conductors.
How to Install 756LR Deadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe installation and wiring of 756LR Deadbreak Elbow Connectors on 35kV class systems, ensuring fully shielded and submersible connections.
Estimated time: 2h
Tools needed:
Wire brush, Crimping tool, Hotstick, Suitable voltage sensing device, Wire strippers, Cutting tools, Torque wrench, Cleaning cloths
Supplies needed:
756LR Elbow, Cable Adapter, Compression Lug, Insulating Plug (optional), Crimp connector, Lubricant, Threaded Stud (if not on mating part), Grounding wire (min #14 AWG Copper), Suitable grounding connector, Waterproofing material
- Prepare for Installation and De-energize Apparatus
Ensure all apparatus in the work area are de-energized before beginning installation. Inspect all components for damage, proper rating, and compatibility with mating parts. Read the entire installation instructions thoroughly and gather all required tools and supplies. Maintain cleanliness throughout the procedure. Failure to de-energize can result in serious or fatal injury.
- Position and Clean the Cable
Position the cable in its final assembled location, ensuring enough slack to allow for elbow removal. Cut the cable 1-3/4 inches (45mm) from the centerline of the mating product. Clean the outer jacket of the cable for a distance of 24 inches (610mm).
- Prepare the Cable End
Follow the specific cable preparation instructions for your cable type (e.g., UNISHIELD, Lead Sheath, Jacketed, Non-Jacketed). This typically involves removing the outer jacket (if applicable) and preparing the cable insulation and semi-con shield according to the provided diagrams and dimensions. Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4 inch (6mm) back. Thoroughly clean and lubricate the cable insulation, working towards the semi-con shield.
- Install Cable Adapter and Prepare Conductor
Install the cable adapter, small end first, onto the lubricated cable insulation until it is flush with the edge of the tape marker. Carefully remove any protruding cable insulation by cutting it even with the end of the cable adapter. Ensure not to cut or nick the cable adapter or the conductor. The exposed conductor length must be between 4-3/8 inches to 4-3/4 inches (111mm-121mm).
- Crimp the Compression Lug
For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor immediately before fully inserting it into the compression lug. Measure the 'Check Dimension' before crimping; it must be less than 7 inches (178mm). Crimp the compression lug according to the instructions supplied with the lug. After crimping, wipe all excess inhibitor from the compression lug and cable adapter surface. The distance from the end of the compression lug to the cable adapter must be between 6-7/8 inches to 7-5/8 inches (175mm-194mm).
- Install the Elbow
Lubricate the cable adapter and the inside of the elbow's cable entrance. Install the elbow onto the cable adapter, pushing until it cannot advance further. Verify that the cable adapter remains flush with the tape marker; reposition if necessary. Remove the tape marker.
- Connect to Mating Product
Remove any protective caps from both the elbow and the mating part. If the mating part is not equipped with a stud, hand tighten the threaded stud supplied with the elbow into the mating part. Clean and lubricate both the elbow and the mating part with the supplied lubricant, keeping surfaces clean. Push the elbow onto the mating part, carefully aligning the hole in the compression lug with the stud on the mating part. DO NOT CONNECT OR DISCONNECT MATING PRODUCTS WHILE ENERGIZED. DO NOT ENERGIZE WHILE DISCONNECTED.
- Insert Opposite Mating Part (if applicable)
If connecting an opposite mating part, clean and lubricate it. Insert the mating part into the elbow, engage the threads, and hand tighten. Torque the mating part according to the instructions supplied with that specific mating part. For 600-amp L-Kits, ensure each component is tightened to its specified torque.
- Install Insulating Plug and Ground the Cable Shield
If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap and place it on the elbow, pushing down hard until it snaps into place. Insert one end of a grounding wire (with ampacity at least equivalent to No. 14 AWG Copper) through the grounding eye and twist to form a small loop without damaging the eye. Connect this wire to ground using a suitable connector. The cable shield must be grounded; follow instructions supplied with your grounding device or use an alternate method. It is also recommended to waterproof the cable jacket at this point to prevent moisture ingress.
- Perform Voltage Test (if applicable)
If the connector is equipped with an integral capacitance test point, use it to determine if the circuit is energized. Remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device and is NOT directly connected to the conductor. Do not use conventional voltage measuring equipment. Use a suitable sensing device designed for capacitive test points. Contamination, moisture, or incorrect equipment can provide a false 'no voltage' indication. Treat the elbow as energized until the 'no voltage' indication is confirmed by other means to prevent serious or fatal injury. After testing, clean and lubricate the inside surface of the cap with silicone lubricant and replace it on the test point.
