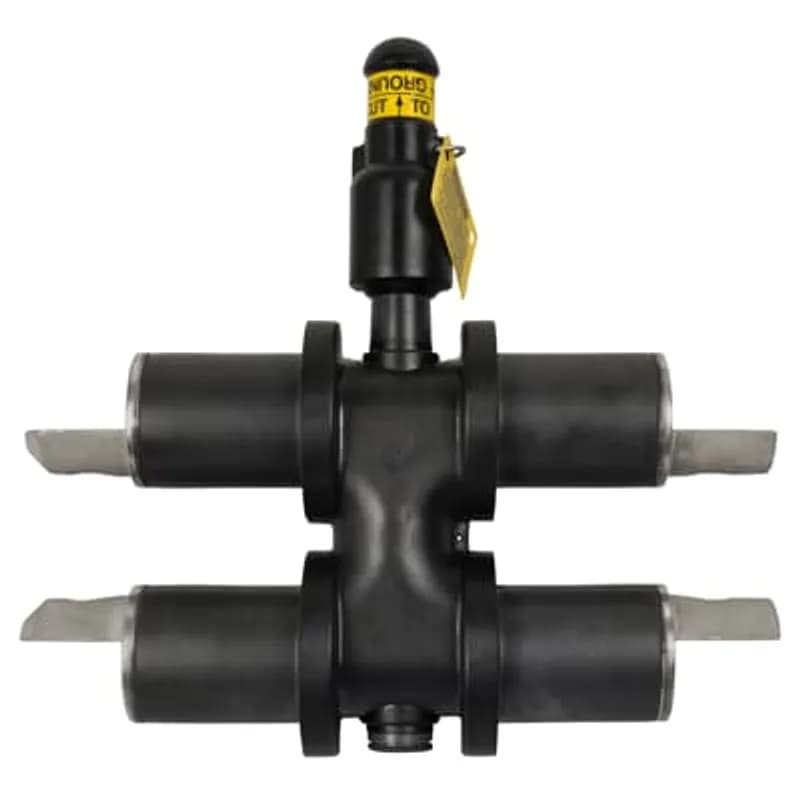

ABB Installation Products K656CHSL-BUS 15/25kV, 600 Amp, Deadbreak, Compact H Spiking Aid BUS Bar with Test Point
UPC: 783786556656
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25 kV Voltage Rating
- 600 Amp Current Rating
- Deadbreak Connection Type
- Compact H Spiking Aid Design
- Integrated Test Point for Diagnostics
Specifications
Amperage Rating | 600 A |
Application | Used to Join Cables in a Disconnectable 4-Way Joint, Suitable for Small Vaults and Manholes Due to its Compact Size |
Color | Black |
Environmental Conditions | Fully Submersible |
Insulation | True |
Length | 9.75 in |
Length | 247.65 mm |
Material | Housing - EPDM-Rubber |
Special Features | Includes Integral Capacitive Test Point |
Standard | ANSI/IEEE Standard 386 |
Type | Deakbreak Compact H Spiking Aid BUS with Test Point |
Voltage Rating | 15 to 28 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
168FLR1-B5220
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit
K655RETP-N0330-DRG
600 Amp, 25kV, Test and Ground Replacement Connector Kit with Insulating Cap. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.
K675LR-L-2380
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.K675LR-J2250
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 0.980 inch to 1.180 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 2/0 /Compacted Solid 3/0 /mmSquared Compact 70.K675LR-M-2380
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.K675LR-M2330
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.
K656ETP-H5260-S-TL
600 Amp, 25kV, Deadbreak Elbow, Window Op Connector Kit with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 3/0 /Compacted Solid 4/0 /mmSquared Compact 95. Cold-Shrinkable Jacket Seal Included. With Sheild Adapter.
K656L2-L0330
600 Amp, 15/25kV, 2-Way L-Kit, with Test Point. Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.Frequently Asked Questions
What are the voltage ratings for the 25kV class?
For the 25kV class, the maximum phase-to-ground operating voltage is 16.2kV and phase-to-phase is 28kV. It has a 140kV BIL impulse withstand.
What are the voltage ratings for the 15kV class?
For the 15kV class, the maximum phase-to-ground operating voltage is 8.3kV and phase-to-phase is 14.4kV. It has a 95kV BIL impulse withstand.
What is the K656CHSL-BUS product?
It is a 15/25kV 600A Deadbreak Spiking “H” BUS with a test point. It functions as a modular 4-way disconnectable cable joint.
What is the continuous current rating?
The continuous current rating for both 15kV and 25kV voltage classes is 600 Amps.
What is the momentary current rating?
The momentary current rating for both 15kV and 25kV voltage classes is 25kA Symmetrical for 10 Cycles.
What is the benefit of the Spiking Aid feature?
The Spiking Aid eliminates the need to spike the cable, which eliminates the need to splice or replace the cable. This reduces outage time and cost.
What standard does the K656CHSL-BUS meet?
The K656CHSL-BUS meets ANSI/IEEE Standard 386, Latest Revision.
What components are included in the K656CHSL-BUS kit?
Each kit contains one 4-Way Bus Bar K656CHSL-BUS, 12 units of Lubricant 82-08, and one Installation Instruction IS-1295.
Does the product include a test point?
Yes, the K656CHSL-BUS includes an integral capacitive test point.
What is the benefit of the Spiking Aid feature?
The Spiking Aid eliminates the need to spike the cable, which eliminates the need to splice or replace the cable. This reduces outage time and cost.
How to Install the K656CHSL-BUS Disconnectable Splice with Sacrificial Cap
This guide provides step-by-step instructions for installing the K656CHSL-BUS disconnectable splice, including cable preparation, assembly, and grounding procedures. Ensure all apparatus are de-energized before beginning installation.
Estimated time: 2h
Tools needed:
Cable cutting tool, Wire strippers, Hex wrench, Wire brush (for aluminum conductors), Crimping tool, Torque wrench with 15/16 inch socket, Assembly tool (e.g., 600YADT-2 or 600RRT-2), Cleaning rags
Supplies needed:
K656CHSL-BUS Splice Kit (includes splice, sacrificial cap, lubricant), Cable (concentric neutral or flat metallic tape shielded), Crimp connectors, Inhibitor (for aluminum conductors), Electrical tape, Approved safety solvent, No. 14 AWG copper grounding wire, ECS grounding device (if applicable)
- De-energize and Inspect Components
Before starting, ensure all apparatus are de-energized. Inspect all kit contents for completeness and damage. Verify all components are compatible with the cable and mating products. Read the entire instructions and have all required tools and supplies ready, maintaining cleanliness throughout the procedure.
- Prepare the Cable End and Slide Components
Cut the cable end square and wipe the outer jacket clean 38 inches from the cut end. If using an ECS grounding device, slide the ECS tube onto the cable 38 inches from the cut end. Slide the receptacle housing onto the cable 30 inches from the cut end.
- Prepare Jacketed Concentric Neutral Cable (Part A)
From the cable end, measure 13-3/4 inches and remove the cable jacket with a straight, smooth, square cut, taking care not to damage neutral wires. Bend the neutral wires back. From the cable end, measure 10-1/4 inches and remove the insulation shield (semi-con) with a straight, smooth cut, ensuring not to cut or nick the insulation. At 1 inch from the end of the semi-con shield, wrap two turns of tape as a marker. Bevel the end of the insulation at a 45-degree angle, approximately 1/4 inch back. Thoroughly clean the insulation with an approved safety solvent, wiping from the cable end toward the outer jacket.
- Install Cable Adapter and Retaining Rings
Apply lubricant sparingly along the cable as shown in the diagram (Part A, Step 5 of the original document) and lubricate the inside of the cable adapter. Slide the adapter, small end first, over the cable with a twisting motion until its end is flush with the tape marker. Remove any protruding cable insulation by cutting it even with the end of the cable adapter, ensuring the exposed conductor is 4-3/4 to 5 inches. Do not cut or nick the cable adapter or conductor. Assemble aluminum retaining rings over the conductor, snugging firmly against the cable adapter. Hand tighten the socket head screw with the provided hex wrench. Confirm the exposed conductor is 4-3/8 to 4-3/4 inches.
- Crimp the Connector
Remove the protective cap from the crimp connector. If using aluminum cable, wire brush the conductor and immediately insert it into the crimp connector containing inhibitor, ensuring full insertion into the barrel. Measure the distance from the end of the connector to the holding collar; if over 7 inches, recheck previous work. Position all components, ensuring bolt holes in the crimp connectors align with the mating part. Crimp the connectors according to their instructions, rotating each crimp 90 or 180 degrees. After crimping, re-measure the distance from the end of the connector to the holding collar; if over 7 inches, recheck previous work.
- Assemble and Torque the Splice
Assemble the flat washer against the spade contact, followed by the Belleville washer (concave side down), and then the hex-head bolt. Hand tighten all bolts. The splice and cables are now in their final positions; do not move or reposition any part after tightening. Using a torque wrench with a 15/16 inch socket, tighten all bolts to 50 to 60 ft. lbs.
- Install Receptacle Housing
Apply supplied or ELASTIMOLD approved lubricant generously to the outside of the cable adapter, the splice section, and the inside mating surface of the receptacle housing. Slide the receptacle housing over the cable adapter and up to the final position. Insert the supplied nylon venting rod.
- Complete Grounding
Complete the installation of the ECS grounding device following its specific instructions. Connect a short length of No. 14 AWG copper wire (or equivalent) to the grounding eyes of the housings. Make a small loop and twist tightly, taking care not to damage the eye. Attach this wire directly to the system's ground.
- Assemble the Sacrificial Cap
Remove the protective shipping cap from the splice. Clean the male interface and lubricate both the interface and the inside of the new sacrificial cap with the supplied lubricant. Install the new sacrificial cap by rotating it clockwise 9 to 10 turns until it stops turning. No additional torque is required. Ensure the gap between the cap and the shoulder of the splice is 1/8 inch or less. Attach a No. 14 AWG wire through the grounding eye of the cap and tighten by twisting, then attach directly to the system's ground, keeping the wire snug.
