ABB - Installation Products K655YDSR-G0240 - 600 Amp, 15/25kV, Direct Test Straight Receptacle Elbow. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 2/0 AWG or Compacted Solid 250 kcmil.

ABB Installation Products K655YDSR-G0240 600 Amp, 15/25kV, Direct Test Straight Receptacle Elbow. Cable Insulation Diameter 0.760…

UPC: 075114432184


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

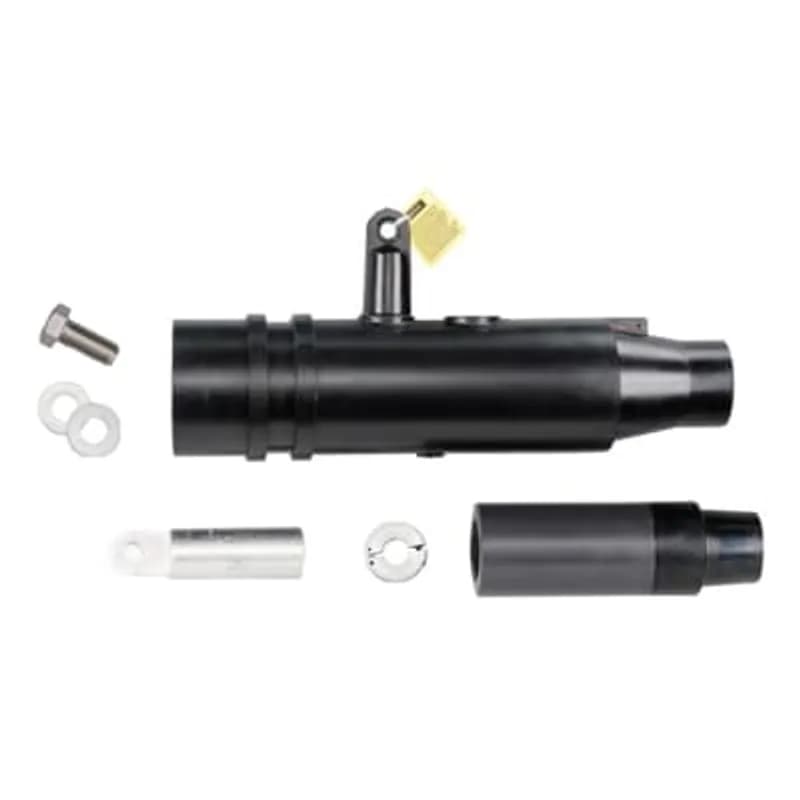

The ABB K655YDSR-G0240 is a 600 Amp, 15/25kV deadbreak direct test straight receptacle elbow designed for medium-voltage cable terminations in industrial and utility applications. This product provides a fully shielded, submersible connection for high-voltage systems, meeting ANSI/IEEE Standard 386 requirements. Key specifications include a continuous current rating of 600A and momentary withstand of 25kA symmetrical for 10 cycles. The unit supports cable insulation diameters from 0.760 inch to 0.950 inch, accommodating a range of medium-voltage cables. The aluminum compression lug accepts 2/0 AWG compressed stranded or 250 kcmil compacted solid conductors, ensuring reliable electrical and mechanical connections. The direct test straight receptacle incorporates ABB’s Elastimold® Direct Test System (EDTS), featuring an insulated port for isolation, testing, and grounding without additional adapters. This allows for direct conductor voltage testing when the circuit is de-energized, reducing installation time and complexity. The fully shielded, molded rubber housing is 100% peroxide-cured, providing durability in harsh environments. Common applications include switchgear, transformers, and cable distribution systems where reliable medium-voltage connections are critical. The K655YDSR-G0240 is part of ABB’s Installation Products line, offering durable solutions for power distribution networks. Optional accessories enable visible external separation, bypass, isolation, dead-ending, grounding, and testing, as well as adding taps, surge arrestors, and circuit protection. Voltage ratings: 15kV (8.3kV phase-to-ground, 14.4kV phase-to-phase) and 25kV (16.2kV phase-to-ground, 28kV phase-to-phase). Impulse withstand ratings are 95kV BIL for 15kV and 140kV BIL for 25kV. The product is designed for continuous operation and meets stringent electrical performance standards.
  • 600 Amp, 15/25kV deadbreak straight receptacle elbow
  • Cable insulation diameter range: 0.760-0.950 inch
  • Aluminum compression lug for 2/0 AWG or 250 kcmil conductors
  • Incorporates Elastimold® Direct Test System (EDTS) for isolation and testing
  • Fully shielded, submersible molded rubber housing for harsh environments

Specifications

Amperage Rating
600 A
Application
15/25kV, 600 Amps
Color
Black
Conductor Range
2/0 AWG , 250 kcmil
Connection
Compression
Environmental Conditions
All Weather Conditions, Fully Submersible
Insulation
True
Material
Housing
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
-40 F
Temperature Rating, Maximum
-40 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Deadbreak Direct Test Straight
Voltage Rating
15 to 25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit

168FLR1-B5220

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Shear Bolt. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size Compressed/Stranded/Compact/Solid 3/0 AWG to 500 kcmil. No Sealing Kit.

K656LR-LAC02

15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Shear Bolt. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size Compressed/Stranded/Compact/Solid 3/0 AWG to 500 kcmil. No Sealing Kit.
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Large Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal, Conductor size 250 - 2/0 AWG Stranded/Compressed, 3/0 AWG Solid/Compact.

168FLR3-B5250

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Large Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal, Conductor size 250 - 2/0 AWG Stranded/Compressed, 3/0 AWG Solid/Compact.
15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Window OP Kit, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Tin Plated Aluminum ShearBolt Connector. Conductor Size 500 kcmil Stranded/Compressed/Compact to 750 kcmil Stranded/Compressed/Compact.

655ETP-LAC03-DRG

15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Window OP Kit, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Tin Plated Aluminum ShearBolt Connector. Conductor Size 500 kcmil Stranded/Compressed/Compact to 750 kcmil Stranded/Compressed/Compact.
25kV, 600 Amp Elbow Splice. 15-25kV, 600 Amp, Deadbreak, 4-Way L-Kit without Test Point, without Seal. 38.18 inch (969.8mm). Cable Insulation Diameter 1.370 - 1.630 inches.

K655L4

25kV, 600 Amp Elbow Splice. 15-25kV, 600 Amp, Deadbreak, 4-Way L-Kit without Test Point, without Seal. 38.18 inch (969.8mm). Cable Insulation Diameter 1.370 - 1.630 inches.
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Window-Op Connector Kit. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 1000. Comes with Insulated Cap.

656ETP-N0410-DRG

600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Window-Op Connector Kit. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 1000. Comes with Insulated Cap.
25/28kV, 200 Amp, Loadbreak Jacket Seal Elbow Connector, .635 inch - .905 inch Cable Insulation Diameter, #1 Stranded Wire Size, 1/0 solid/Compact Wire Size, Bi-Metal Compression Lug.

261LRJS-B5230

25/28kV, 200 Amp, Loadbreak Jacket Seal Elbow Connector, .635 inch - .905 inch Cable Insulation Diameter, #1 Stranded Wire Size, 1/0 solid/Compact Wire Size, Bi-Metal Compression Lug.
FloodSeal Street Light Connector, Contains Oxide Inhibiting Compound HM 58, Kit Contains One (1) Aluminum Mechanical Splice, #14 - #2, Dual Rated Connector Copper and Aluminum 75 Degree C. Two Screws, One CS-2277 Rocket, One FSS 350 Cap without Liner, One FSS350 Liner, and Instruction Sheet.

SMSS 66 KIT

FloodSeal Street Light Connector, Contains Oxide Inhibiting Compound HM 58, Kit Contains One (1) Aluminum Mechanical Splice, #14 - #2, Dual Rated Connector Copper and Aluminum 75 Degree C. Two Screws, One CS-2277 Rocket, One FSS 350 Cap without Liner, One FSS350 Liner, and Instruction Sheet.

Frequently Asked Questions

Is the K655YDSR housing submersible?

Yes, the K655YDSR features a fully shielded, fully submersible molded rubber housing.

What is the max operating voltage for 25kV class?

For the 25kV voltage class, the maximum phase-to-ground operating voltage is 16.2kV.

What is the continuous current rating?

The continuous current rating for both 15kV and 25kV voltage classes is 600 Amp.

What is the max operating voltage for 15kV class?

For the 15kV voltage class, the maximum phase-to-ground operating voltage is 8.3kV.

What standard does the K655YDSR meet?

The K655YDSR meets ANSI/IEEE Standard 386, Latest Revision.

What insulation diameters does the K655YDSR support?

It supports insulation diameters from 0.640 inches to 1.935 inches.

What conductor sizes are compatible with K655YDSR?

The K655YDSR supports #2 AWG to 1250 kcmil aluminum and copper conductors.

What is the K655YDSR designed for?

The K655YDSR provides a fully shielded, submersible cable connection on 15/25kV high-voltage “I”, “Y”, or “H” Bus.

What is the max operating voltage for 25kV class?

For the 25kV voltage class, the maximum phase-to-ground operating voltage is 16.2kV.

What insulation diameters does the K655YDSR support?

It supports insulation diameters from 0.640 inches to 1.935 inches.

How to Install K655/K656 Series Deadbreak Receptacles

This guide provides detailed instructions for the safe installation and wiring of K655/K656 Series Deadbreak Receptacles, including cable preparation, crimping, and final assembly for 15kV and 25kV applications.

Estimated time: 2h

Tools needed:

Hex wrench, Torque wrench with 15/16" socket, Wire brush (for aluminum cable), Crimping tool, 650ATY assembly tool OR 600RRT assembly tool, Rag, Approved safety solvent, Hotstick tool (for direct access port operation), Appropriate meter and test cap (for direct test)

Supplies needed:

Receptacle housings, Cable adapters, I, Wye, or H Center sections (splice sections), Aluminum holding collars (retaining rings), Lubricant (supplied or ELASTIMOLD approved), Hex-head bolts, Crimp connectors, Belleville washers, Flat washers, Nylon venting rod (supplied), ECS sealing device (optional), Tape (for markers, if applicable for cable type), Conductive copper strip (for flat metallic tape shielded cable), No. 14 AWG copper wire (or equivalent) for grounding, HV insulated cap(s) or connector(s) (to replace shipping covers), ECS grounding device (if used)

  1. Prepare for Installation and Ensure Safety

    DANGER: All apparatus must be de-energized during installation or removal of parts. Do not touch or move energized products in the work area. This product should be installed only by competent personnel trained in good safety practices involving high voltage electrical equipment. Inspect all package contents for completeness and damage. Check all components for proper fit with the cable and/or mating products. If the product is supplied with protective shipping covers, remove them and replace with appropriate HV insulated caps or connectors before submerging or energizing the circuit. Have all required tools at hand and maintain cleanliness throughout the procedure.

  2. Prepare Cable Jacket and Position Housing

    Wipe the outer jacket of the cable clean for a distance of 38 inches (96.5 cm). Ensure the cable end is cut squarely. If using an ECS sealing device, slide the tube onto the cable for a distance of 38 inches (96.5 cm). Slide the receptacle housing onto the cable for a distance of 30 inches (76.2 cm).

  3. Prepare Cable Insulation and Conductor

    Refer to the special cable preparation supplement for your specific cable type. For Jacketed Concentric Neutral Cable: Remove the cable jacket 13-3/4 inches (34.9 cm) from the end, bend neutral wires back, then remove the semi-con 10-1/4 inches (26 cm) from the end. Wrap two turns of tape 1 inch (2.5 cm) from the semi-con end as a marker. Bevel the insulation end at a 45-degree angle, approximately 1/4 inch (0.6 cm) back. Thoroughly clean the insulation with an approved safety solvent, wiping from the cable end toward the outer jacket. For Flat Metallic Tape Shielded Cable with Semi-con Shield: Remove the outer jacket 13-3/4 inches (34.9 cm) from the end. Remove the tape shield 11-1/4 inches (28.6 cm) from the end, wrap a conductive copper strip around the edge, and wrap two turns of tape over the end of the tape shield and strip as a marker. Remove the semi-con shield 10-1/4 inches (26 cm) from the end. Bevel the insulation end at a 45-degree angle, approximately 1/4 inch (0.6 cm) back. Thoroughly clean the insulation with an approved safety solvent, wiping from the cable end toward the outer jacket. After preparation, apply lubricant sparingly along the cable and inside the cable adapter. Slide the adapter, small end first, over the cable with a twisting motion until the end of the adapter is flush with the tape marker.

  4. Assemble Retaining Ring and Prepare Crimp Connector

    Remove any protruding cable insulation by cutting it even with the end of the cable adapter, taking care not to cut or nick the cable adapter or conductor. The exposed conductor should measure 4 3/4 inches (12.1 cm) to 5 inches (12.7 cm). Assemble the aluminum retaining ring over the conductor and snug it firmly against the cable adapter. Using the provided hex wrench, tighten the socket head screw hand tight. Confirm the exposed conductor measures 4 3/8 inches (11.1 cm) to 4 3/4 inches (12.1 cm). Remove the protective cap from the crimp connector. If using aluminum cable, wire brush the conductor and immediately fully insert it into the crimp connector which contains inhibitor. Measure the distance from the end of the connector to the retaining ring; it must be between 6 3/4 inches (17.1 cm) and 7 inches (17.8 cm). Repeat steps 3 and 4 for all remaining cables to be joined.

  5. Crimp Connectors and Secure Splice

    Prior to crimping, confirm that all components are positioned correctly and that the bolt holes in the crimp connectors align with the bolt holes of the mating part. Crimp each connector following the instructions packaged with the connectors, rotating each crimp 90 or 180 degrees. After crimping, measure the distance from the end of the connector to the holding collar; it must be between 6 3/4 inches (17.1 cm) and 7 inches (17.8 cm). Assemble the washers and bolt in the following order: flat washer against the spade contact, Belleville washer (concave side down), then the hex-head bolt. Hand tighten the bolt. The splice and cables are now in their final positions; do not attempt to move or reposition any part of the assembly after the bolts are tightened. Using a torque wrench with a 15/16 inch socket, tighten each bolt to 50 to 60 ft. lbs. (67.8 to 81.3 Nm).

  6. Lubricate and Position Receptacle Housing

    Apply the supplied lubricant or an ELASTIMOLD approved lubricant generously to the outside of the cable adapter, the area of the splice section, and the inside mating surface of the receptacle housing. Slide the receptacle housing over the cable adapter and up to the edge of the interface. Insert the supplied nylon venting rod.

  7. Complete Housing Assembly

    Use either the 650ATY assembly tool or the 600RRT assembly tool to slide the receptacle housing over the splice section. If using the 650ATY tool, attach it with the 'U' shaped yoke over the splice section and the 'C' shaped yoke over the receptacle housing, then slowly raise the handle. If using the 600RRT tool, place it as shown in the instructions and slide the housing by turning the hex nut on either end of the tool. WARNING: DO NOT place your hand on the threaded rod or guide shaft with the assembly tool in place. Once the housing is in position, remove the venting rod. Repeat steps 6 and 7 for all remaining cables. Check all cable adapters to ensure they are located properly and remove all vinyl tape markers.

  8. Ground the Assembly

    Complete the installation of any ECS grounding device according to its included instructions. Connect a short length of No. 14 AWG copper wire (or equivalent) to the grounding eyes of the housings. Make a small loop and twist tightly, taking care not to damage the eye, and connect it to ground.

  9. Perform Direct Voltage Test (Optional)

    To perform a direct voltage test, a specific meter and test cap are required. DANGER: NOT following these instructions or insertion of objects other than the test cap can cause serious or fatal injury. Follow the operating instructions for voltage measurement included with the meter and test cap.
