Contact for Pricing
Overview

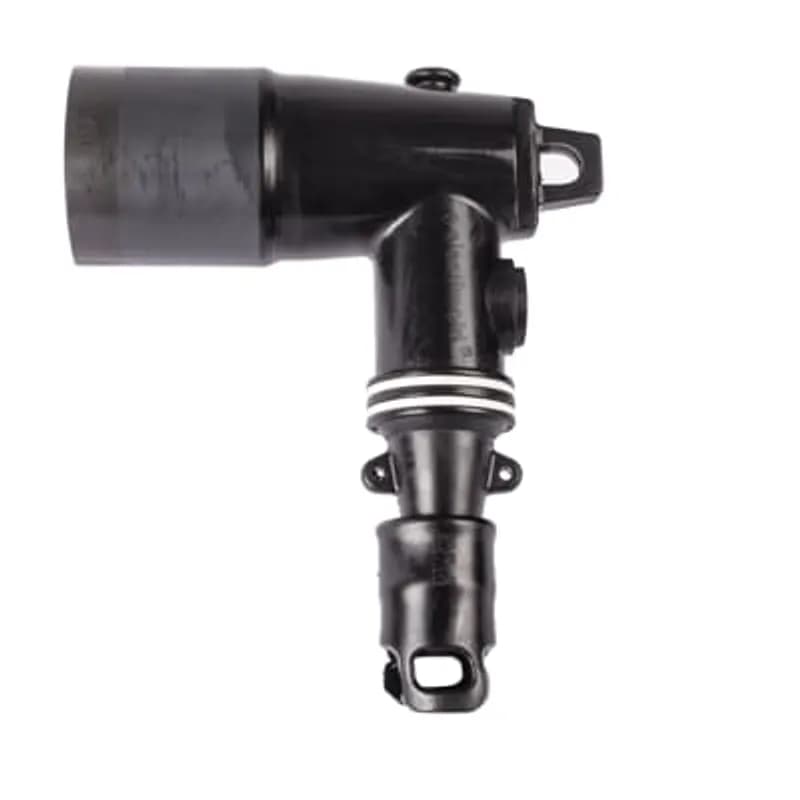

- 25/28kV rated, 200 Amp continuous current capacity
- Compatible with .635–.905 inch cable insulation diameters
- Supports #1 stranded and 1/0 compact copper conductors
- Bi-metal compression lug for reliable electrical and mechanical connection
- Jacket seal design for environmental protection against moisture and contaminants
Specifications
Amperage Rating | 200 A |
Application | The 262LRJS is designed for Connecting to and Operating 25/28kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems |
Color | Black |
Conductor Range | #1 STR/COMPR AWG , 1/0 SOL/COMPT AWG |
Connection | Compression |
Connection Type | Loadbreak Jacket Seal Elbow Connector |
Current Rating | 200 A |
Environmental Conditions | Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water |
Insulation | True |
Material | Housing - EPDM-Rubber |
Material | Bi-Metal Compression Lug |
Size | .635 inch - .905 inch Cable Insulation Diameter, #1 Stranded Wire Size, 1/0 solid/Compact Wire Size |
Special Features | 25/28kV, 200 Amp Loadbreak Elbow. Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Built in Cable Jacket Seal |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector and Jacket Seal |
Voltage Rating | 25 to 28 kV |
Voltage Rating | 25/28 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
168FLR1-B0230-SG4
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Aluminum Conductor size 1 AWG Stranded/Compressed, 1/0 AWG Solid/Compact. SG4 Option.
A 70-406 V1
Aluminum Tin Plated Mechanical Lug, One 13/32 inch Diameter Mount Hole On Pad, One Wire Port, 3/8-24 x 3/8 inch long Set Screw, 1-49/64 inch Long, 13/16 inch High and 1 inch Wide
SMSS 66 KIT
FloodSeal Street Light Connector, Contains Oxide Inhibiting Compound HM 58, Kit Contains One (1) Aluminum Mechanical Splice, #14 - #2, Dual Rated Connector Copper and Aluminum 75 Degree C. Two Screws, One CS-2277 Rocket, One FSS 350 Cap without Liner, One FSS350 Liner, and Instruction Sheet.
