ABB - Installation Products 655ETP-LAC03-DRG - 15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Window OP Kit, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Tin Plated Aluminum ShearBolt Connector. Conductor Size 500 kcmil Stranded/Compressed/Compact to 750 kcmil Stranded/Compressed/Compact.

ABB Installation Products 655ETP-LAC03-DRG 15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Window OP Kit, Test and Ground…

UPC: 075114436212


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

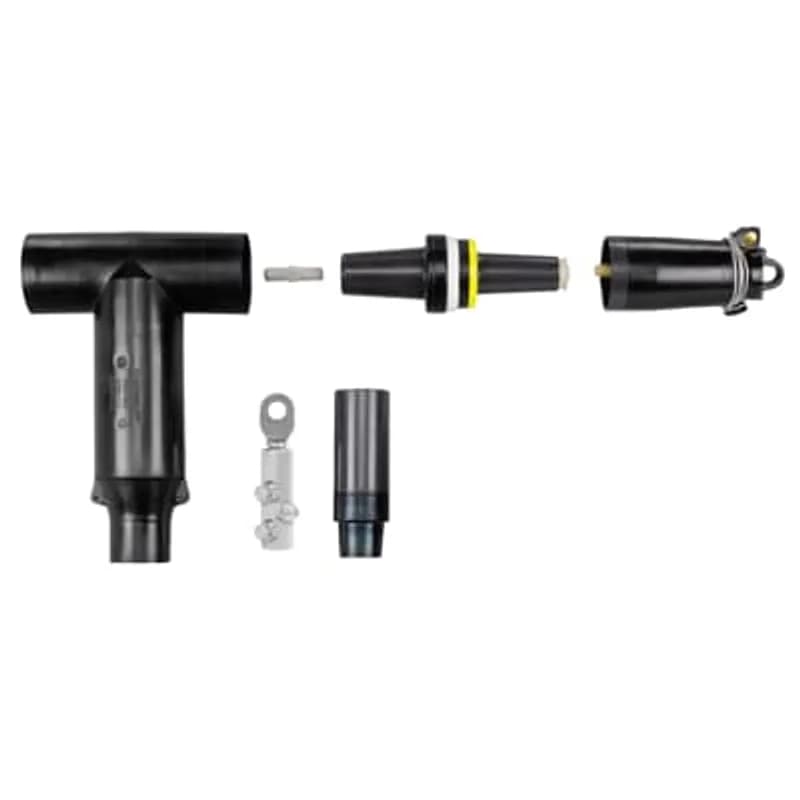

The ABB 655ETP-LAC03-DRG is a 15kV 600 Series Deadbreak Elbow TAP PLUG Connector designed for reliable electrical connections. This comprehensive kit includes essential components for a secure and functional installation. It features a Window OP Kit for operational visibility, and a Test and Ground Connector Kit. The Test and Ground kit is comprised of an Insulated Cap, a Test and Ground reducing tap plug, a 600 series Elbow housing, and a cable adapter. Engineered for specific cable insulation diameters ranging from 1.180 inches to 1.465 inches, this connector ensures a precise fit for compatible cable sizes. The connector utilizes a Tin Plated Aluminum ShearBolt Connector, providing excellent conductivity and corrosion resistance. It is suitable for conductor sizes from 500 kcmil Stranded/Compressed/Compact up to 750 kcmil Stranded/Compressed/Compact, accommodating a range of industrial power applications. This ABB Installation Products component is built to meet the demands of electrical distribution systems. SKU: 655ETP-LAC03-DRG. UNSPSC Code: 39121421.
  • 15kV operating voltage rating
  • 600 Series Deadbreak Elbow TAP PLUG Connector
  • Includes Window OP Kit and Test and Ground Connector Kit
  • Accommodates cable insulation diameters from 1.180" to 1.465"
  • Tin Plated Aluminum ShearBolt Connector for 500-750 kcmil conductors

Specifications

Amperage Rating
600 A
Application
600 Amps, 15 kV
Color
Black
Conductor Range
500 to 750 kcmil
Connection
Mechanical
Connection Type
Shearbolt
Insulation
EPDM Rubber
Material
Tin Plated Aluminum
Material
Housing - EPDM-Rubber , Tin Plated Aluminum Connector
Series
600 Series
Size
1.180 inch to 1.465 inch
Size
Cable Insulation Diameter 1.180 inch to 1.465 inch
Special Features
ShearBolt Connector, Includes Insulated Cap
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Window-Op Connector
Voltage Rating
15 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
