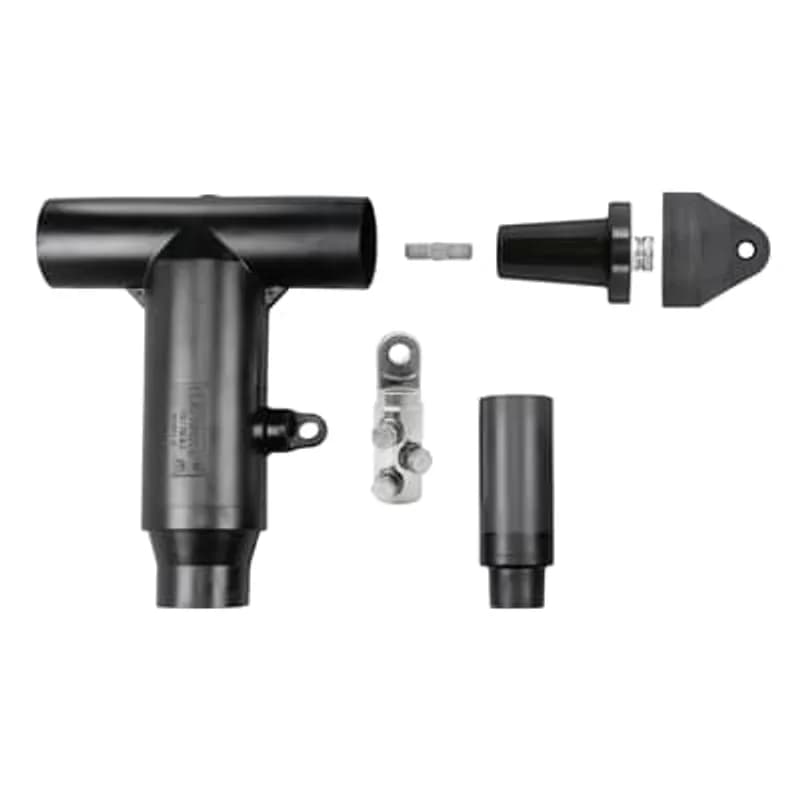

ABB - Installation Products K656LR-LAC02 - 15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Shear Bolt. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size Compressed/Stranded/Compact/Solid 3/0 AWG to 500 kcmil. No Sealing Kit.

ABB Installation Products K656LR-LAC02 15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud…

UPC: 075114434072


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB K656LR-LAC02 is a 15/25 kV, 600 Amp Series Deadbreak Elbow connector designed for reliable medium-voltage power system connections. This deadbreak elbow features a test point for diagnostic testing without de-energizing the system, enhancing operational efficiency and safety. It includes an insulated plug, cap, stud, lug, and cable adapter for a complete installation. The shear bolt mechanism ensures a secure and consistent connection for long-term performance. This deadbreak elbow is engineered to accommodate cable insulation diameters ranging from 1.180 inches to 1.465 inches. It is compatible with compressed, stranded, compact, and solid conductors from 3/0 AWG up to 500 kcmil. Specific conductor compatibility includes: * ABB/T&B CU/AL: 60275 (Wire Size: 400 MCM) * ABB/T&B CU/AL: 60273 (Wire Size: 500 MCM) * ABB/T&B CU/AL: 60269 (Wire Size: 400 MCM) * ABB/T&B CU/AL: 60275 (Wire Size: 600 MCM) For copper conductors, it supports: * ABB MLR61 (Lug material: Copper, Lug size: Standard, Max. amperage: 400 A, Wire size: (2) 2/0–300 kcmil) * ABB MLR61 (Lug material: Copper, Lug size: Oversized, Max. amperage: 600 A, Wire size: (2) 2/0–500 kcmil) * ABB MLR1 (Lug material: Copper, Lug size: Standard, Max. amperage: 225 A, Wire size: 4–450 kcmil) * ABB MLR2 (Lug material: Copper, Lug size: Oversized, Max. amperage: 225 A, Wire size: 1–600 kcmil) The product does not include a sealing kit, allowing for project-specific customization. Manufactured by ABB Installation Products, this deadbreak elbow is suitable for medium-voltage power distribution and transmission applications where dependable connections are essential. UNSPSC code: 39121421.
  • 15/25 kV voltage rating
  • 600 Amp continuous current rating
  • Integrated test point for diagnostics
  • Shear bolt connection for secure installation
  • Accommodates cable insulation diameters from 1.180" to 1.465"
  • Compatible with 3/0 AWG to 500 kcmil conductors (CU/AL and Copper options)

Specifications

Amperage Rating
600 A
Application
15/25kV, 600 Amp Deadbreak Elbow Connection
Color
Black
Conductor Range
3/0 AWG to 500 kcmil
Connection
Shear Bolt
Environmental Conditions
Fully Submersible
Insulation
True
Length
13 in
Length
330.2 mm
Material
Housing - EPDM-Rubber
Special Features
Shearbolt
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Deadbreak Elbow Connector with Test Point
Voltage Rating
15 to 25 kV
Width
10.36 in
Width
263.144 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit

168FLR1-B5220

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Large Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal, Conductor size 250 - 2/0 AWG Stranded/Compressed, 3/0 AWG Solid/Compact.

168FLR3-B5250

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Large Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal, Conductor size 250 - 2/0 AWG Stranded/Compressed, 3/0 AWG Solid/Compact.
15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Window OP Kit, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Tin Plated Aluminum ShearBolt Connector. Conductor Size 500 kcmil Stranded/Compressed/Compact to 750 kcmil Stranded/Compressed/Compact.

655ETP-LAC03-DRG

15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Window OP Kit, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Tin Plated Aluminum ShearBolt Connector. Conductor Size 500 kcmil Stranded/Compressed/Compact to 750 kcmil Stranded/Compressed/Compact.
25kV, 600 Amp Elbow Splice. 15-25kV, 600 Amp, Deadbreak, 4-Way L-Kit without Test Point, without Seal. 38.18 inch (969.8mm). Cable Insulation Diameter 1.370 - 1.630 inches.

K655L4

25kV, 600 Amp Elbow Splice. 15-25kV, 600 Amp, Deadbreak, 4-Way L-Kit without Test Point, without Seal. 38.18 inch (969.8mm). Cable Insulation Diameter 1.370 - 1.630 inches.
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Window-Op Connector Kit. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 1000. Comes with Insulated Cap.

656ETP-N0410-DRG

600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Window-Op Connector Kit. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 1000. Comes with Insulated Cap.
25/28kV, 200 Amp, Loadbreak Jacket Seal Elbow Connector, .635 inch - .905 inch Cable Insulation Diameter, #1 Stranded Wire Size, 1/0 solid/Compact Wire Size, Bi-Metal Compression Lug.

261LRJS-B5230

25/28kV, 200 Amp, Loadbreak Jacket Seal Elbow Connector, .635 inch - .905 inch Cable Insulation Diameter, #1 Stranded Wire Size, 1/0 solid/Compact Wire Size, Bi-Metal Compression Lug.
FloodSeal Street Light Connector, Contains Oxide Inhibiting Compound HM 58, Kit Contains One (1) Aluminum Mechanical Splice, #14 - #2, Dual Rated Connector Copper and Aluminum 75 Degree C. Two Screws, One CS-2277 Rocket, One FSS 350 Cap without Liner, One FSS350 Liner, and Instruction Sheet.

SMSS 66 KIT

FloodSeal Street Light Connector, Contains Oxide Inhibiting Compound HM 58, Kit Contains One (1) Aluminum Mechanical Splice, #14 - #2, Dual Rated Connector Copper and Aluminum 75 Degree C. Two Screws, One CS-2277 Rocket, One FSS 350 Cap without Liner, One FSS350 Liner, and Instruction Sheet.
ADAPTER,DOUBLE TOWER ROCKET FS175

DP 175, EPDM ADAPTER

ADAPTER,DOUBLE TOWER ROCKET FS175

Frequently Asked Questions

What is the maximum operating voltage for the K656LR elbow connector?

For the 15kV voltage class, the maximum operating voltage is 8.3kV phase-to-ground and 14.4kV phase-to-phase. For the 28kV voltage class, it is 16.2kV phase-to-ground and 28kV phase-to-phase.

What conductor sizes can the K656LR handle?

The K656LR can be used with conductor sizes from #2 AWG to 1250 kcmil for both aluminum and copper conductors.

What is the continuous current rating for this elbow connector?

The K656LR elbow connector has a continuous current rating of 600 Amps.

Is a grounding device recommended for certain cable types?

Yes, when used on metallic tape shield or drain wire cable, an ECS cable seal grounding device is highly recommended for safety.

What is the DC fifteen-minute withstand voltage for the 28kV class?

The DC fifteen-minute withstand voltage for the 28kV voltage class is 84kV.

What is the impulse withstand rating for the 28kV voltage class?

The impulse withstand rating for the 28kV voltage class is 140kV BIL for a 1.2 x 50 microsecond wave.

What is the corona extinction rating for the 15kV voltage class?

The corona extinction rating for the 15kV voltage class is 11kV AC at 3pC sensitivity.

What is the insulation diameter range for the K656LR?

The K656LR is designed for insulation diameters ranging from 0.640 inches to 1.935 inches.

What is the momentary short circuit rating?

The momentary short circuit rating is 25kA Sym for 10 Cycles.

Can the K656LR be connected or disconnected easily?

Yes, it can be easily connected or disconnected using standard hand tools and equipment in a de-energized state.
