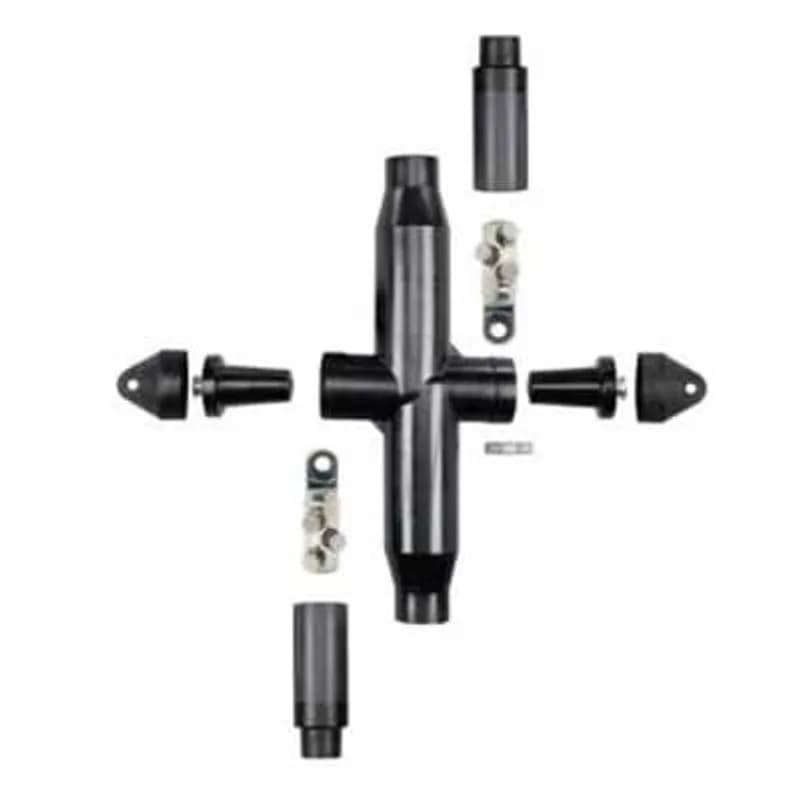

Overview
- 15/25kV voltage class with 600A continuous current rating
- Supports 750-1250 kcmil stranded, compressed, solid, or compact conductors
- Insulation diameter range: 1.37-1.63 inches (34.8-41.4 mm)
- Fully shielded, submersible molded rubber housing with peroxide-cured EPDM
- Deadbreak design for safe de-energized connection/disconnection
Specifications
Amperage Rating | 600 A |
Application | Deadbreak, Underground Cable Connections |
Color | Black |
Conductor Range | 750 to 1250 kcmil |
Connection | Shear Bolt |
Connection Type | Shear Bolts |
Current Rating | 600 A |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Aluminum |
Material | Housing - EPDM-Rubber |
Mounting Type | Vault/Underground |
Poles | 2 |
Series | K655VSL2 |
Size | 1.37-1.63 inch (34.8-41.4mm) |
Special Features | Copper or Aluminum Conductors. Installation uses Standard Wrench |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak 2-Way Vault Stretcher with Shear Bolt Connectors |
Voltage Rating | 15 to 25 kV |
Voltage Rating | 15/25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
151-GP
15/25kV 200 Amp, Deadbreak Grounding Plug, Bails are required, but not included, order separately.
1601DLA
15kV, 200 Amp, DeadBreak to LoadBreak Bushing Adapter, Red. Includes hex-broach for Torque installation, Peroxide-cured insulation and jacket, Provision for ground wire connection, All copper current path. Red PBT interface shield reduces sticking and provides seating indicator.
K656DLR-K0300
600 Amp, 15/25kV, 600 Series Deadbreak Direct Test Elbow with Test Point, (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size kcmil Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.K656DLR-H0270
600 Amp, 15/25kV, 600 Series Deadbreak Direct Test Elbow with Test Point, (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG Compressed Stranded 4/0 or Compacted Solid 250 kcmil.Frequently Asked Questions
What items are included in a 600 amp deadbreak elbow LR kit?
The LR and DLR kits contain one elbow connector housing, one shear bolt lug, one stud, one insulated plug with cap, three tubes of lubricant, and one cable adapter.
Does the shear bolt system comply with industry standards?
Yes, the Elastimold advanced shear bolt connection system meets the latest revision of IEEE 386.
What safety precaution is necessary before installation?
The circuit must be de-energized before beginning the installation of the shear bolt connection system.
What tools are required for installation?
Only a standard wrench is needed for installation; no dies or pneumatic tools are required.
What cable sizes does the connection system accommodate?
The system accommodates multiple wire sizes from #2 AWG to 1500 kcmil. Note that 1500 kcmil is only compatible with 35 kV applications.
What is the current rating for the shear bolt system?
The shear bolt connection system is applicable for 600 amp and 900 amp current ratings.
What conductor types are compatible with this system?
The Elastimold advanced shear bolt connection system is designed and tested for use on both aluminum and copper conductors.
What is the current rating for the shear bolt system?
The shear bolt connection system is applicable for 600 amp and 900 amp current ratings.
What items are included in a 600 amp deadbreak elbow LR kit?
The LR and DLR kits contain one elbow connector housing, one shear bolt lug, one stud, one insulated plug with cap, three tubes of lubricant, and one cable adapter.
What conductor types are compatible with this system?
The Elastimold advanced shear bolt connection system is designed and tested for use on both aluminum and copper conductors.
