Contact for Pricing
Overview
- 15/25kV voltage rating with 600 Amp continuous current capacity
- Non-corrosive capacitive test point for safe voltage verification
- Aluminum compression lug for 250-300 kcmil conductors
- Cable insulation diameter compatibility: 1.180" to 1.465"
- Fully shielded, submersible molded rubber housing for medium voltage applications
Specifications
Amperage Rating | 600 A |
Application | 15/25kV, 600 Amp Deadbreak Elbow Connection |
Color | Black |
Conductor Range | 250 kcmil , 300 kcmil |
Connection Type | Compression Lug |
Current Rating | 600 A |
Environmental Conditions | Fully Submersible |
Insulation | True |
Length | 13 in |
Length | 330.2 mm |
Material | Aluminum |
Material | Housing - EPDM-Rubber |
Series | Series Deadbreak Elbow |
Size | Cable Insulation Diameter 1.180 inch to 1.465 inch, Conductor Size Compressed/Stranded 250 or Compact/Solid 300 |
Special Features | Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector with Test Point |
Voltage Rating | 25 kV |
Voltage Rating | 15/25 kV |
Width | 10.36 in |
Width | 263.144 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 6.6000 L |
Package Weight (Metric) | 2.9940 kg |
K656LR-N0280

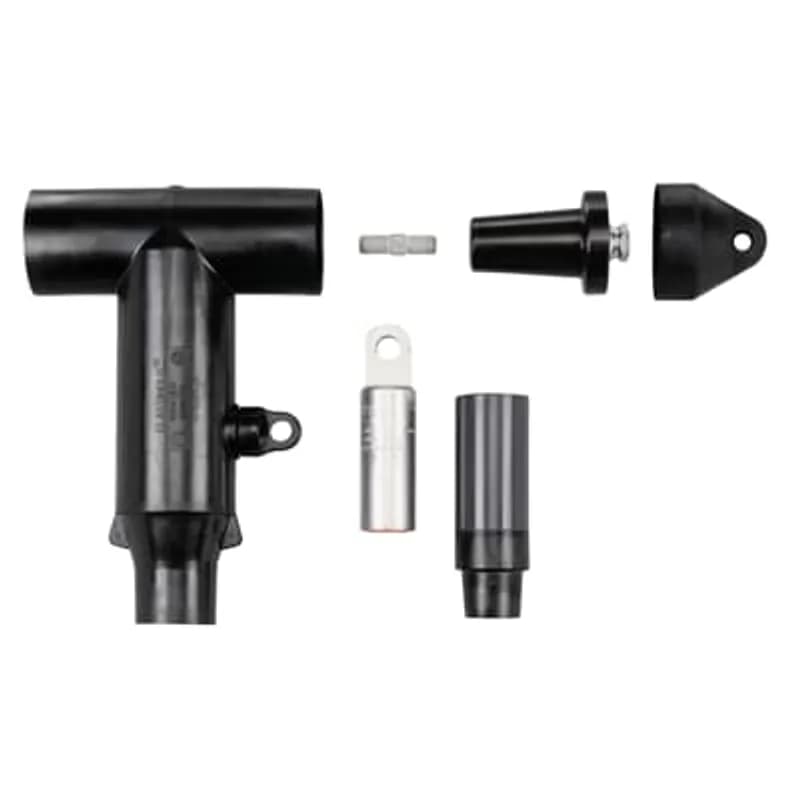

15/25kV, 600 Amp, DeadBreak, Elbow with Test Point (includes Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation 1.515-1.780 inches, Aluminum Compression Lug, Conductor Size 250 Stranded/Compressed
K656LR-G2270-SG3
15/25 KV, Elbow Connector with Test Point, 600 Amp, Dead Break, Cable Insulation Diameter 0.760 inch to 0.950 inch. Copper Compression Lug. Conductor Size AWG Compressed/Stranded 4/0 or Solid 250 or mm2 125. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
162LR-C5200-SG3
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .805 inch - 1.060 Inch Cable Insulation Diameter, Conductor Size #4 Stranded/Compressed or #3 Solid/Compact, Bi-Metal Compression Lug. SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.K656LR-J0300-SG3
15/25kV, 600 Amp Deadbreak Elbow with Test Point and with SG3 - Cold Shrinkable Seal with Copper Braid and Constant Force Spring. Cable Insulation Diameter J - 0.980 to 1.180 inch. Aluminum Compression Lug, Conductor Size 300 - 350 kcmil Stranded/Compressed or 400 kcmil Solid/Compact.
161LR-B-5220-SG3
15KV, 200 Amp, Loadbreak Elbow, Cable Insulation Diameter 0.635 inch to 0.905 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62. SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
755DLR-J0240
600 Amp, 35KV, Direct Test Elbow, with Insulated Plug, Cap, Stud, Lug and Cable Adapter, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1/0 or Compacted/Solid 2/0.
755DLR-P0380
35kV 600 Series Deadbreak Direct Test Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.Frequently Asked Questions
What is the maximum operating voltage for the K656LR elbow connector?
For the 15kV voltage class, the maximum operating voltage is 8.3kV phase-to-ground and 14.4kV phase-to-phase. For the 28kV voltage class, it is 16.2kV phase-to-ground and 28kV phase-to-phase.
What conductor sizes can the K656LR handle?
The K656LR can be used with conductor sizes ranging from #2 AWG to 1250 kcmil for both aluminum and copper conductors.
What is the continuous current rating for this elbow connector?
The K656LR elbow connector has a continuous current rating of 600 Amps.
What is the impulse withstand rating for the K656LR connector?
For the 15kV class, the impulse withstand is 95kV BIL. For the 28kV class, it is 140kV BIL.
What is the corona extinction rating for the K656LR?
The corona extinction rating is 11kV AC at 3pC sensitivity for the 15kV class and 21.5kV AC at 3pC sensitivity for the 28kV class.
What is the momentary current rating for the K656LR?
The K656LR has a momentary current rating of 25kA Sym for 10 Cycles.
What insulation diameters does the K656LR accommodate?
The K656LR accommodates insulation diameters ranging from 0.640 inches to 1.935 inches.
What is the purpose of the test point on the K656LR?
The test point is a non-corrosive, capacitive test point that allows for testing of the connection.
What accessories are available for the K656LR?
Optional accessories include those for visible external separation, by-pass, isolation, dead-ending, grounding, testing, adding taps, surge arrestors, and fault current indicators.
What is the construction material of the K656LR housing?
The K656LR features a fully shielded, fully submersible molded rubber housing with 100% peroxide-cured construction.
How to Install 655/675LR and K655/K675LR Deadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of 655/675LR and K655/K675LR Deadbreak Elbow Connectors, including cable preparation, lug crimping, and connection to high voltage apparatus. This product should only be installed by competent personnel trained in high voltage electrical equipment safety practices.
Estimated time: 1h 30m
Tools needed:
Wire strippers, Crimping tool, Wire brush, Torque wrench, Hotstick, Suitable sensing device (for capacitive test points), Utility knife or beveling tool
Supplies needed:
655/675LR or K655/K675LR Elbow Connector kit (includes Elbow, Cable Adapter, Compression Lug, Insulating Plug, Lubricant, Stud Prepack, Crimp chart), No. 14 AWG Copper wire (or equivalent ampacity), Suitable grounding connector, HV insulated cap(s) or connector(s), Silicone lubricant, Waterproofing material (for cable jacket)
- Prepare for Installation and De-energize Apparatus
DANGER: All apparatus must be de-energized during installation or removal of parts. Do not touch or move energized products. Inspect all parts for damage, rating, and compatibility with mating parts. Remove any protective shipping covers and replace with appropriate HV insulated caps or connectors before submerging or energizing the circuit. Gather all required tools and supplies, and maintain cleanliness throughout the procedure.
- Position and Clean Cable
Assemble the cable in its final position, ensuring enough slack to allow for elbow removal. For concentric neutral cable, unwind the concentric neutral wires. Cut the cable 1-3/4 inches (45mm) from the centerline of the mating product. Clean the outer surface of the cable a distance of 24 inches (610mm) or up to the bent back concentric neutral wires.
- Prepare Cable Insulation and Shield
Remove the outer jacket (where applicable) and prepare the cable insulation, semi-con shield, and shield wires according to the cable type (e.g., non-jacketed, jacketed, unishield, lead sheath, flat metallic tape, fabric tape, or longitudinally corrugated shield). Refer to specific installation instructions supplied with any 20MA/21MA grounding device, 600ECS Jacket Cable Seal, or 10TL cable shield adapter if these products are being used for cable preparation, shield connection, and grounding.
- Install Cable Adapter
Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4 inch (6mm) back. Thoroughly clean and then lubricate the cable insulation, always working toward the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.
- Prepare Conductor Length
Remove the protruding cable insulation by cutting it even with the end of the cable adapter. Do not cut or nick the cable adapter or the conductor. The length of the exposed conductor must be between 4-1/4 inches and 4-9/16 inches (108mm-116mm). If the length is outside this range, redo the assembly.
- Crimp Compression Lug
For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor and immediately fully insert it into the compression lug. Measure the 'Check Dimension' before crimping; it should be less than 6-3/8 inches. Crimp the compression lug following the crimping instructions supplied with the lug. Wipe all excess inhibitor from the compression lug and cable adapter surface after crimping. The distance from the end of the compression lug to the cable adapter after crimping should be between 6-3/8 inches to 7-1/8 inches (162mm-181mm). If dimensions are incorrect, redo the assembly.
- Install Elbow Connector
Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until the elbow cannot advance further. Ensure the cable adapter is still flush with the tape marker. If not, reposition the cable adapter. Remove the tape marker.
- Connect Elbow to First Mating Part
DANGER: DO NOT CONNECT OR DISCONNECT MATING PRODUCTS WHILE ENERGIZED. DO NOT ENERGIZE WHILE DISCONNECTED. Remove protective caps from the elbow and the mating part. If the mating part is not equipped with a stud, hand tighten the threaded stud supplied with the elbow into the mating part. Clean and lubricate both the elbow and the mating part with the supplied lubricant. Push the elbow onto the mating part, lining up the hole in the compression lug with the stud on the mating part.
- Connect Elbow to Second Mating Part (if applicable)
Clean and lubricate the mating part for the opposite end of the elbow. Insert this mating part into the elbow. Engage the threads and hand tighten. Torque the mating part according to the instructions supplied with that specific mating part. CAUTION: When constructing 600-amp L-Kits, ensure each component is tightened to the specified torque per instructions.
- Install Insulating Plug and Voltage Detection Cap (if applicable)
If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap. Place the cap on the elbow and push down hard until it snaps into place. Proceed to the voltage test directions.
- Ground the Cable Shield and Waterproof Jacket
Insert one end of a piece of wire with ampacity at least equivalent to No. 14 AWG Copper through the grounding eye and twist to make a small loop, taking care not to damage the eye. Connect this wire to ground using a suitable connector. The shield of the cable must be grounded; ground it according to the instructions supplied with the grounding device, or through an alternate method if no grounding device is used. It is also recommended that the jacket of the cable be waterproofed at this point to prevent moisture from entering the cable.
- Perform Voltage Test
The ELASTIMOLD deadbreak elbow connector is equipped with an integral capacitance test point. Remove the test point cap with a hotstick, peeling it off at an angle rather than pulling directly. WARNING: The voltage test point is a capacitance device and is not directly connected to the conductor. Do not use conventional voltage measuring equipment. Follow the manufacturer’s directions for the meter used. Test with a suitable sensing device, made for use with separable connectors manufactured with capacitive test points, to determine if the cable is energized. Contamination, moisture, dirt, or using the wrong measuring equipment can provide a false 'no voltage' indication. To prevent serious or fatal injury, treat the elbow as energized until the 'no voltage' test point indication is confirmed by other means. After voltage detection, clean and lubricate the inside surface of the cap with silicone lubricant and replace it on the test point.
