ABB - Installation Products 656CETP-NAC04-DRG-S - 15kV, 600 Amps, Combo T Elbow with Bus Stud, Cable Adapter and Lug. Cable Insulation Diameter 1.515-1.780 inches, Tin Plated Aluminum ShearBolt Lug, Conductor Size 750 to 1250 kcmil Stranded/Compressed and Solid/Compact. Cold Shrinkable Jacket Seal.

ABB Installation Products 656CETP-NAC04-DRG-S 15kV, 600 Amps, Combo T Elbow with Bus Stud, Cable Adapter and Lug. Cable Insulation…

UPC: 075114400039


Documents & Media
BrochureManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

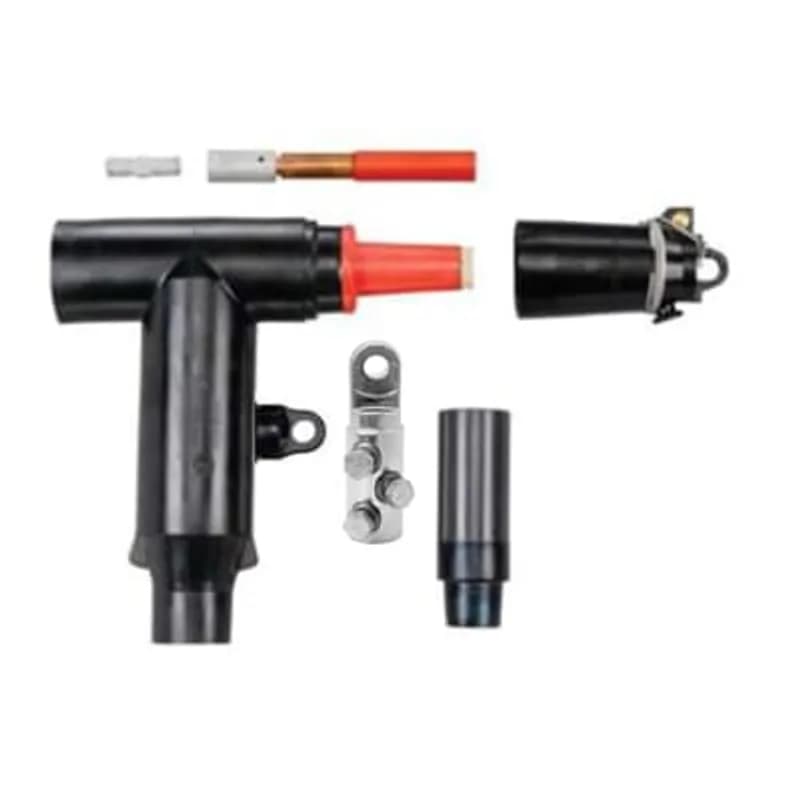

The ABB 656CETP-NAC04-DRG-S is a 15kV, 600 Amp ComboT Elbow designed for medium-voltage power distribution systems. This unit integrates a 200A reducing tap plug, bus stud, cable adapter, tin-plated aluminum shear-bolt lug, and insulated cap kit, providing a complete termination solution for 750–1250 kcmil stranded/compressed or solid/compact conductors. The product meets ANSI/IEEE Standard 386 and is rated for 8.3kV phase-to-ground and 14.4kV phase-to-phase operation, with a 95kV BIL impulse withstand rating. It supports cable insulation diameters from 1.515 to 1.780 inches and features a cold shrinkable jacket seal for weather-resistant terminations. The internal hex broach ensures proper torque during installation, while the IEEE 386 color-coded PBT interface improves visibility and reduces sticking. The 200A loadbreak interface allows safe connection and disconnection under load, and the 600A deadbreak connection supports continuous operation. This ComboT Elbow is ideal for utility, industrial, and commercial power distribution systems requiring reliable, high-current terminations with reduced stack height and simplified inventory management.
  • 15kV rated for 8.3kV phase-to-ground and 14.4kV phase-to-phase operation
  • Supports 750–1250 kcmil stranded/compressed or solid/compact conductors
  • Cable insulation diameter range: 1.515–1.780 inches
  • 200A loadbreak and 600A deadbreak interface ratings
  • Cold shrinkable jacket seal for weather-resistant terminations

Specifications

Amperage Rating
600 A
Application
600 Amps, 15kV Connector
Color
Black
Conductor Range
750 to 1250 kcmil
Connection
Mechanical
Connection Type
ShearBolt Lug
Current Rating
600 A
Environmental Conditions
All Weather Conditions
Insulation
True
Material
Housing - EPDM-Rubber
Material
Tin Plated Aluminum
Size
Cable Insulation Diameter 1.515-1.780 inches, Conductor Size 750 to 1250 kcmil
Special Features
Reducing Tap Plug with Stud, Cable Adapter, ShearBolt Lug and Insulated Cap
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
ComboT Elbow
Voltage Rating
15 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
