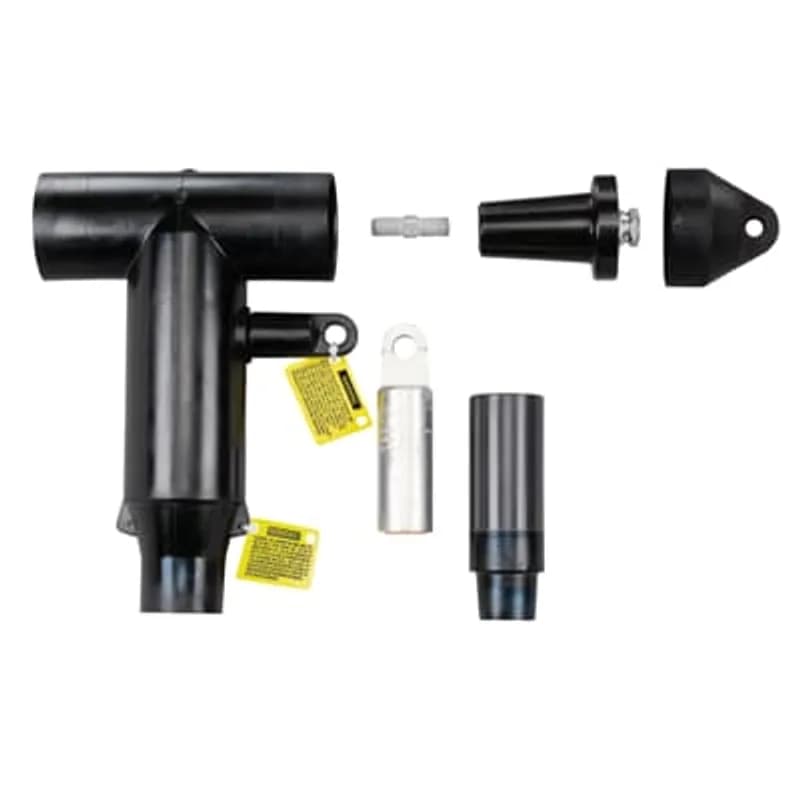

ABB Installation Products K655DLR-P0380 15/25kV, Deadbreak, 600 Series Direct Test Elbow with Insulated Plug, Cap, Stud, Lug and…
UPC: 075114399258
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25kV Voltage Rating for robust power distribution.
- 600 Series Deadbreak Elbow with direct test capability.
- Accommodates cable insulation diameters from 1.725" to 1.935".
- Aluminum compression lug for 700-750 kcmil (compressed/stranded) or 900 kcmil (compacted/solid) conductors.
- Complete kit includes insulated plug, cap, stud, lug, and cable adapter.
Specifications
Amperage Rating | 600 A |
Application | 15/25kV, 600 Amps |
Color | Black |
Conductor Range | 700 to 750 kcmil , 900 kcmil |
Connection | Compression |
Environmental Conditions | All Weather Conditions, Fully Submersible |
Insulation | True |
Length | 13 in |
Length | 330.2 mm |
Material | Housing - EPDM-Rubber |
Special Features | Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators. Direct conductor test point equipped elbow |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Direct Test Elbow Connector |
Voltage Rating | 15 to 25 kV |
Width | 10.36 in |
Width | 263.144 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
K656CY-L0380
15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point. Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
K655LR-LAC02
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug with Cap, Stud, Shear Bolt Lug, Cable Adapter and lubricant. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size 3/0 AWG Stranded or Compressed or Solid or Compact to 500 kcmil Stranded or Compressed or Solid or Compact.
K655LR-K0360-SG3
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size Compressed/Stranded 650 or Compact/Solid 750/800 kcmil. Cold-Shrinkable Jacket Seal with Copper Braid and Constant Force Spring Included.
656CETP-MAC03-S
15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 1.370 inch to 1.630 inch. Shear Bolt Lug. Conductor Size Compressed-Stranded-Solid-Compact 500 to 750 kcmil. 200ECS Cold Shrinkable Jacket Seal Included.
K656LR-G0260
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Cable Insulation .760 to .950 inch. Aluminum Lug, Conductor Size 3/0 Stranded/Compressed or 4/0 Compact/Solid. No Sealing Kit.
755LR-L0250
600 Amp, 35 kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size 250 - 2/0 Compressed Stranded AWG or 3/0 Compacted Solid AWG.
252LR-E5270-G
15/25 kV, 200 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.09-1.31 inches (27.48-33.27 mm), Copper Lug, Conductor Size 270 - 4/0 Stranded/Compressed, 250 kcmil Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Standard Bail Assembly, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 5.454 x 7.531 inches, 2.097 inch diameter. Includes Bonding/Grounding Wire.K655LR-H0220
600 Amp, 15/25 kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.640 inch to 0.820 inch. Conductor Size AWG Compressed/Stranded #2 or Compacted/Solid #1 or mm2 Compact 35.Frequently Asked Questions
What is the continuous current rating?
The continuous current rating for both 15kV and 28kV voltage classes is 600 Amps.
What items are included in the K655DLR kit?
The kit includes an elbow connector housing, copper compression lug, stud, insulated plug with cap, lubricant tubes, cable adapter, and installation instructions.
Can the elbow be installed while energized?
No, the elbow connector can only be connected or disconnected using standard hand tools and equipment in a de-energized state.
What is the impulse withstand rating for 28kV?
For the 28kV voltage class, the Basic Impulse Level (BIL) impulse withstand is 140kV (1.2 x 50 microsecond wave).
What are the 28kV operating voltage limits?
For 28kV, the maximum phase-to-ground operating voltage is 16.2kV, and the maximum phase-to-phase is 28kV.
What is the impulse withstand rating for 15kV?
For the 15kV voltage class, the Basic Impulse Level (BIL) impulse withstand is 95kV (1.2 x 50 microsecond wave).
What is the K655DLR elbow connector used for?
The K655DLR is a 15/25kV, 600 Amp deadbreak elbow connector. It incorporates the Elastimold Direct Test System for isolation, testing, and grounding.
What is the Elastimold Direct Test System (EDTS)?
EDTS is an insulated port on the separable connector providing a direct path to the conductor. It allows direct conductor voltage testing with a 600TC series meter adapter.
What are the 15kV operating voltage limits?
For 15kV, the maximum phase-to-ground operating voltage is 8.3kV, and the maximum phase-to-phase is 14.4kV.
What items are included in the K655DLR kit?
The kit includes an elbow connector housing, copper compression lug, stud, insulated plug with cap, lubricant tubes, cable adapter, and installation instructions.
How to Install K655/K675DLR Direct Test Elbow Connectors
This guide provides comprehensive instructions for the safe installation, cable preparation, and connection of K655/K675DLR Direct Test Elbow Connectors for high voltage apparatus.
Estimated time: 1h 30m
Tools needed:
Wire strippers, Measuring tape, Wire brush (for aluminum conductors), Crimping tool, Torque wrench, Hotstick tool (for direct test port cap removal/installation)
Supplies needed:
K655/K675DLR Elbow, Cable Adapter, Compression Lug, Insulating Plug, Lubricant, Stud Prepack, Vinyl plastic tape (if applicable), Tape retainer (if applicable), Tape marker (if applicable), Ground wire (No. 14 AWG copper min.), Suitable ground connector, Waterproofing material (optional), Mating apparatus/connector
- Prepare for Installation and De-energize Apparatus
Ensure all apparatus is de-energized before beginning installation. Inspect all components for damage, proper rating, and compatibility with mating parts. Gather all required tools and supplies, and maintain cleanliness throughout the procedure. Read all instructions thoroughly before starting. DANGER: All apparatus must be de-energized during installation or removal of part(s). Failure to follow these instructions will result in serious or fatal injury.
- Position and Prepare Cable
Position the cable in its final assembled location, ensuring enough slack for future elbow removal. For concentric neutral cable, unwind the neutral wires. Cut the cable 1-3/4” (45mm) from the centerline of the mating product. Clean the outer surface of the cable for a distance of 24” (610mm) or up to the bent-back concentric neutral wires. Remove the cable's outer jacket, shield, and semi-con shield according to the specific cable type and dimensions provided in the documentation (e.g., 12-3/4” for outer jacket, 9-3/4” to 10-3/4” for shields). Install any necessary tape markers or retainers. Do not cut or nick the cable insulation.
- Install Cable Adapter and Prepare Conductor
Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4” (6mm) back. Thoroughly clean and lubricate the cable insulation, working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker. Remove the protruding cable insulation by cutting it even with the end of the cable adapter. Verify the exposed conductor length is between 4-3/8” (111mm) to 4-11/16” (119mm).
- Crimp Compression Lug
For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor immediately before fully inserting it. Measure the 'Check Dimension' before crimping; it must be less than 6-1/2” (165mm). Crimp the compression lug following its supplied instructions, ensuring the first crimp is on the end opposite the cable adapter. Wipe off all excess inhibitor from the lug and cable adapter surface after crimping. Verify the distance from the end of the compression lug to the cable adapter is between 6-1/2” to 7-1/4” (165mm – 184mm).
- Install Elbow and Connect to Mating Part
Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further, ensuring the cable adapter remains flush with the tape marker. Remove the tape marker. Remove protective caps from the elbow and the mating part. If the mating part is not equipped with a stud, hand tighten the supplied threaded stud into it. Clean and lubricate both the elbow and the mating part. Push the elbow onto the mating part, aligning the compression lug hole with the stud. DANGER: Do not connect or disconnect mating products while energized. Do not energize while disconnected. Failure to follow these instructions will result in serious or fatal injury.
- Complete Connections and Ground Cable Shield
If connecting another mating part to the opposite end of the elbow, clean and lubricate its inner surface, insert it into the elbow, engage threads, hand tighten, and then torque according to its instructions. If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap and place it on the elbow, pushing until it snaps into place. Insert one end of a No. 14 AWG copper wire (or equivalent) through the grounding eye, twist to form a small loop, and connect to ground using a suitable connector. The cable shield must be grounded. Waterproof the cable jacket at this point to prevent moisture ingress.
- Perform Direct Voltage Test (Optional)
If a direct voltage test is required, use only the appropriate direct voltage test port adapter and meter (e.g., 200TC-1, 200TC-2, 200TC-4). Refer to the separate operating instructions for the test port adapter and voltage meter/indicator for safe and accurate testing procedures. DANGER: Insertion of any object, other than the appropriate direct voltage test port adapter and meter, into the direct test port or in close proximity to it can result in electric shock which will cause serious or fatal injury.
