Contact for Pricing
Overview

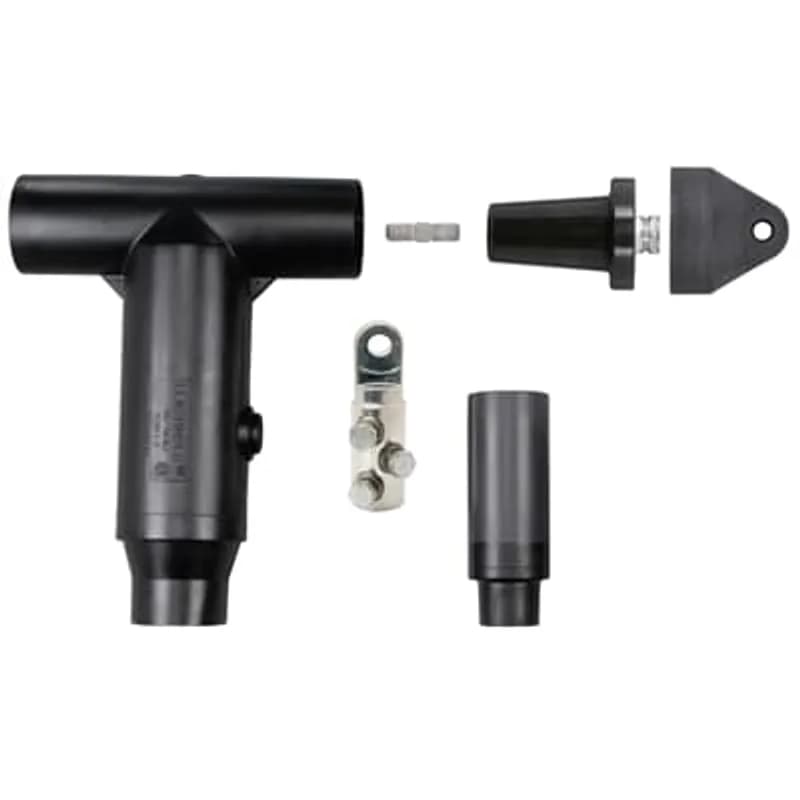

- 600 Amp, 15/25kV voltage rating
- 600 Series Deadbreak Elbow design
- Insulated plug with cap for safety
- Shear bolt lug and cable adapter included
- Accommodates 1.180"-1.465" insulation diameter and 3/0-500 kcmil conductors
Specifications
Amperage Rating | 600 A |
Application | Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus |
Color | Black |
Conductor Range | 3/0 to 500 kcmil |
Connection | Shear Bolt |
Connection Type | Deadbreak Elbow with Insulated Plug |
Current Rating | 600 A |
Environmental Conditions | Fully Submersible |
Insulation | True |
Length | 13 in |
Length | 330.2 mm |
Material | Copper, Insulated Plug, Stud, Shear Bolt Lug, Cable Adapter |
Material | Housing - EPDM-Rubber |
Series | 600 Series |
Size | Cable Insulation Diameter 1.180 inch to 1.465 inch, Conductor Size 3/0 AWG Stranded or Compressed or Solid or Compact to 500 kcmil Stranded or Compressed or Solid or Compact |
Special Features | Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators |
Standard | ANSI/IEEE Standard 386 |
Type | Deadbreak Elbow Connector |
Voltage Rating | 15 to 25 kV |
Voltage Rating | 15/25 kV |
Width | 10.36 in |
Width | 263.144 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
168FLR1-B5220
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit
K655LR-K0360-SG3
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size Compressed/Stranded 650 or Compact/Solid 750/800 kcmil. Cold-Shrinkable Jacket Seal with Copper Braid and Constant Force Spring Included.
656CETP-MAC03-S
15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 1.370 inch to 1.630 inch. Shear Bolt Lug. Conductor Size Compressed-Stranded-Solid-Compact 500 to 750 kcmil. 200ECS Cold Shrinkable Jacket Seal Included.
K656LR-G0260
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Cable Insulation .760 to .950 inch. Aluminum Lug, Conductor Size 3/0 Stranded/Compressed or 4/0 Compact/Solid. No Sealing Kit.
755LR-L0250
600 Amp, 35 kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size 250 - 2/0 Compressed Stranded AWG or 3/0 Compacted Solid AWG.
252LR-E5270-G
15/25 kV, 200 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.09-1.31 inches (27.48-33.27 mm), Copper Lug, Conductor Size 270 - 4/0 Stranded/Compressed, 250 kcmil Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Standard Bail Assembly, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 5.454 x 7.531 inches, 2.097 inch diameter. Includes Bonding/Grounding Wire.K655LR-H0220
600 Amp, 15/25 kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.640 inch to 0.820 inch. Conductor Size AWG Compressed/Stranded #2 or Compacted/Solid #1 or mm2 Compact 35.Frequently Asked Questions
What current ratings does the connection system support?
The advanced shear bolt connection system is applicable for 600 amp and 900 amp current ratings.
What is the conductor size range for the connectors?
The system accommodates multiple wire sizes from #2 AWG to 1500 kcmil. Note that 1500 kcmil is only applicable for 35 kV systems.
What conductor types are compatible with this system?
The shear bolt connection system is designed and tested for use with both aluminum and copper conductors.
What voltage range is supported by the connectors?
The system is applicable for 600/900 amp elbow connectors, vault stretchers, and straight receptacles from 15 kV up to 35 kV.
What tools are required for installation?
Only a standard wrench is needed for installation; no dies or pneumatic tools are required.
What safety precaution is necessary before installation?
The circuit must be de-energized before beginning the installation process of the shear bolt connection system.
Are the shear bolts pre-lubricated?
Yes, the shear bolt connectors come with pre-lubricated bolts to aid in installation.
Does the product meet industry standards?
Yes, the Elastimold advanced shear bolt connection system meets the latest revision of IEEE 386.
What is the conductor size range for the connectors?
The system accommodates multiple wire sizes from #2 AWG to 1500 kcmil. Note that 1500 kcmil is only applicable for 35 kV systems.
Are the shear bolts pre-lubricated?
Yes, the shear bolt connectors come with pre-lubricated bolts to aid in installation.
How to Install the K655LR-LAC02 Shear Bolt Connector
Instructions for installing the K655LR-LAC02 shear bolt connector onto electrical cables.
Estimated time: 30m
Tools needed:
Hexagon socket (AF 3/4” or SW19), Wire brush, Cable accessory installation instructions
Supplies needed:
Center ring, K655LR-LAC02 shear bolt connector, Cable
- Inspect and Prepare
DANGER: Ensure all apparatus is de-energized before proceeding. Inspect the package contents for completeness and damage. Check all components for proper fit with the cable and mating products. Have all required tools at hand and maintain cleanliness.
- Insert Center Ring
Insert the appropriate center ring into the barrel of the K655LR-LAC02 connector. Refer to the table in the installation instructions to determine the correct center ring for aluminum or copper conductors of 350/500/750 AWG-KCMIL.
- Prepare Cable
Prepare the cable as specified in the instructions accompanying the applicable cable accessory. Clean the conductor using a wire brush immediately before inserting it into the barrel.
- Initial Bolt Tightening
Torque bolt #1 with slow, steady turns until it makes contact with the conductor. Repeat this process for bolts #2 and #3.
- Shear Bolts
Using the specified hexagon socket, and starting with bolt #1, apply torque alternately to each bolt until the head shears off. It is recommended that the connector barrel be held securely in place during this process. CAUTION: Do not use impact guns. Do not touch or move energized products in the work area.
- Verify Bolt Shearing
If the bolts do not shear off flush with the connector barrel, manual rework is required. Contact Elastimold® technical services for assistance.
