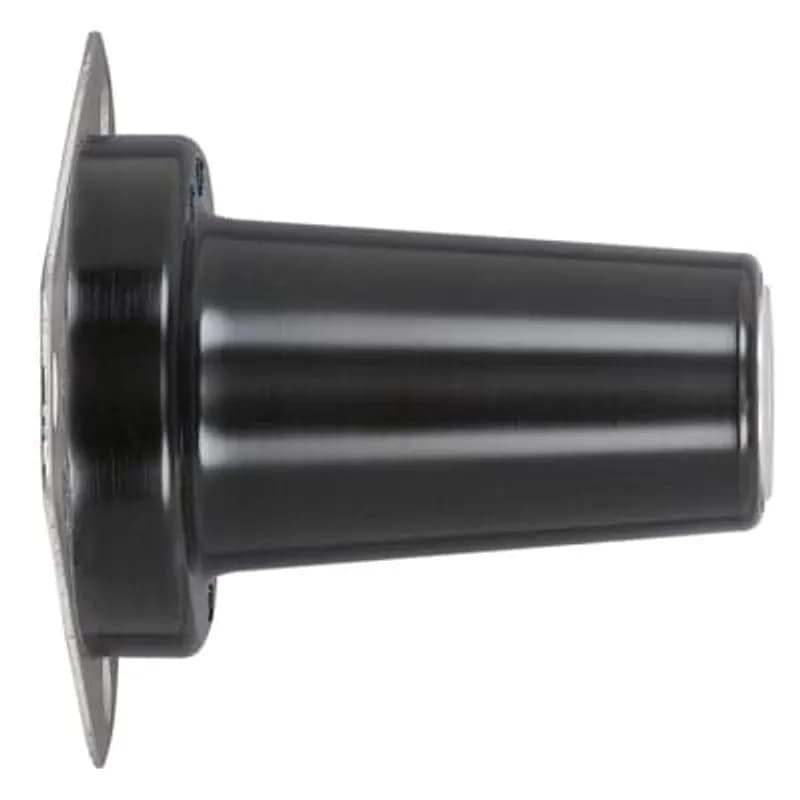

ABB Installation Products K650LBM-3 25kV 600 Series Deadbreak Mountable Insulated Bushing. With 3-Hole Flange
UPC: 783786666812
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 25kV rated insulated bushing for medium-voltage applications
- 3000A continuous current rating with 65kAIC interrupting capacity
- Deadbreak design enables safe circuit disconnection under load
- 3-hole flange for secure mounting to switchgear and transformers
- Top or bottom cable access for flexible installation
Specifications
Application | The Elastimold K650LBM3 mountable insulated bushing comes with the cam-op connector kit. It has three holes for mounting using three threaded bolts |
Material | EPDM-Rubber |
Mounting Type | Deadbreak Mountable |
Series | 600 Series |
Size | 3.00 inch (76.2 mm) Diameter, 3.89 inch (98.8 mm) Length |
Size | 600 Series |
Special Features | 25kV 600 Amp Deadbreak rated Mountable Bushing Interface. Provision for mounting using bolts. Allows de-energized connection of 600 Amp elbows and bushing extenders for cam-op connectors. For use on 25kV systems |
Standard | ANSI/IEEE Standard 386 |
Type | Insulated Bushing |
Voltage Rating | 25kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
650VSA
15/25kV 600 Amp Series Elbow Deadbreak Connector, Vault Stretcher Threaded Stud, 2.78 inches (70.6 mm) long, 5/8 - 11 UNC-2A Thread on Both Ends.Frequently Asked Questions
What is the voltage rating of the ABB K650LBM-3 bushing?
The ABB K650LBM-3 insulated bushing has a 25kV operating voltage rating.
What type of mounting does the K650LBM-3 bushing feature?
The K650LBM-3 features a deadbreak mountable design with a 3-hole flange for secure installation.
Who is the manufacturer of the K650LBM-3 bushing?
The K650LBM-3 bushing is manufactured by ABB - Installation Products.
What series does the ABB K650LBM-3 bushing belong to?
The ABB K650LBM-3 bushing belongs to the 600 Series.
How to Install the LINK-C Deadbreak Cam Link Operable Connector System
This guide provides step-by-step instructions for the installation and initial setup of the LINK-C 600 amp deadbreak cam link operable connector system, including mounting, wiring, and grounding procedures.
Estimated time: 1h 30m
Tools needed:
Torque wrench with 1-inch hex socket, Hot stick, Wire strippers, Suitable tool for 1-inch hex portion
Supplies needed:
ELASTIMOLD supplied lubricant, 600 amp elbow, #14 AWG or #12 AWG solid copper wire, Appropriate connector for grounding wire, Desired mating 200 amp product, Hardware for alignment bracket clamps
- Prepare and Install 600 Amp Elbow
Ensure all apparatus is de-energized before beginning installation. Inspect all components for damage and compatibility. Install the 600 amp elbow onto the cable according to the separate installation instructions provided with the elbow. Ensure it will align with the standoff plug.
- Install Bushing Extender
Clean and thoroughly lubricate the apparatus bushing and both interfaces of the 600 amp bushing extender using ELASTIMOLD supplied lubricant. Install the bushing extender onto the apparatus bushing. Insert the 600ATM into the retainer contact, engage the internal hex broach, and thread into the apparatus bushing using a suitable tool applied to the 1-inch hex portion. Torque to 50-60 ft-lbs.
- Install Elbow onto Epoxy Standoff Plug
Clean and thoroughly lubricate the epoxy standoff plug and both interfaces of the 600 amp elbow with ELASTIMOLD supplied lubricant. Install the elbow onto the epoxy standoff plug. Insert the 600AMT into the retainer contact, engage the internal hex broach, and thread into the epoxy standoff plug through the compression lug hole using a suitable tool applied to the 1-inch hex portion. Torque to 50-60 ft-lbs.
- Install Alignment Bracket
Remove the bushing extender clamp and elbow clamp from the alignment bracket. Position the alignment bracket on the bushing extender 2.5 inches (63.5mm) from the grounding eye. Assemble the bushing extender clamp to the alignment bracket with the supplied hardware, alternating sides until clamp tabs are flush and tight.
- Secure Elbow in Alignment Bracket
Position the elbow in the alignment bracket so that the elbow cuff is lined up evenly with the bushing extender cuff. Assemble the elbow clamp to the alignment bracket with the supplied hardware, alternating sides until clamp tabs are flush and tight. Ensure the elbow clamp notch faces the cable entrance of the elbow.
- Install the LINK-C Connector
Clean and thoroughly lubricate both 600 ampere interfaces of the LINK-C with ELASTIMOLD supplied lubricant. Align the LINK-C so it is perpendicular to the switch faceplate when inserted. Insert the LINK-C into the bushing extender and elbow, ensuring both lever arms are inside the alignment bracket legs. Engage the pivot pin into the slots in the alignment bracket legs. While pushing inward, move the lever arms downward using a hot stick eye to engage the roller pin and move the LINK-C inward until the lever arms are perpendicular to the alignment bracket leg.
- Grounding and Mating Product Installation
Ground the elbow by feeding a #14 AWG or #12 AWG solid copper wire through the grounding eye, twisting it tight, and connecting it to ground. Clean and lubricate the 200 amp interface on the LINK-C. Ground the cable (twist concentric neutral wires or connect ground lead from 20/21MA device to ground). For three-phase installations, tie all grounds from all three phases to a common ground point. Install the desired mating 200 amp product on the 200 amp interface according to its specific installation instructions.
