ABB - Installation Products K655VS-L4 - 600 Amp, 15/25kV, 600 Series Deadbreak 4-Way VS-Kit.

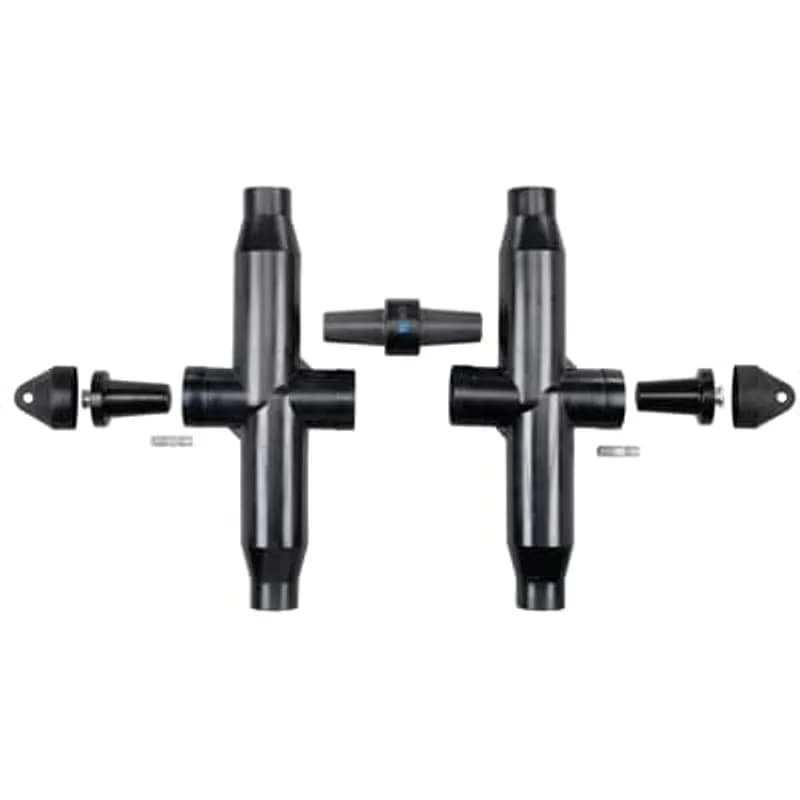

ABB Installation Products K655VS-L4 600 Amp, 15/25kV, 600 Series Deadbreak 4-Way VS-Kit.

UPC: 783786368655


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB K655VS-L4 600 Amp, 15/25kV 4-Way Deadbreak VS-Kit is a high-voltage termination kit designed for reliable, safe connections in medium-voltage distribution systems. This 600 Series kit supports applications up to 25kV, making it ideal for utility, industrial, and commercial installations where dependable performance is critical. The deadbreak design allows for hot-stick operation, enabling safe maintenance without power interruption. With a 600 Amp continuous current rating, it handles heavy loads in demanding environments. The 4-way configuration simplifies multi-circuit terminations, reducing installation time and complexity. Compatible with 15kV and 25kV class cables, the K655VS-L4 meets industry standards for medium-voltage accessories, ensuring long-term reliability. ABB’s Installation Products line delivers engineered solutions for power distribution challenges, with a focus on safety and efficiency.
  • 600 Amp continuous current rating for high-load applications
  • Supports 15kV and 25kV class cables
  • 4-way deadbreak design enables hot-stick operation
  • 600 Series compatibility with ABB termination systems
  • Designed for safe, reliable medium-voltage cable terminations

Specifications

Application
15/25 kV, 600 Amps
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
4-Way Vault Stretcher Kit
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.

150-TB-2

15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
HMI door mounting kit with 15M cable

181B2258

HMI door mounting kit with 15M cable
Polarizing Cover / Hermaphroditic Cover, Black, Nylon, 8 Position, AMPMODU IV/V

103350-4

Polarizing Cover / Hermaphroditic Cover, Black, Nylon, 8 Position, AMPMODU IV/V
35kV 600 Series Deadbreak Vault Stretcher (Housing Only with Stud)

755BVS

35kV 600 Series Deadbreak Vault Stretcher (Housing Only with Stud)
600 Amp, 15/25kV, 600 Series Deadbreak 3-Way VS-Kit.

K655VS-L3

600 Amp, 15/25kV, 600 Series Deadbreak 3-Way VS-Kit.
35kV 600 Series Deadbreak Cam-Op Alignment Bracket

750CAB

35kV 600 Series Deadbreak Cam-Op Alignment Bracket
600 Amp, 15/25kV, 600 Series Deadbreak 2-Way VS-Kit.

K655VS-L2

600 Amp, 15/25kV, 600 Series Deadbreak 2-Way VS-Kit.
35kV 600 Series Deadbreak Vault Stretcher Threaded Stud

750VSA

35kV 600 Series Deadbreak Vault Stretcher Threaded Stud

Frequently Asked Questions

What is the continuous current rating of the K655VS-L4?

The K655VS-L4 has a continuous current rating of 600 Amps.

Which ABB series does the K655VS-L4 belong to?

The K655VS-L4 is part of ABB’s 600 Series Deadbreak VS-Kits.

Is the K655VS-L4 compatible with hot-stick operations?

Yes, the deadbreak design allows for safe hot-stick operation during maintenance without power interruption.
