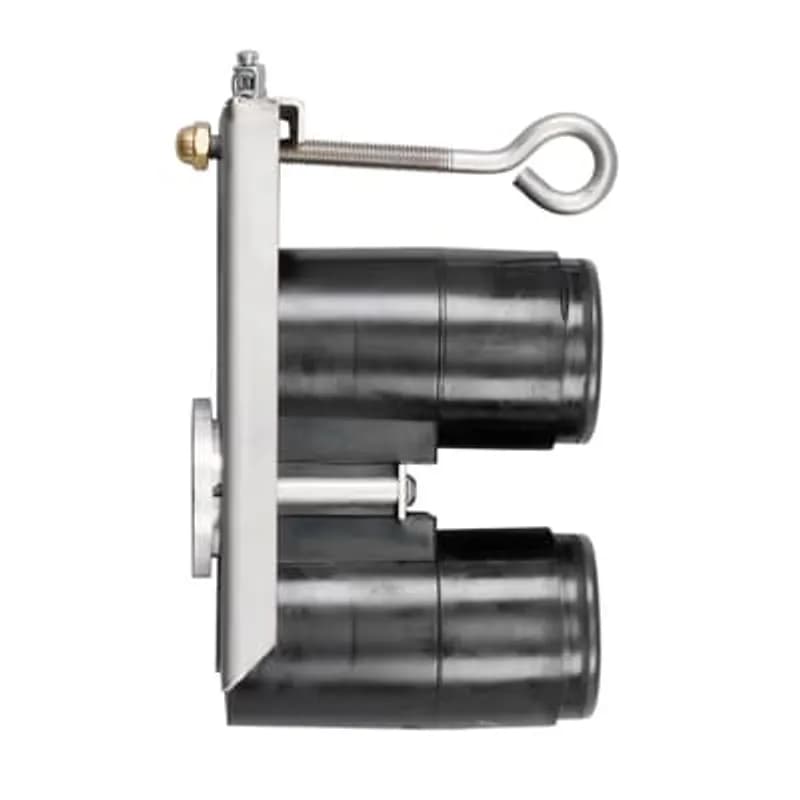

ABB Installation Products K1601WFTV 15/25 kV, 200 Amp, Loadbreak, Feed-Thru Well Bracket, Vertical
UPC: 783786351022
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25 kV rated voltage for medium-voltage applications
- 200 Amp continuous current capacity
- Loadbreak functionality for energized connections
- Vertical orientation for space-efficient installations
- Compatible with standard well interfaces in pad-mounted gear
Specifications
Application | 15/25 kV, 200 Amps |
Special Features | Vertical |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -4 F |
Temperature Rating, Minimum | -20 C |
Type | Feed-Thru Well |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0400 L |
Package Weight (Metric) | 0.0180 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
K1601WJ4-5
15/25kV 200 Amp, loadbreak 4-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.
M276BWP
35kV 200 Amp, Loadbreak Bushing Well Plug, Includes Lubricant and Instructions. EPDM Peroxide Insulation. Does Not have the following: Ground Cable, Rivet, Bail Assembly, Spring Plunger or Wiper.
150BA
15/25kV 200 Amp, Deadbreak Bail Assembly for 156LR Elbow. Hold-Down Bail and EyeBolt. 3 inch Inside Width on Bail. 500 Pounds Minimum.
1601A4
15kV 200 Amp, Loadbreak Bushing Insert, Includes internal torquing feature using 200AT Assembly Tool.Frequently Asked Questions
What is included in the K1601WFTV kit?
Each kit contains one K1601WFTV feed-thru body, two lubricants (82-08), and one installation instruction (IS-0505).
What is the K1601WFTV product?
The K1601WFTV is a 15/25kV 200A Loadbreak Vertical Feed-Thru Well, designed as a space-saving, fully shielded, and submersible insulated connector.
What are the primary applications of the K1601WFTV?
It is used in congested areas inside transformers or switchgear, provides a circuit junction point, and allows replacement of damaged bushings. It can also isolate and "dead-end" circuits.
What voltage classes does the K1601WFTV support?
The K1601WFTV supports both 15kV and 25kV voltage classes for loadbreak and/or deadbreak bushing inserts.
What is the maximum operating voltage for the 15kV class?
For the 15kV class, the maximum phase-to-ground operating voltage is 8.3kV, and the maximum phase-to-phase is 14.4kV.
What is the maximum operating voltage for the 25kV class?
For the 25kV class, the maximum phase-to-ground operating voltage is 15.2kV, and the maximum phase-to-phase is 26.3kV.
What is the continuous current rating of the K1601WFTV?
The K1601WFTV has a continuous and loadbreak current rating of 200 Amps for both 15kV and 25kV voltage classes.
What ANSI/IEEE standard does this product meet?
The K1601WFTV meets ANSI/IEEE Standard 386, Latest Revision.
What Elastimold products are compatible with K1601WFTV?
It is designed to mate with Elastimold® 1601A4 Loadbreak Bushing insert, 2701A4 Loadbreak Bushing insert, and K1501A1 Deadbreak feed-thru insert.
What type of insulation does the K1601WFTV use?
The K1601WFTV features peroxide-cured insulation and jacket.
How to Install the K1601WFTV Well Feed-Thru/Grounding Device
This guide provides step-by-step instructions for the safe installation and initial setup of the K1601WFTV Well Feed-Thru/Grounding Device, including grounding, preparing bushing wells, and mounting.
Estimated time: 45m
Tools needed:
Hotstick, Screwdriver, Wire strippers
Supplies needed:
Mounting hardware, Lubricant, No. 14 copper wire, Elastimold bushings, Insulated caps or plugs
- Ensure De-energized State and Inspect Components
Before beginning, ensure all apparatus is de-energized to prevent serious injury or fatality. Inspect all parts of the K1601WFTV package for completeness, damage, proper rating, and compatibility with mating products. Confirm all required tools are at hand and maintain cleanliness throughout the procedure. This product must only be installed by competent personnel trained in high voltage electrical equipment safety practices.
- Connect the Ground Lead
Insert a No. 14 copper wire or equivalent ground lead into the grounding lug provided on the mounting hardware. Tighten the lug securely. Connect the opposite end of the ground lead to a reliable ground source, ensuring enough slack is left to allow operation with a hotstick.
- Prepare Bushing Wells and Install Bushings
Remove the protective shipping caps from the bushing wells. Carefully inspect the bushing wells to ensure they are dry and free from all contaminants. Lubricate the well interface area using only the supplied lubricant or an ELASTIMOLD approved lubricant; do not substitute. Install the appropriate bushings into the wells, following the specific installation instructions provided with the bushings. IMPORTANT: Protective shipping caps must not be on the bushing wells when the feed-thru is in use.
- Mount the Feed-Thru onto the Parking Stand
Firmly attach the feed-thru eye to a hotstick. Using the hotstick, carefully slide the feed-thru onto the parking stand. Unlock the hotstick and back it off slightly to create space for tightening the eyebolt. Rotate the hotstick clockwise to tighten the eyebolt until it is snug; do not overtighten. Release the hotstick.
- Prepare Operating Interfaces for Energization
Remove any remaining protective shipping caps from the operating interfaces and clean them thoroughly. Apply silicone lubricant (do not substitute) before assembling with any ELASTIMOLD product. WARNING: If all operating interfaces are not utilized, an ELASTIMOLD insulated cap or insulated plug MUST be installed before energizing the circuit. Do not use the protective shipping covers for this function as they are not insulated.
