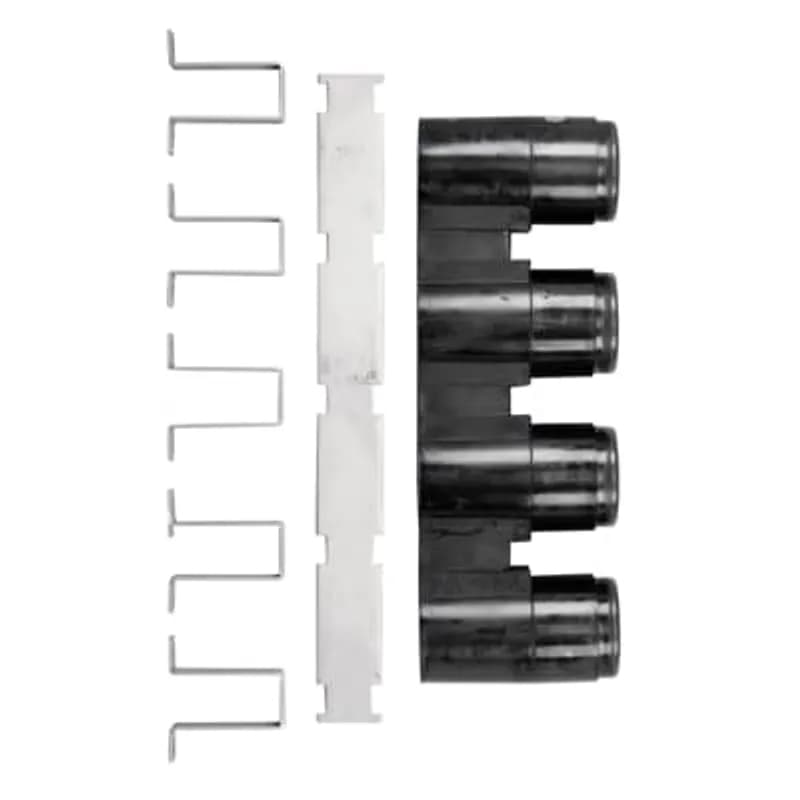

ABB Installation Products K1601WJ4-5 15/25kV 200 Amp, loadbreak 4-way Well Junction with U Straps, Hardware package consists…
UPC: 783786664177
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25kV voltage class with 200 Amp continuous and loadbreak current rating
- Fully shielded, fully submersible molded rubber housing with peroxide-cured EPDM materials
- Meets ANSI/IEEE Standard 386 with 95kV BIL (15kV) and 125kV BIL (25kV) impulse withstand
- Designed to mate with Elastimold® Elbow connectors (1601A4, 2701A4, 1602A3R, 276BWP)
- Includes U-straps, back plates, lubricant tube, and installation instructions
Specifications
Application | 15/25 kV, 200 Amps |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -4 F |
Temperature Rating, Minimum | -20 C |
Type | Well Junction 4-Way |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
150-TB-2
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
M276BWP
35kV 200 Amp, Loadbreak Bushing Well Plug, Includes Lubricant and Instructions. EPDM Peroxide Insulation. Does Not have the following: Ground Cable, Rivet, Bail Assembly, Spring Plunger or Wiper.150BA
15/25kV 200 Amp, Deadbreak Bail Assembly for 156LR Elbow. Hold-Down Bail and EyeBolt. 3 inch Inside Width on Bail. 500 Pounds Minimum.
1601A4
15kV 200 Amp, Loadbreak Bushing Insert, Includes internal torquing feature using 200AT Assembly Tool.
1601EA4
15kV 200 Amp, Loadbreak Extended Bushing Insert, Includes internal torquing feature using 200AT Assembly Tool.
200TC-4
15-35kV 200 Amp, Loadbreak Direct Voltage Test Port Adapter for all Loadbreak or Deadbreak connectors with a direct access port to a maximum line-to-ground voltage of 21.1kV. It is designed for use with CHANCE Auto-Ranging Voltage Indicator, Catalog No. C403-3374 only. Includes Direct Voltage Test Port Adapter, Tube of Lubricant and Operating Instructions.Frequently Asked Questions
What are the main specifications of the K1601WJ4-5 junction?
The K1601WJ4-5 is a 15/25kV, 200 Amp Loadbreak 4-Way Well Junction.
What is the operating voltage for the 25kV class system?
For the 25kV voltage class, the maximum operating voltage is 15.2kV Phase-to-Ground.
How do I order the K1601WJ4-5 junction?
Specify K1601WJ4-5 for the 15/25kV, 200 Amp, 4-way Loadbreak Junction.
What is the momentary and fault close rating for the junction?
The momentary and fault close rating is 10kA Symmetrical for 10 cycles.
What is the continuous and loadbreak current rating?
The continuous and loadbreak current rating is 200 Amp for both 15kV and 25kV classes.
What is the operating voltage for the 15kV class system?
For the 15kV voltage class, the operating voltage is 8.3kV Phase-to-Ground.
What specific Elastimold products are compatible with this junction?
It is designed to mate with Elastimold products including 1601A4, 2701A4, 1602A3R, and 276BWP.
What voltage systems is this junction suitable for?
It is suitable for use on 15/25kV class systems.
What connectors is the K1601WJ4-5 compatible with?
It provides mating for Elastimold® Elbow connectors through various inserts.
What items are included in the K1601WJ4-5 kit?
The kit includes one basic molded junction K1601WJ4-4, mounting hardware K1601WJ4-5, one tube of lubricant 82-08, and installation instruction IS-0443.
How to Install the K1601WJ4-5 Two--, Three--, and Four--Point Well Junctions
Installation guide for mounting and wiring the K1601WJ4-5 well junctions. These junctions are used for sectionalizing, looping, tapping, or apparatus change out.
Estimated time: 45m
Tools needed:
Drill, Screwdriver, Wire strippers
Supplies needed:
Mounting hardware, Grounding lug (if mounting surface is insulating), 14 AWG minimum ground wire, Silicone lubricant
- Determine location and drill mounting holes
Select the desired location for the junction assembly. Drill holes in the mounting surface according to the dimensions provided in the documentation. Ensure the holes are the correct diameter for mounting.
- Assemble and mount the well junction
Assemble the well junction, shield plate, and hold down brackets using the supplied fasteners. Attach the assembly to the flat mounting surface. Tighten all fasteners securely to prevent movement during operation.
- Ground the assembly
Ensure the shield plate, hold down brackets, and black conductive rubber shield are properly grounded. If the mounting surface is conductive and grounded, no additional grounding is needed. If the mounting surface is insulating, attach a grounding lug (not provided) with one of the mounting bolts and connect a 14 AWG minimum ground wire to the lug and a ground bus.
- Prepare for operation
Remove any protective shipping caps from the operating interfaces and clean them. Apply silicone lubricant (do not substitute) to the operating interfaces before assembly with an ELASTIMOLD product. If not all operating interfaces will be utilized, install an ELASTIMOLD insulated cap or insulated plug on the unused interface(s) before energization. Do not use the protective shipping covers for this purpose.
