Contact for Pricing
Overview

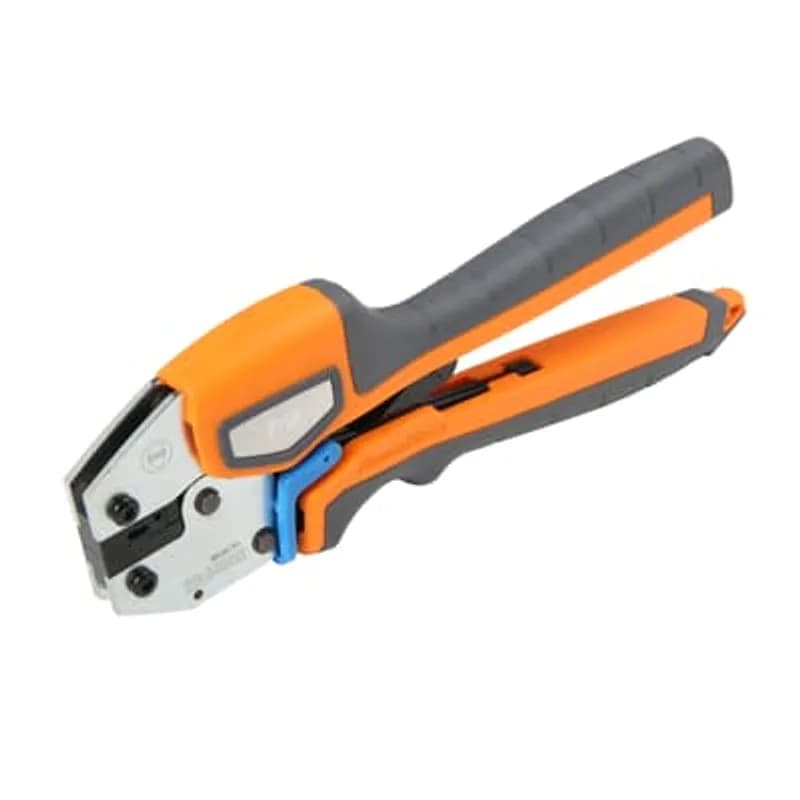

- Designed for 22L002 series Dragon Tooth® magnet wire connectors
- Compatible with 26-22 AWG copper wire applications
- Overmolded soft grips for reduced operator fatigue
- Shure Stake® release lever for quick terminal removal
- Integrated crimp assist foot for stable operation
Specifications
Application | Crimping Dragon Tooth terminal for magnet wire |
Special Features | Shure-Stake mechanism ensures a complete crimp cycle before the tool releases |
Type | Manual Crimp Tool |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.2500 L |
Package Weight (Metric) | 0.5670 kg |
NSI-12
12-Ton Compression Tool for U-Type Dies APPLICATIONS: Delivers 12 tons of hydraulic force. It has a 1 1/2" jaw opening for large conductors and taps with automatic two-speed pump action for rapid ram advancement. It features a 180 degree head rotation and fast ram release with the twist of the handle. It accepts all standard U-Type dies.
952050-E
Commercial Crimp Tooling, Removable/Interchangeable, Manual, Crimp Tool, ERNI MaxiBridge, Hand Crimping Tools
CT-720
Manual crimping tool for UL Listed or Recognized and CSA Certified terminations of Panduit copper compression lugs and splices for #8 AWG 500 kcmil copper code conductor and aluminum compression lugs and splices for #6 AWG 350 kcmil copper and aluminum code conductors. Provides UL Listed terminations of Panduit Pan-Term #8 2 AWG vinyl insulated terminals.Color-coded CD-720 crimping dies, carrying/storage case, and controlled cycle mechanism must be purchased separately.Specifications:Output: 6 tonsWeight: 7.7 lbs.Length: 26"Handle span: 58" (open), 2.5" (closed)
How to Use the ERG4802 Crimping Tool
This guide provides instructions for the safe and effective use of the ERG4802 hand-operated crimping tool. It covers the process of installing Thomas & Betts insulation piercing connectors on magnet wire, including preparation, crimping, inspection, and essential maintenance.
Estimated time: 30m
Tools needed:
ERG4802 Crimping Tool, File, Standard Micrometer or Ball Micrometer
Supplies needed:
Thomas & Betts Insulation Piercing Connectors (e.g., 22L002 series), Magnet Wire (e.g., (6) #20 Cu), Safety Glasses, Clean brush or soft, lint-free cloth, SAE No. 20 motor oil
- Familiarize with Tool and Safety Precautions
Read and understand all instructions and safety information in this manual before operating the ERG4802 crimping tool. Always wear safety glasses. Never attempt to make a connection to a "hot" line; always determine if any electrical hazard exists before connecting to a line or wire. Keep all body parts away from the die nest during gaging or crimping procedures.
- Prepare Connector and Wires for Crimping
Refer to the instruction sheet enclosed with your specific Thomas & Betts insulation piercing connectors. Select the proper connector to be installed on the wire(s) and ensure you are using the correct installing tool (ERG4802 for 22L002 series connectors with (6) #20 Cu wire). Open the tool handles fully. For convenience, partially close the handles until the indentor die touches the connector before placing wires.
- Position Connector and Insert Wires
Position the connector barrel in the center of the die nest, ensuring the bottom of the barrel rests on the die indentor and the open end of the barrel faces into the die nest. Carefully insert the wire(s) into the connector. Always refer to the connector instruction sheet for proper wire arrangement.
- Perform the Crimping Operation
Compress the connector by firmly squeezing the tool handles until the SHURE STAKE® mechanism cycle has been completed. This mechanism prevents the dies from opening until a preset crimping pressure is reached, ensuring a proper crimp. Release the handles to open the tool.
- Remove and Inspect the Crimped Connection
Remove the crimped connector from the tool. With a file, carefully remove any flash from the connector edges. Periodically, measure the connector gaging with a standard micrometer (or ball micrometer for 22L006 series) to ensure the connection meets acceptable standards, as continuous tool use can cause wear and increase gaging.
- Maintain the ERG4802 Crimping Tool
Regularly check the tool's operation for proper adjustment. Remove dust, moisture, and other contaminants with a clean brush or soft, lint-free cloth. Apply a thin coat of SAE No. 20 motor oil to all pins, pivot points, and bearing surfaces, avoiding excessive oiling. Keep the handles closed when not in use to prevent objects from becoming lodged in the dies, and store the tool in a cool, dry area.
