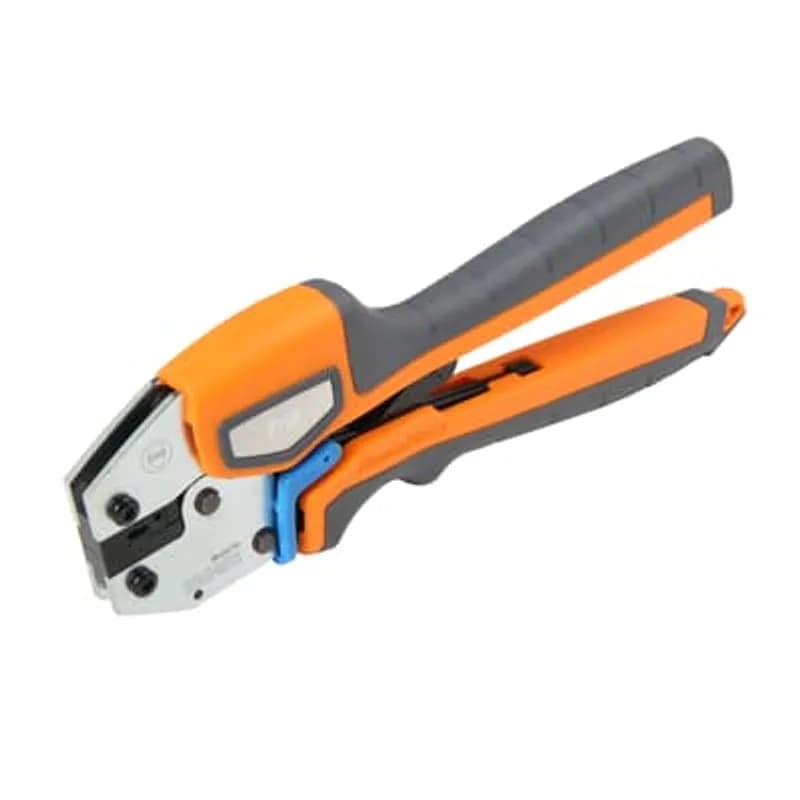

ABB Installation Products ERG4811 Ergonomic Hand Tool for Crimping 214420 Series Terminals
UPC: 786209994431
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Designed for crimping ABB 214420 Series terminals
- Ergonomic design reduces operator hand fatigue
- Ensures consistent and reliable wire-to-terminal connections
- Part of ABB's trusted Installation Products portfolio
- Ideal for industrial, commercial, and residential electrical systems
Specifications
Application | Crimping Dragon Tooth terminal for magnet wire |
Special Features | Shure-Stake mechanism ensures a complete crimp cycle before the tool releases |
Type | Manual Crimp Tool |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.8700 L |
Package Weight (Metric) | 0.8480 kg |
NSI-12
12-Ton Compression Tool for U-Type Dies APPLICATIONS: Delivers 12 tons of hydraulic force. It has a 1 1/2" jaw opening for large conductors and taps with automatic two-speed pump action for rapid ram advancement. It features a 180 degree head rotation and fast ram release with the twist of the handle. It accepts all standard U-Type dies.
952050-E
Commercial Crimp Tooling, Removable/Interchangeable, Manual, Crimp Tool, ERNI MaxiBridge, Hand Crimping Tools
CT-720
Manual crimping tool for UL Listed or Recognized and CSA Certified terminations of Panduit copper compression lugs and splices for #8 AWG 500 kcmil copper code conductor and aluminum compression lugs and splices for #6 AWG 350 kcmil copper and aluminum code conductors. Provides UL Listed terminations of Panduit Pan-Term #8 2 AWG vinyl insulated terminals.Color-coded CD-720 crimping dies, carrying/storage case, and controlled cycle mechanism must be purchased separately.Specifications:Output: 6 tonsWeight: 7.7 lbs.Length: 26"Handle span: 58" (open), 2.5" (closed)
TBM15CR-LI
15-Ton Lithium-Ion Battery Closed Crimp Tool for Crimping #8-1500 kcmil Copper, #10-1250 kcmil Aluminum Connectors. 23.5 inch high x 3.5 inch wide x 10.5 inch high. Includes 18 V DC, 5.0 Ah Battery. Weight 19.8 pounds with Battery.
TBM14CR-LI
14-Ton Lithium-Ion Battery Open Crimp Tool for Crimping #8-900 kcmil Copper, #10-750 kcmil Aluminum Connectors. 22 inch long x 3.5 inch wide x 10.5 inch high. Includes 18V, 5.0Ah Battery. Weight 17.8 pounds with Battery.
How to Use the ERG4811 Crimping Tool
This guide provides instructions for safely operating the ERG4811 hand-operated crimping tool to install Thomas & Betts insulation piercing connectors on magnet wire, ensuring proper crimping and connection quality.
Estimated time: 30m
Tools needed:
ERG4811 Crimping Tool, Safety Glasses, File, Standard Micrometer, Ball Micrometer, Clean Brush or Soft Lint-Free Cloth
Supplies needed:
Thomas & Betts Insulation Piercing Connectors, Magnet Wire, SAE No. 20 Motor Oil
- Read Safety Information and Familiarize with Tool
Before operation, read and understand all safety information and instructions in the manual. Wear safety glasses. Never attempt to make connections to energized lines. WARNING: Handles are non-insulating. Do not crimp on hot energized wires.
- Select Connector and Tool
Refer to the instruction sheet enclosed with the connectors. Select the proper Thomas & Betts insulation piercing connector for your application and ensure you are using the correct installing tool (ERG4811 for 214420 connectors).
- Prepare the Crimping Tool
Open the tool handles fully. For convenience, before placing wire(s) in the connector, partially close the handles of the tool until the indentor die touches the connector.
- Position Connector and Insert Wires
Position the connector barrel in the center of the die nest with the bottom of the barrel resting on the die indentor and the open end facing into the die nest. Insert the magnet wire(s) into the connector, referring to the connector instruction sheet for proper wire arrangement.
- Perform the Crimp
Compress the connector by squeezing the tool handles firmly until the SHURE STAKE® mechanism cycle has been completed. Release the handles to open the tool and remove the crimped connector. WARNING: Keep all body parts away from the die nest during crimping procedure.
- Check Connector Gaging
After crimping, remove any flash from the connector edges using a file. Measure the connector gaging with a standard micrometer or ball micrometer to ensure it meets the specified maximum gaging for acceptable connections (e.g., 0.103 for ERG4811 with 214420 connector). If gaging exceeds the specific value, discontinue use of the tool and contact service for calibration.
- Maintain the Tool
Periodically clean the tool by removing dust, moisture, and contaminants with a clean brush or soft, lint-free cloth. Apply a thin coat of SAE No. 20 motor oil to all pins, pivot points, and bearing surfaces, avoiding excessive oiling. Keep handles closed when not in use to prevent objects from becoming lodged in the crimping dies. Store the tool in a cool, dry area.
