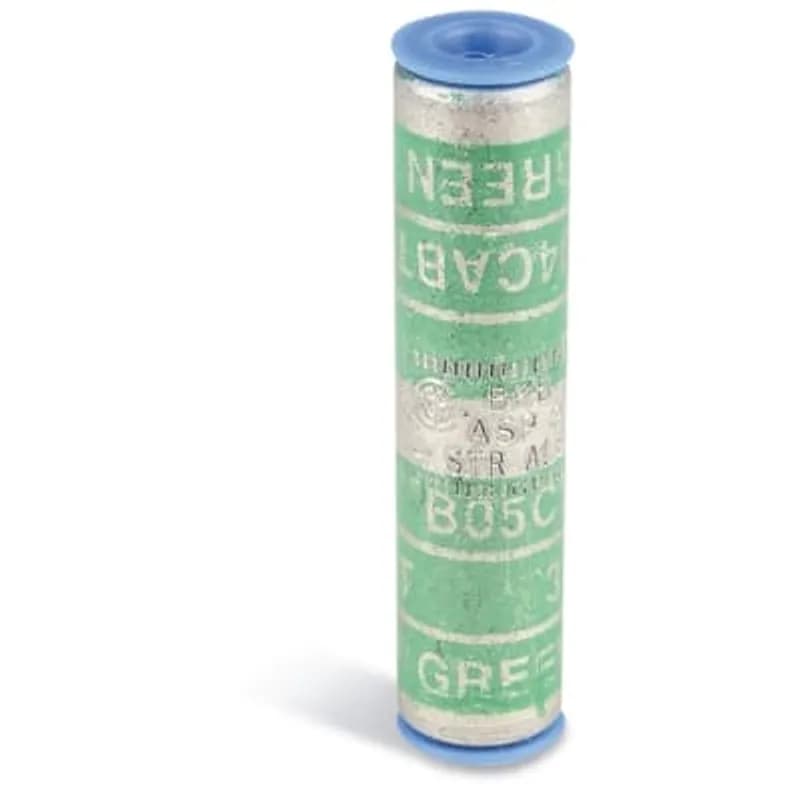

ABB - Installation Products ASP20 - Type ASP Aluminum Splice, Wire Size Max 35kV, Wire Size 2/0 Str, Length 2-1/2 Inch, Tin Plated, Die Color Code Olive
ABB - Installation Products

ASP20

UPC: 783786610662

Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Overview

The ABB Type ASP Aluminum Splice (SKU: ASP20) is designed for reliable electrical connections in medium voltage applications. This splice is rated for wire sizes up to 35kV, accommodating 2/0 stranded aluminum conductors. Its compact design features a 2-1/2 inch length, facilitating installation in confined spaces. The tin-plated surface ensures excellent conductivity and corrosion resistance, critical for long-term performance in electrical systems. The olive die color code indicates compatibility with specific crimping tools, ensuring proper application and connection integrity. This component is manufactured by ABB - Installation Products, a recognized provider of electrical infrastructure solutions. The UNSPSC code 39121449 categorizes this product within electrical connectors and splicing devices. Proper installation with the correct tooling is essential for achieving the rated performance and ensuring the safety and reliability of the electrical circuit. This splice is suitable for use in power distribution, utility, and industrial electrical infrastructure where secure and durable aluminum conductor connections are required.
  • Manufacturer: ABB - Installation Products
  • SKU: ASP20
  • Wire Size Max: 35kV
  • Wire Size: 2/0 Stranded Aluminum
  • Length: 2-1/2 Inch
  • Plating: Tin Plated
  • Die Color Code: Olive

Specifications

Color
Olive
Finish
Tin Plated
Material
Aluminum
Series
ASP
Size
2/0 Str, Length 2-1/2 Inch
Special Features
Made of high-conductivity seamless aluminum tubing. Tin plated for corrosion resistance
Standard
UL E9809
Type
Aluminum Splice
Voltage Rating
35 kV
Package Dimensions (L x W x H)
3.3 IN x 2.8 IN x 2.3 IN
Package Dimensions (L x W x H)
8.382 cm x 7.112 cm x 5.842 cm
Package Weight (Imperial)
0.0700 L
Package Weight (Metric)
0.0320 kg
1 HoleStandard BarrelAluminum Compression Lug4 AWG - 1/4 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

AL4-14

1 HoleStandard BarrelAluminum Compression Lug4 AWG - 1/4 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Two-Way Aluminum Splice Connector, Wire Size 400 kcmil, Die Code 94, Die Color Code Green

60568

Two-Way Aluminum Splice Connector, Wire Size 400 kcmil, Die Code 94, Die Color Code Green
Aluminum Compression Splice, Tin-Plated to inhibit corrosion, high conductivity thick wall aluminum, Factory pre-filled joint compound and sealed with easy pull-out end plug to inhibit corrosion, Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection, Internal solid stop prevents over-insertion of conductor, UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with Panduit and specified competitor crimping tools and dies.

SA4-CR

Aluminum Compression Splice, Tin-Plated to inhibit corrosion, high conductivity thick wall aluminum, Factory pre-filled joint compound and sealed with easy pull-out end plug to inhibit corrosion, Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection, Internal solid stop prevents over-insertion of conductor, UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with Panduit and specified competitor crimping tools and dies.
Type ASP Aluminum Splice, Max 35kV, Wire Size 2 Str, Length 1-7/8 Inch, Tin Plated, Die Color Code Pink

ASP2

Type ASP Aluminum Splice, Max 35kV, Wire Size 2 Str, Length 1-7/8 Inch, Tin Plated, Die Color Code Pink
Type ASP Aluminum Splice, Max 35kV, Wire Size 250 kcmil, Length 4 Inch, Tin Plated, Die Color Code Red

ASP250

Type ASP Aluminum Splice, Max 35kV, Wire Size 250 kcmil, Length 4 Inch, Tin Plated, Die Color Code Red
Type ASP Aluminum Splice, Max 35kV, Wire Size 3/0 Str, Length 2-7/8 Inch, Tin Plated, Die Color Code Ruby

ASP30

Type ASP Aluminum Splice, Max 35kV, Wire Size 3/0 Str, Length 2-7/8 Inch, Tin Plated, Die Color Code Ruby
Type ASP Aluminum Splice, Max 35kV, Wire Size 350 kcmil, Length 3-7/8 Inch, Tin Plated, Die Color Code Brown

ASP350

Type ASP Aluminum Splice, Max 35kV, Wire Size 350 kcmil, Length 3-7/8 Inch, Tin Plated, Die Color Code Brown
Type ASP Aluminum Splice, Max 35kV, Wire Size 4 Str, Length 1-7/8 Inch, Tin Plated, Die Color Code Green

ASP4

Type ASP Aluminum Splice, Max 35kV, Wire Size 4 Str, Length 1-7/8 Inch, Tin Plated, Die Color Code Green

How to Install ASP AL9CU Aluminum Compression Splices

This guide provides step-by-step instructions for installing ASP AL9CU aluminum compression splices on stranded aluminum and copper cables, ensuring a secure and safe electrical connection.

Estimated time: 15m

Tools needed:

Wire strippers, Wire brush, Crimping tool

Supplies needed:

ASP AL9CU aluminum compression splice, Electrical cable

  1. Prepare for Installation and Verify Components

    WARNING: Risk of shock, disconnect power before installation. CAUTION: Product should be installed by a qualified electrician in accordance with national and local electrical codes. Check the wire size marked on the aluminum splice to ensure it is the correct connector for the actual cable size to be used.

  2. Prepare the Cable

    Strip cable insulation taking care not to nick cable strands. Wire brush the cable side which will be inserted into the connector. WARNING: Do not remove oxide inhibitor from the splice barrel. Insufficient compound can result in an unsafe connection. This compound contains petroleum distillates and small metal particles. Avoid prolonged skin contact (Wash with soap and water).

  3. Connect and Crimp the Splice

    Fully insert the prepared cable into the connector. Refer to the Tool and Die Index to select the appropriate crimping tool and die combination for the cable size. Crimp the connector the number of times shown on the chart, spacing crimps uniformly along the splice, with the first crimp just outside the knurl on each side of the center.

  4. Finalize the Connection

    Wipe off any excess of oxide inhibitor from the splice.
