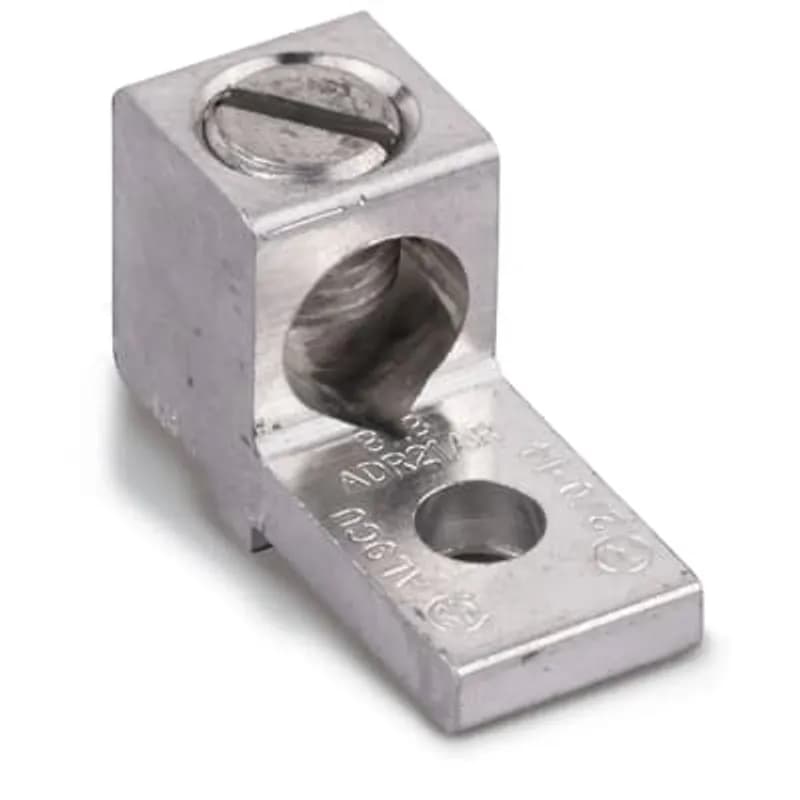

ABB Installation Products ADR21AR Type ADR-ALCUL Anti-Rotational Single-Conductor, One-Hole Mount, Conductor Range Max 2/0…
UPC: 783786149834
Contact for Pricing
Minimum Qty: 250
Multiplier: 250
*Contact for lower quantities*
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- Accommodates conductor range: 14 AWG to 2/0 AWG (stranded or solid)
- 1/4" bolt hole for standard mounting compatibility
- Anti-rotational design prevents conductor spin-out under vibration
- Tin-plated copper alloy construction for corrosion resistance
- Compact dimensions: 1¾" L x 1" W x 13/16" H
Specifications
Finish | Tinned |
Material | Aluminum |
Mounting Hole Spacing | 1/4 in |
Number of Conductors | 1 |
Number of Mounting Holes | 1 |
Special Features | Unique bottom rib keeps the conductor from turning. Eliminates the need for excessive torque, which can damage large conductors |
Standard | UL E9809 |
Type | Anti-Rotational Mechanical Connector |
Package Dimensions (L x W x H) | 4.2 IN x 3.1 IN x 2.8 IN |
Package Dimensions (L x W x H) | 10.668 cm x 7.874 cm x 7.112 cm |
Package Weight (Imperial) | 0.0300 L |
Package Weight (Metric) | 0.0140 kg |
TS350-2
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
PCSB4-3S-12Y
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
ADR35-21AR
Type ADR-ALCUL Anti-Rotational Two-Conductor, One-Hole Mount, Conductor Range Max 350 MCM, Min 6 AWG, 1/2 Inch Bolt Hole, Tin Plated
ADR352
ALCUL Aluminum Extruded Lug, Dual Rated Connector Copper and Aluminum, 90 Degrees Celsius, Single Connector, 1/2 Inch Bolt Hole Mount, Conductor Range 350 kcmil-6
ADR60AR
Type ADR-ALCUL Anti-Rotational Single-Conductor, One-Hole Mount, Conductor Range Max 600 MCM, Min 2 AWG, 1/2 Inch Bolt Hole, Tin Plated
ADR60-21AR
Type ADR-ALCUL Anti-Rotational Two-Conductor, One-Hole Mount, Conductor Range Max 600 MCM, Min 2 AWG, 1/2 Inch Bolt Hole, Tin Plated
622ML-SK3
Transformer Lug Kits - Mechanical For KVA Size 100-167 10, 150-300 30 Aluminum Wire Range 6-250, 350-800How to Install Blackburn Aluminum Dual Rated Connectors
This guide provides step-by-step instructions for safely installing Blackburn Aluminum Dual Rated Connectors with aluminum or copper conductors, including preparation, insertion, and proper torque application.
Estimated time: 30m
Tools needed:
Wire strippers, Wire brush, Torque wrench
Supplies needed:
Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound, Aluminum or Copper Conductors, Mounting hardware, Flat and Belleville washers
- De-energize the System
Before beginning any installation, ensure that the electrical system is completely de-energized to prevent electric shock or injury. Verify with appropriate testing equipment.
- Verify Conductor and Connector Compatibility
Check the conductor size marked on the connector to confirm it is the correct connector for the specific conductor size you are using.
- Strip Conductor Insulation
Carefully strip the conductor insulation to the length of the connector barrel, avoiding any damage to the conductor strands. Refer to Figure 1 for visual guidance on strip length.
- Prepare and Insert Conductor
Wire brush the conductor thoroughly. If using an aluminum conductor, apply Blackburn® Contax® Type CT or Weaver Type CP oxide inhibiting compound. Fully insert the prepared conductor into the connector barrel. Wipe off any excess oxide inhibitor. Refer to Figure 2 and 3.
- Tighten Connector Setscrew
Apply the recommended tightening torque to the setscrew in accordance with TABLE 1. The connector has one tightening torque range regardless of the conductor size it accommodates. Refer to Figure 4 for setscrew location.
- Apply Oxide Inhibitor to Flat Contact Surface
Prior to mounting the connector, apply Blackburn® Contax® Type CT or Weaver Type CP oxide inhibiting compound to the flat contact surface of the connector.
- Torque Mounting Hardware
Torque the mounting hardware to the values specified in TABLE 2. For best installation practice, use flat and Belleville washers in conjunction with the mounting hardware, although the connectors will perform satisfactorily without them. Refer to Figure 4.
