Overview
- Anti-rotational design for secure single-conductor connections
- Accommodates conductor sizes from 2 AWG to 600 MCM
- One-hole mount for stable installation
- 1/2 inch bolt hole for standard hardware compatibility
- Tin-plated for enhanced conductivity and corrosion resistance
Specifications
Finish | Tinned |
Material | Aluminum |
Material | Tin Plated |
Mounting Hole Spacing | 1/2 in |
Mounting Type | One-hole mount |
Number of Conductors | 1 |
Number of Mounting Holes | 1 |
Series | ADR-ALCUL |
Size | Conductor Range Max 600 MCM, Min 2 AWG |
Special Features | Unique bottom rib keeps the conductor from turning. Eliminates the need for excessive torque, which can damage large conductors |
Standard | UL E9809 |
Type | Anti-Rotational Mechanical Connector |
Package Dimensions (L x W x H) | 5.3 IN x 3.8 IN x 2.8 IN |
Package Dimensions (L x W x H) | 13.462 cm x 9.652 cm x 7.112 cm |
Package Weight (Imperial) | 0.3500 L |
Package Weight (Metric) | 0.1590 kg |
PCSB4-3S-12Y
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
ADR60-21AR

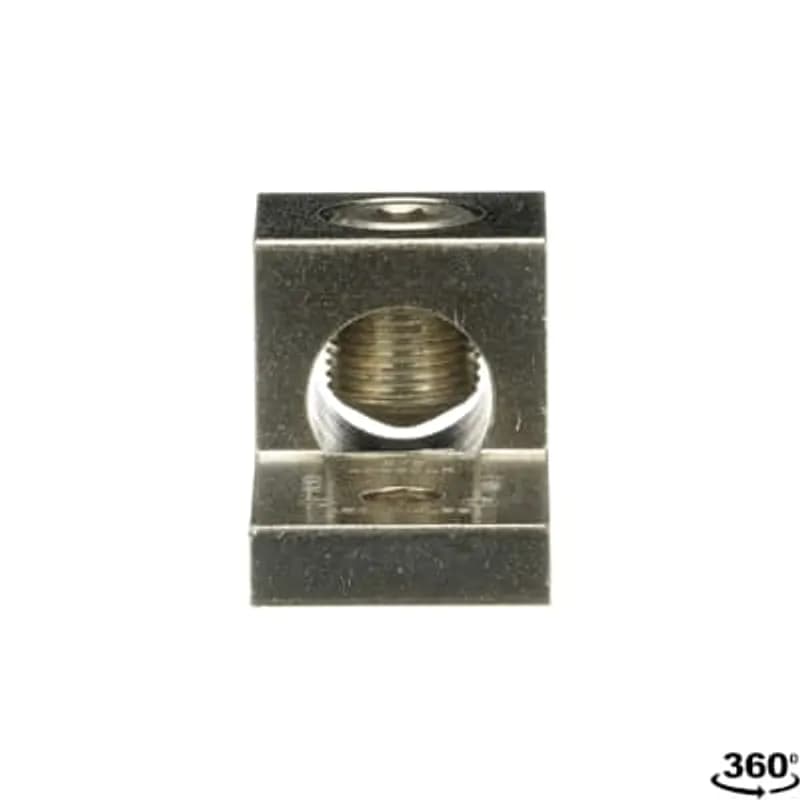

Type ADR-ALCUL Anti-Rotational Two-Conductor, One-Hole Mount, Conductor Range Max 600 MCM, Min 2 AWG, 1/2 Inch Bolt Hole, Tin Plated
622ML-SK3
Transformer Lug Kits - Mechanical For KVA Size 100-167 10, 150-300 30 Aluminum Wire Range 6-250, 350-800
B 250-2-165
Copper Wire Connector, #6 -250 kcmil. UL listed. Length 2.41 inch x 7/8 inch x 13/16 inch. Tapped 3/4-16 UNF-2B x .657 inch deep. Includes Two Stainless Steel Screws.
ADR6004-3
Type ADR-ALCUL Single-Conductor, One-Hole Mount for Conductor Range Max 600 kcmil (2) 250 kcmil, Min 4 Str. (2) 1/0 Str.How to Install Blackburn Aluminum Dual Rated Connectors
This guide provides step-by-step instructions for safely installing Blackburn Aluminum Dual Rated Connectors with aluminum or copper conductors, including proper preparation and torque specifications.
Estimated time: 30m
Tools needed:
Wire brush, Torque wrench
Supplies needed:
Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound, Mounting hardware, Flat washers, Belleville washers
- De-energize and Verify Conductor Size
CAUTION: De-energize the circuit before installing connectors. Check the conductor size marked on the connector to ensure it is the correct connector for the conductor size you are using.
- Strip Conductor Insulation
Carefully strip the conductor insulation, avoiding any damage to the conductor strands. Use the length of the connector barrel to measure the appropriate strip length.
- Prepare and Insert Conductor
Wire brush the conductor. If using an aluminum conductor, apply Blackburn® Contax® Type CT or Weaver Type CP oxide inhibiting compound. Fully insert the conductor into the connector and wipe off any excess oxide inhibitor.
- Apply Torque to Setscrew
Identify the maximum conductor size the connector accommodates. Apply the recommended tightening torque to the setscrew in accordance with TABLE 1. Refer to TABLE 1 for specific torque values based on conductor size (e.g., 35 In.-Lbs. for 10-14 AWG, 50 In.-Lbs. for 2/0-14).
- Prepare Connector Contact Surface
Prior to mounting the connector, apply Blackburn® Contax® Type CT or Weaver Type CP oxide inhibiting compound to the flat contact surface of the connector.
- Torque Mounting Hardware
Mount the connector using appropriate hardware. Torque the mounting hardware to the values shown in TABLE 2. For good installation practice, use flat and Belleville washers in conjunction with the mounting hardware, although the connectors will perform satisfactorily without them.
