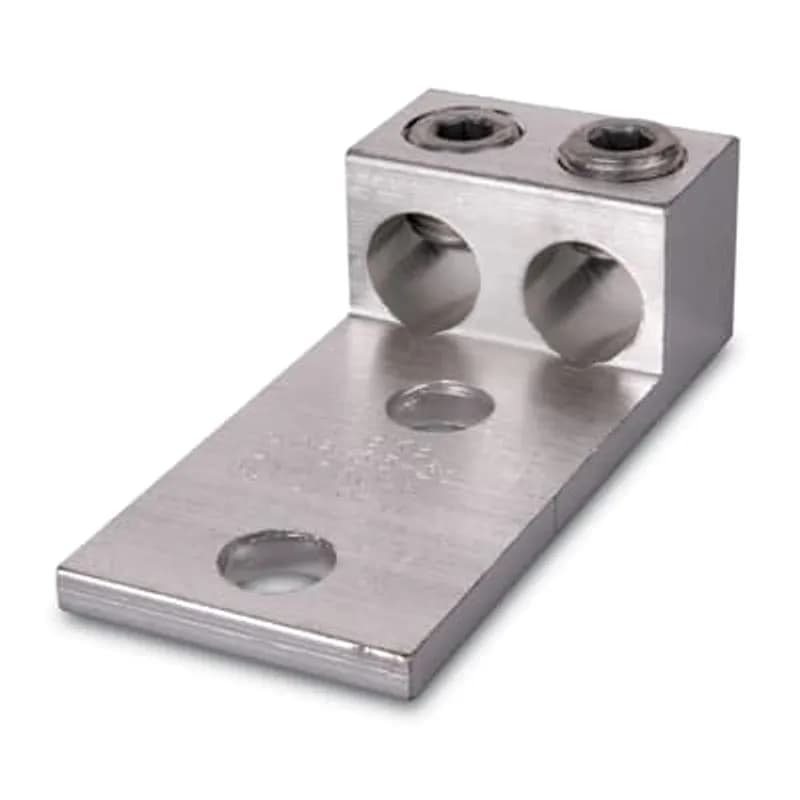

UPC: 783786120178
Documents & Media
Contact for Pricing
Minimum Qty: 12
Multiplier: 12
*Contact for lower quantities*
Overview
- Dual-rated for copper and aluminum conductors
- Conductor range: 350 kcmil - 6 AWG
- 1/2 Inch bolt hole mount
- 90 Degrees Celsius operating temperature
- Single connector, extruded aluminum construction
Specifications
Mounting Hole Spacing | 1/2 in |
Number of Conductors | 1 |
Number of Mounting Holes | 1 |
Type | Dual-Rated Mechanical Connector |
Package Dimensions (L x W x H) | 4.4 IN x 3.3 IN x 2.9 IN |
Package Dimensions (L x W x H) | 11.176 cm x 8.382 cm x 7.366 cm |
Package Weight (Imperial) | 0.1500 L |
Package Weight (Metric) | 0.0680 kg |
SGPL12-10S-L
Ground Bonding Pigtail, #12 AWG Solid Wire, 10" length, one end of wire strip to 1" length, GSH, #10-32 Bonding Screw Included
ADR60AR
Type ADR-ALCUL Anti-Rotational Single-Conductor, One-Hole Mount, Conductor Range Max 600 MCM, Min 2 AWG, 1/2 Inch Bolt Hole, Tin Plated
ADR60-21AR
Type ADR-ALCUL Anti-Rotational Two-Conductor, One-Hole Mount, Conductor Range Max 600 MCM, Min 2 AWG, 1/2 Inch Bolt Hole, Tin Plated
622ML-SK3
Transformer Lug Kits - Mechanical For KVA Size 100-167 10, 150-300 30 Aluminum Wire Range 6-250, 350-800
B 250-2-165
Copper Wire Connector, #6 -250 kcmil. UL listed. Length 2.41 inch x 7/8 inch x 13/16 inch. Tapped 3/4-16 UNF-2B x .657 inch deep. Includes Two Stainless Steel Screws.Frequently Asked Questions
What conductor sizes does this aluminum lug support?
The ADR352 ALCUL Aluminum Extruded Lug supports conductor sizes ranging from 350 kcmil down to 6 AWG.
Is this lug suitable for both copper and aluminum conductors?
Yes, this is a dual-rated connector, meaning it is designed for use with both copper and aluminum conductors.
What is the mounting hole size for this lug?
The ADR352 features a 1/2 inch bolt hole mount for secure installation.
What is the maximum operating temperature for this connector?
This aluminum lug is rated for a maximum operating temperature of 90 degrees Celsius.
What is the manufacturer of the ADR352 lug?
The ADR352 ALCUL Aluminum Extruded Lug is manufactured by ABB - Installation Products.
How to Install Blackburn Aluminum Dual Rated Connectors
This guide provides step-by-step instructions for safely installing Blackburn Aluminum Dual Rated Connectors with aluminum or copper conductors, including preparation, insertion, and proper torque application.
Estimated time: 30m
Tools needed:
Wire strippers, Wire brush, Torque wrench
Supplies needed:
Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound, Aluminum or copper conductors, Mounting hardware, Flat and Belleville washers
- De-energize Circuit and Verify Connector Size
De-energize the circuit before beginning any work to ensure safety. Check the conductor size marked on the connector to confirm it is the correct connector for the conductor size you are using.
- Strip Conductor Insulation
Carefully strip the conductor insulation. Use the length of the connector barrel to measure the appropriate strip length, and avoid any damage to the conductor strands during this process.
- Prepare and Insert Conductor
Wire brush the conductor thoroughly. If using an aluminum conductor, apply Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound. Fully insert the conductor into the connector, then wipe off any excess oxide inhibitor.
- Torque Connector Setscrew
Identify the maximum conductor size the connector accommodates. Apply the recommended tightening torque to the setscrew in accordance with TABLE 1 (e.g., 35 in.-lbs for 10-14 AWG, 40 in.-lbs for 8 AWG, 45 in.-lbs for 4-6 AWG, 50 in.-lbs for 2/0-14).
- Apply Oxide Inhibitor to Contact Surface
Prior to mounting the connector, apply Blackburn Contax Type CT or Weaver Type CP oxide inhibiting compound to the flat contact surface of the connector.
- Mount and Torque Hardware
Secure the connector using appropriate mounting hardware. Torque the mounting hardware to the values shown in TABLE 2 (e.g., for steel bolts: 72 in.-lbs for 1/4 inch, 132 in.-lbs for 5/16 inch). For good installation practice, use flat and Belleville washers in conjunction with the mounting hardware.
