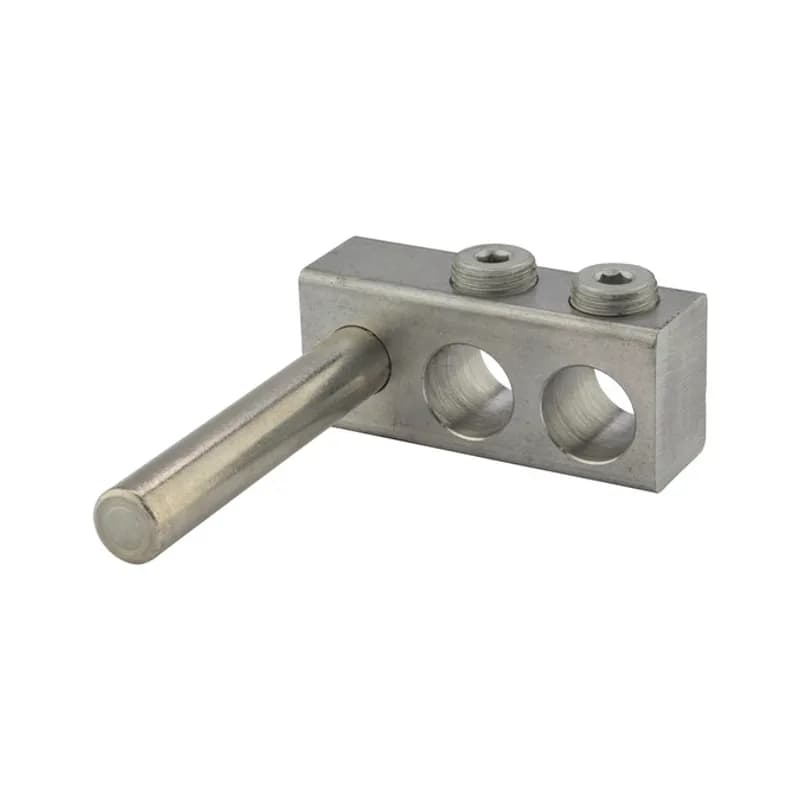

NSI Industries TS350-2 - 2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
NSI Industries

TS350-2

UPC: 662381023629

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The NSI Industries TS350-2 is a 2-port aluminum dual-rated transformer stud connector designed for reliable electrical connections. Constructed from durable 6061-T6 aluminum alloy, this connector offers superior electrical and mechanical performance. Its clear plating minimizes contact resistance, while the tin-plated copper stud ensures a low-resistance connection to transformers. This versatile connector is suitable for use with both copper and aluminum conductors, making it a flexible choice for various applications. It meets or exceeds ANSI C119.4 Class A standards, confirming its quality and safety. The TS350-2 is rated for 600V and operates at a temperature of 90 degrees Celsius. Its set screw design allows for easy installation and makes it a reusable component. Ideal for transformer connections, this connector provides a secure and efficient link between conductors and transformer studs.
  • 2-Port Aluminum Dual Rated Transformer Stud Connector
  • Accommodates conductors from 350 MCM to -6 AWG
  • Features a 5/8" stud for transformer connections
  • Constructed from 6061-T6 aluminum alloy for durability
  • Meets or exceeds ANSI C119.4 Class A standards

Specifications

Connection Type
Set Screw
Material
6061T-6 Aluminum Alloy
Material
6061T-6 Aluminum alloy, Tin-plated copper
Poles
2
Series
TS350
Size
350 MCM -6 AWG
Size
350 MCM -6 AWG with 5/8" Stud
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
2.95 IN x 0.88 IN x 1.25 IN
Package Dimensions (L x W x H)
7.493 cm x 22.352 mm x 3.175 cm
Package Weight (Imperial)
0.632 L
Package Weight (Metric)
0.287 kg

Similar Products

TS350-2-12

TS350-3

Poles: 3

TS350-4

Size: 350 MCM - 6 AWG

Poles: 4 Port

TS350-6

TS250-2

Material: 6061T-6 Aluminum Alloy, Tin Plated Copper

Size: 250 MCM -6 AWG

TS750-2

Material: 6061T-6 Aluminum Alloy, Tin Plated Copper

Size: 750 - 250 MCM

You May Also Be Interested In

2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 1/2" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

TS350-2-12

6 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

TS350-6

4 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

TS350-4

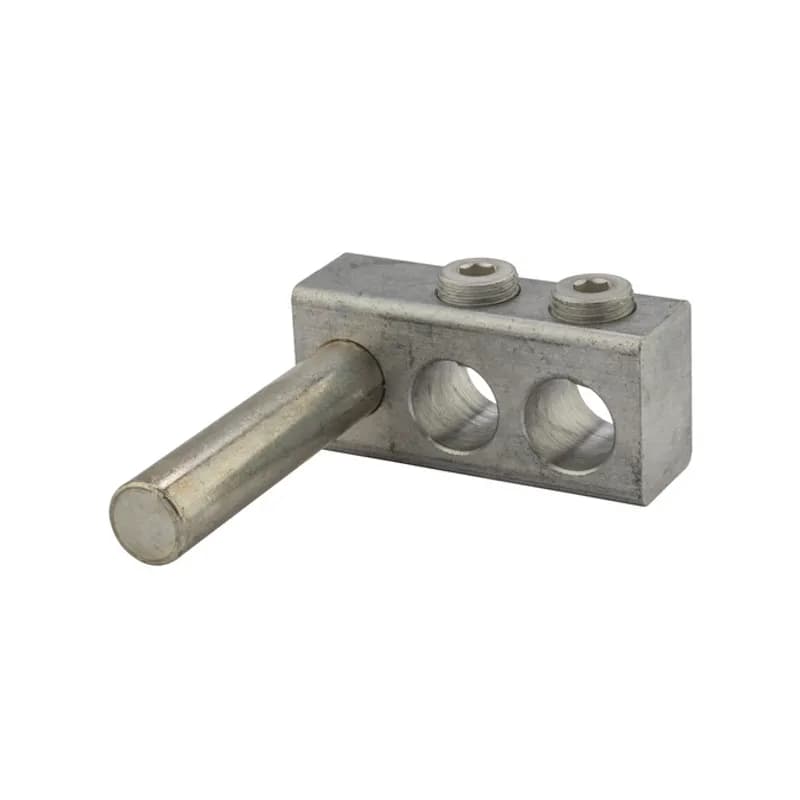

2 Port Aluminum Dual Rated Transformer Stud Connector 500 MCM - 4 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
