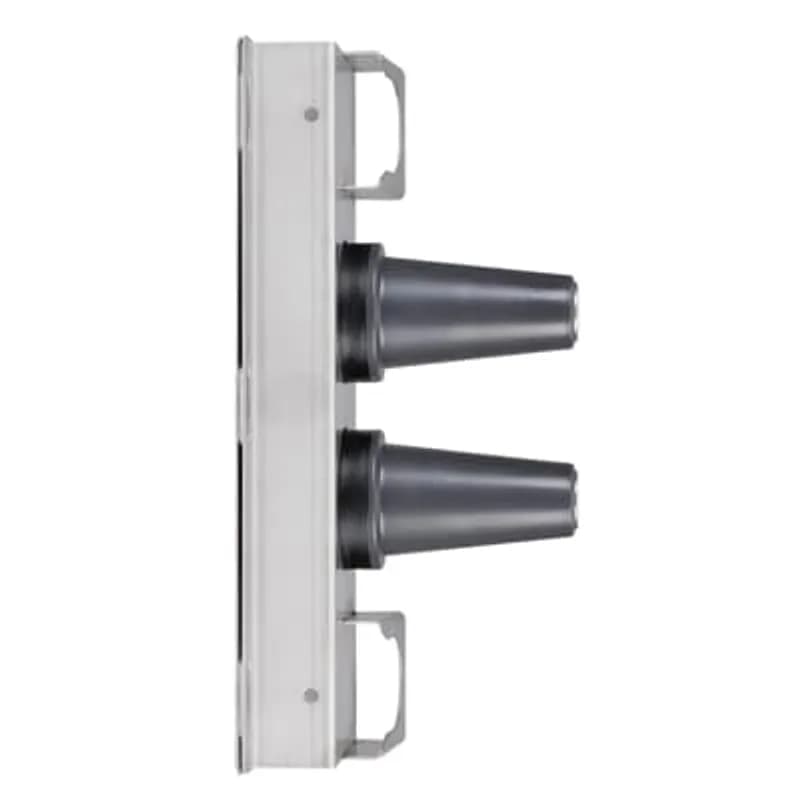

ABB Installation Products 750-J2 35kV 600 Series Deadbreak 2-Point Junction, includes Rubber Junction, Stainless Steel…
UPC: 783786630103
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 35kV voltage class with 600A continuous current rating
- Fully shielded, fully submersible molded rubber housing (EPDM)
- Stainless steel mounting bracket and back plate for corrosion resistance
- Compatible with Elastimold® Elbow connectors (755 series)
- Meets ANSI/IEEE Standard 386 for medium-voltage applications
Specifications
Application | Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass |
Connection Type | Deadbreak |
Current Rating | 600 A |
Material | Rubber, Stainless Steel |
Material | Stainless Steel Mounting Bracket |
Mounting Type | U-Straps with Back Plate |
Poles | 2 |
Poles | 2P |
Series | 600 Series |
Special Features | 35kV, 600 Amp Deadbreak 2-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors. Stainless Steel Mounting Bracket |
Standard | ANSI/IEEE Standard 386 |
Type | Junction |
Voltage Rating | 35 kV |
Voltage Rating | 35kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 10.7500 L |
Package Weight (Metric) | 4.8760 kg |
J4-2266-35-N
4 Point Junction, with two 200 Amp Bushing Well Interfaces and two 600 Amp Bushing interfaces, 35kV, No Parking Stand.
750BIP
35kV 600 Series Deadbreak Insulating Plug (with Cap). Plug Length 5.656 inch, Diameter 3 inch. Epoxy.
750-J3
35kV 600 Series Deadbreak 3-point Junction, includes Rubber Junction, Stainless Steel U-Straps and Back Plate
750-J4
35kV 600 Series Deadbreak 4-Point Junction, includes Rubber Junction, Stainless Steel U-Straps and Back Plate
750SOP
35 kV, 600 Series Deadbreak Insulated Parking Bushing, Stand-Off Plug. Length 5.062 inch, Widest Diameter 3 inch. Epoxy.
K650ETP
600 Amp, 25kV, 600 Series Loadbreak Elbow Tap Plug, use 600ATM assembly tool. Length 9.861 inches, Widest Diameter 3 inches.
755BE
35kV 600 Series Deadbreak Bushing Extender - Length 10.27 inch x 3.17 inch Diameter. (with Stud - Length 2.28 inch 5/8-11 UNC-2A Thread).
K650LRTPA2
25kV 600 Series Stick-Op Loadbreak Reducing Tap Plug, 600AT assembly tool required for operation and/or installation of Stick-Op.Frequently Asked Questions
What products are compatible with the 750J2 junction?
The 750J2 provides mating for Elastimold® Elbow connectors. It is also compatible with 755 Elbow Connector, 755BE Bushing Extender, and 755BEA2 Bushing Adapter.
What is the 750J2 product?
The 750J2 is a 35kV, 600 Amp Deadbreak 2-Way Junction. It features a fully shielded, fully submersible molded rubber housing.
What is the continuous current rating?
The 750J2 has a continuous current rating of 600 Amps.
What is the 750J2 product?
The 750J2 is a 35kV, 600 Amp Deadbreak 2-Way Junction. It features a fully shielded, fully submersible molded rubber housing.
What are the applications for the 750J2 junction?
ELASTIMOLD® junctions are designed for subsurface, vault, or padmount applications. They can be used for sectionalizing, looping, tapping, and equipment bypass.
What products are compatible with the 750J2 junction?
The 750J2 provides mating for Elastimold® Elbow connectors. It is also compatible with 755 Elbow Connector, 755BE Bushing Extender, and 755BEA2 Bushing Adapter.
What are the applications for the 750J2 junction?
ELASTIMOLD® junctions are designed for subsurface, vault, or padmount applications. They can be used for sectionalizing, looping, tapping, and equipment bypass.
What is the operating voltage of the 750J2?
For the 35kV Voltage Class, the operating voltage is 21.1kV Phase-to-Ground. The maximum phase-to-phase voltage is 36.6kV.
What is included in the 750J2 kit?
Each kit contains one basic molded junction 750J2, mounting hardware 600J2-6, two tubes of lubricant 82-08, installation instructions IS-0207, and two protective caps 750PPC-01.
What is the continuous current rating?
The 750J2 has a continuous current rating of 600 Amps.
How to Install the LINK-C Deadbreak Cam Link Operable Connector System
This guide provides step-by-step instructions for installing the 600 amp LINK-C Deadbreak Cam Link Operable Connector System, including mounting, wiring, and connection procedures for high voltage electrical equipment.
Estimated time: 2h
Tools needed:
Torque wrench, Socket wrench (for 1 inch hex), Hot stick, Welding equipment, Measuring tape or ruler, Wire strippers, 600ATM/600AMT Operating Tool
Supplies needed:
600 amp elbow, Cable, Studs (3/8-16 x 2"), Hex nuts, Lockwashers, Spacers (optional), Stand-off plug (SOP), ELASTIMOLD supplied lubricant, 600 amp bushing extender, Retainer contact, Epoxy standoff plug, Alignment bracket, Bushing extender clamp, Elbow clamp, Hex bolts, LINK-C connector, #14 AWG or #12 AWG solid copper wire, Appropriate wire connectors, Mating 200 amp product (optional), 20MA or 21MA grounding devices (if applicable)
- Prepare for Installation and Ensure Safety
Before beginning, ensure all apparatus is de-energized. This product must only be installed by competent personnel trained in high voltage electrical equipment safety practices. Read all instructions, check package contents for completeness and damage, and verify component compatibility. Have all required tools and supplies ready, and maintain cleanliness throughout the procedure.
- Install the 600 Amp Elbow onto the Cable
Install the 600 amp elbow onto the cable according to its specific installation instructions. Ensure it is positioned to align correctly with the stand-off plug.
- Mount the Stand-Off Plug (if applicable)
If using a mounted stand-off plug, weld three 3/8-16 x 2” studs to the faceplate according to customer standard practice and specified dimensions. Install three hex nuts onto the studs to support the stand-off plug, or use spacers. Position the stand-off plug over the studs, resting on the nuts or spacers. Secure it by installing a lockwasher and hex nut on each stud, then tighten to 12 ft-lbs. Verify that the top surfaces of the bushing and stand-off plug are in-line.
- Install the Bushing Extender and Elbow Components
Clean and thoroughly lubricate the apparatus bushing and both interfaces of the 600 amp bushing extender with ELASTIMOLD lubricant. Install the bushing extender onto the apparatus bushing. Insert the retainer contact into the bushing extender and thread it into the apparatus bushing using a 600ATM/600AMT Operating Tool on the 1” hex portion, torquing to 50-60 ft-lbs. Repeat the cleaning, lubricating, and installation process for the epoxy standoff plug and the 600 amp elbow, ensuring the retainer contact is threaded into the epoxy standoff plug and torqued to 50-60 ft-lbs.
- Install the Alignment Bracket
Remove the bushing extender clamp and elbow clamp from the alignment bracket. Position the alignment bracket on the bushing extender 2.5 inches (63.5mm) from the grounding eye. Assemble the bushing extender clamp to the alignment bracket with the supplied hardware, torquing by alternating sides until the clamp tabs are flush and tight.
- Secure the Elbow in the Alignment Bracket
Carefully position the elbow within the alignment bracket, ensuring the elbow cuff aligns evenly with the bushing extender cuff. Assemble the elbow clamp to the alignment bracket using the supplied hardware. Torque the clamp by alternating sides until the clamp tabs are flush and tight. Ensure the elbow clamp notch faces the cable entrance of the elbow.
- Install the LINK-C Connector
Clean and thoroughly lubricate both 600 ampere interfaces of the Link with ELASTIMOLD lubricant. Align the Link to be perpendicular to the switch faceplate when inserted. Insert the Link into the bushing extender and elbow, ensuring both lever arms are inside the alignment bracket legs. Engage the pivot pin into the slots of the alignment bracket legs. Using a hot stick, push inward and move the lever arms downward to engage the roller pin, moving the Link inward until the lever arms are perpendicular to the alignment bracket leg.
- Ground the System Components
Ground the elbow by feeding a #14 AWG or #12 AWG solid copper wire through its grounding eye, twisting it tight, and connecting it to ground. Clean and lubricate the 200 amp interface on the Link. Ground and install any desired mating product on the 200 amp interface according to its instructions. Ground the cable: for concentric neutral cable, twist neutral wires and connect to ground; for 20MA or 21MA devices, connect their ground lead to ground. For three-phase installations, tie all grounds from all three phases to a common ground point.
