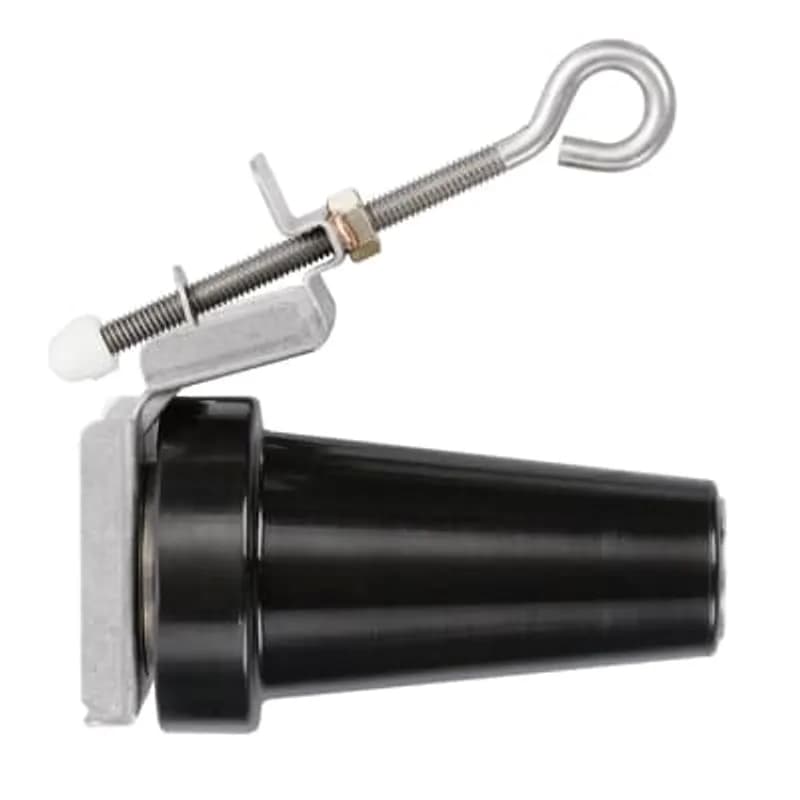

ABB Installation Products 750SOP 35 kV, 600 Series Deadbreak Insulated Parking Bushing, Stand-Off Plug. Length 5.062…
UPC: 783786628803
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 35 kV Voltage Rating for high-voltage applications
- Durable Epoxy Material for superior insulation and longevity
- 600 Series designation for system compatibility
- Stand-Off Plug mounting type for secure termination
- Compact dimensions: 5.062 inch Length, 3 inch Widest Diameter
Specifications
Application | The 750SOP is inserted into the parking stand with an insulated hot stick and secured in place. Mating Elastimold 755LR/756LR deadbreak elbows can then be placed on the 750SOP to provide a fully shielded and fully submersible connection. Provisions for grounding the 750SOP mounting bracket are included |
Material | EPDM-Rubber |
Size | 3.00 inch (76.2 mm) Diameter, 5.00 inch (127.0 mm) Length, 5.02 inch (127.6 mm) Center of Bushing to top of Eye Bolt |
Special Features | Fully rated 35kV, 600 Amp Deadbreak Insulated Parking Bushing. Allows visible external separation, isolation, and dead-ending. Stainless Steel Bracket. Hot Stick Operable |
Standard | ANSI/IEEE Standard 386 |
Type | Parking Bushing |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.2900 L |
Package Weight (Metric) | 1.0390 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
K650ETP
600 Amp, 25kV, 600 Series Loadbreak Elbow Tap Plug, use 600ATM assembly tool. Length 9.861 inches, Widest Diameter 3 inches.
755BE
35kV 600 Series Deadbreak Bushing Extender - Length 10.27 inch x 3.17 inch Diameter. (with Stud - Length 2.28 inch 5/8-11 UNC-2A Thread).
K650LRTPA2
25kV 600 Series Stick-Op Loadbreak Reducing Tap Plug, 600AT assembly tool required for operation and/or installation of Stick-Op.
Frequently Asked Questions
What is the 750SOP's primary function?
The 750SOP is a 35kV class, 600A deadbreak insulated parking bushing with a parking stand and hot stick operable mounting hardware.
What standard does the 750SOP meet?
The 750SOP meets ANSI/IEEE Standard 386, Latest Revision.
What is the corona extinction voltage?
The corona extinction voltage is 26kV AC at 3pC sensitivity.
What is the 15-minute DC withstand voltage?
The 15-minute DC withstand voltage is 103kV.
What is the one-minute AC withstand voltage?
The one-minute AC withstand voltage is 50kV.
What is the impulse withstand rating?
The impulse withstand (BIL) rating is 150kV (1.2 x 50 microsecond wave).
What elbows are compatible with the 750SOP?
Elastimold® 755LR/756LR deadbreak elbows are compatible, providing a fully shielded and submersible connection.
What is the momentary current rating?
The momentary current rating is 25kA Symmetrical for 10 cycles.
What is the continuous current rating?
The continuous current rating for the 750SOP is 600 Amp.
What is the maximum phase-to-phase voltage?
The maximum phase-to-phase voltage for the 35kV class is 36.6kV.
How to Install the LINK-C Deadbreak Cam Link Operable Connector System
This guide provides step-by-step instructions for the installation and initial setup of the LINK-C 600 amp deadbreak cam link operable connector system, including mounting, wiring, and grounding procedures.
Estimated time: 1h 30m
Tools needed:
Torque wrench with 1-inch hex socket, Hot stick, Wire strippers, Suitable tool for 1-inch hex portion
Supplies needed:
ELASTIMOLD supplied lubricant, 600 amp elbow, #14 AWG or #12 AWG solid copper wire, Appropriate connector for grounding wire, Desired mating 200 amp product, Hardware for alignment bracket clamps
- Prepare and Install 600 Amp Elbow
Ensure all apparatus is de-energized before beginning installation. Inspect all components for damage and compatibility. Install the 600 amp elbow onto the cable according to the separate installation instructions provided with the elbow. Ensure it will align with the standoff plug.
- Install Bushing Extender
Clean and thoroughly lubricate the apparatus bushing and both interfaces of the 600 amp bushing extender using ELASTIMOLD supplied lubricant. Install the bushing extender onto the apparatus bushing. Insert the 600ATM into the retainer contact, engage the internal hex broach, and thread into the apparatus bushing using a suitable tool applied to the 1-inch hex portion. Torque to 50-60 ft-lbs.
- Install Elbow onto Epoxy Standoff Plug
Clean and thoroughly lubricate the epoxy standoff plug and both interfaces of the 600 amp elbow with ELASTIMOLD supplied lubricant. Install the elbow onto the epoxy standoff plug. Insert the 600AMT into the retainer contact, engage the internal hex broach, and thread into the epoxy standoff plug through the compression lug hole using a suitable tool applied to the 1-inch hex portion. Torque to 50-60 ft-lbs.
- Install Alignment Bracket
Remove the bushing extender clamp and elbow clamp from the alignment bracket. Position the alignment bracket on the bushing extender 2.5 inches (63.5mm) from the grounding eye. Assemble the bushing extender clamp to the alignment bracket with the supplied hardware, alternating sides until clamp tabs are flush and tight.
- Secure Elbow in Alignment Bracket
Position the elbow in the alignment bracket so that the elbow cuff is lined up evenly with the bushing extender cuff. Assemble the elbow clamp to the alignment bracket with the supplied hardware, alternating sides until clamp tabs are flush and tight. Ensure the elbow clamp notch faces the cable entrance of the elbow.
- Install the LINK-C Connector
Clean and thoroughly lubricate both 600 ampere interfaces of the LINK-C with ELASTIMOLD supplied lubricant. Align the LINK-C so it is perpendicular to the switch faceplate when inserted. Insert the LINK-C into the bushing extender and elbow, ensuring both lever arms are inside the alignment bracket legs. Engage the pivot pin into the slots in the alignment bracket legs. While pushing inward, move the lever arms downward using a hot stick eye to engage the roller pin and move the LINK-C inward until the lever arms are perpendicular to the alignment bracket leg.
- Grounding and Mating Product Installation
Ground the elbow by feeding a #14 AWG or #12 AWG solid copper wire through the grounding eye, twisting it tight, and connecting it to ground. Clean and lubricate the 200 amp interface on the LINK-C. Ground the cable (twist concentric neutral wires or connect ground lead from 20/21MA device to ground). For three-phase installations, tie all grounds from all three phases to a common ground point. Install the desired mating 200 amp product on the 200 amp interface according to its specific installation instructions.
