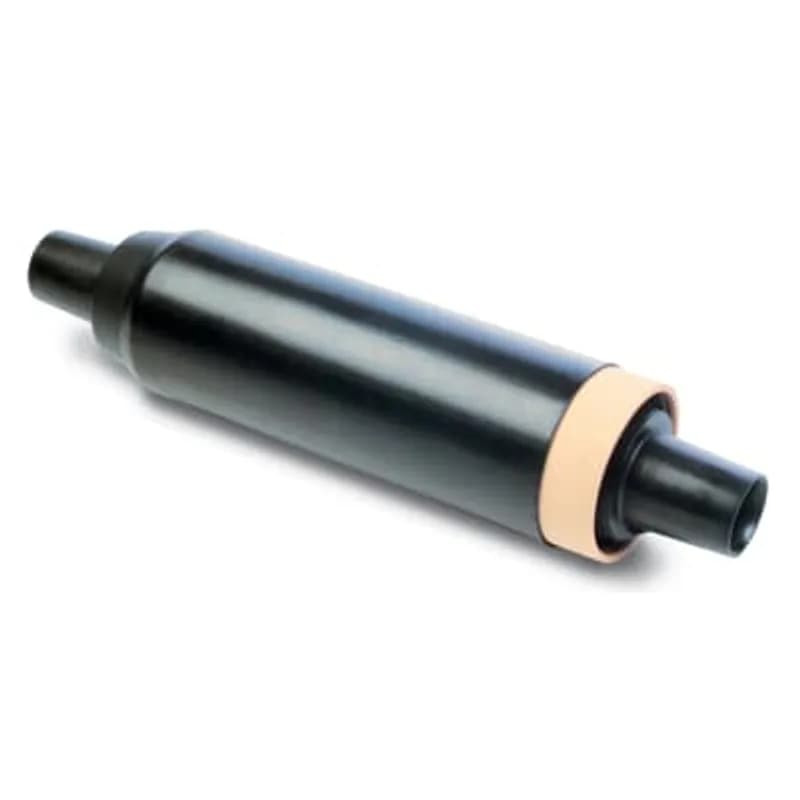

ABB Installation Products 69TCT212141PBBN 69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 1 (Bore Diameter…
UPC: 075114426695
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Voltage Rating: 69 kV
- Housing Size 1 with 1.55-inch bore diameter
- Accommodates insulation ranges from 1.65 to 1.9 inches
- 2-hole NEMA connection type with aluminum connector
- Includes metallic screen kit with 1/0 bonding cable and heat shrink armor kit
Specifications
Application | Cable Terminations, 69kV |
Conductor Size | 1.101 to 1.152 in |
Connection Type | 2-Hole NEMA |
Material | Aluminum |
Mounting Type | Base and Top Module |
Nema Rating | 2-Hole NEMA |
Series | Transmission Cable Terminator |
Size | Housing Size 1 (Bore Diameter 1.55 inch, Insulation Range 1.65-1.9 inch) |
Special Features | Molded EPDM Elastomer Housing is Durable under Severe Environmental Conditions. Lightweight and easy to Handle |
Standard | IEEE 48 and IEC-840 |
Type | Transmission Cable Terminator |
Voltage Rating | 69 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |

69TCT23NNNNNNBN
69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 3 - Bore Diameter 1.975 inch, Type of Connection - None, Connector Type - None, Conductor Size - None, Metallic Screen Kit - None, Armour Kit - Heat Shrink, No Bracket Required
R2T35J4-N0440
Ranger2 Termination for 35KV outdoor application, cable insulation diameter 1.30 - 2.10 inches for Concentric Neutral and Jacketed Concentric Neutral Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 1250.
R2IT15M1-N2240-B1
Ranger2 Termination. Type - Indoor, 15kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .64 inch - 1.12 inch, Connector Type - Copper 2-Hole Spade #2-1250 kcmil, Conductor Code - 240 -Stranded or Compressed 1/0 Compact or Solid 2/0. Cable Mounting Bracket - Stainless Steel, 0.80 to 1.25 inch.
69TCT302233PNAN
69kV, Transmission Cable Terminator, Base and Two Top Module, Housing Size 0 with Bore Diameter 1.35 inch with Insulation Range of 1.45 to 1.7 inch, Connection Type 2 - 2 Hole NEMA, Connector Type - Copper, Conductor Size Code 33P: 0.781 - 0.815 inch, Metallic Screen Kit - Not Required, Armor Kit - Jacketing Tape and Mastic, No Bracket Required
R2T28J4-N0330
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter 1.30 - 2.10 for Concentric Neural and Jacketed Concentric Neutral Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Conductor 500 Stranded/Compressed or 600 Compact/Solid
R2T28M4-N0460
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - 1.30 inch - 2.10 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 460 -Stranded or Compressed 1500 Compact or Solid 1600.
R2T28J2-N0230
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Concentric Neutral/Jacketed Concentric Neutral, Insulation Range - .84 inch - 1.38 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 230 -Stranded or Compressed #1 Compact or Solid 1/0.
R2T28M2-N0250
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .84 inch - 1.38 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 250 -Stranded or Compressed 2/0 Compact or Solid 3/0.Frequently Asked Questions
What is the nominal voltage of the 69TCT Terminator?
The nominal voltage (Uo/U) for the 69TCT Terminator is 40kV/59kV.
What conductor sizes are compatible with the 69TCT?
It accommodates conductor sizes from 90mm2 (4/0) to 1700mm2 (3500 kcmil).
What cable insulation diameters does it accommodate?
The 69TCT Terminator accommodates cable insulation diameters up to 86.4mm (3.400 inches).
What standards does the 69TCT Terminator conform to?
The 69TCT Terminator conforms to IEC-840 AND IEEE-48 standards.
What is included in the 69TCT Terminator kit?
Each kit contains one TCT Terminator, an instruction sheet, a conductive paint package, and two mastic tapes.
What is the Partial Discharge rating of the 69TCT?
The Partial Discharge rating for the 69TCT Terminator is less than 3pC at 60kV.
What is the BIL rating for the 69TCT Terminator?
The BIL rating is 350 kV (10 positive, 10 negative) at a 1.2x50 microsecond wave.
What is the maximum working voltage for this terminator?
The maximum working voltage for the 69TCT Terminator is 72.5 kV.
What is the Partial Discharge rating of the 69TCT?
The Partial Discharge rating for the 69TCT Terminator is less than 3pC at 60kV.
What is included in the 69TCT Terminator kit?
Each kit contains one TCT Terminator, an instruction sheet, a conductive paint package, and two mastic tapes.
How to Install the ELASTIMOLD TCT 69TCT212141PBBN Transmission Cable Termination
This guide provides step-by-step instructions for the safe and proper installation of the ELASTIMOLD TCT outdoor transmission cable termination, including cable preparation, assembly, and grounding procedures.
Estimated time: 3h
Tools needed:
Measuring tape, Cable strippers, Knife, Hose clamp, Sanding tool, Cable cleaner, Crimping tool, Wirebrush, Soldering iron, Heat gun
Supplies needed:
ELASTIMOLD TCT 69TCT212141PBBN, Heat shrink sleeve, Semi-conductive paint, Vinyl tape marker, Lubricant, Cable Clamp, Winch Assembly, Adapter Plates, Housing Clamp, Mounting bolts, Spade contact, Mastic, #12 AWG copper drain wire, Scintillation ring, Flat braid, Mastic tape, Silicone tape, Supporting structure (customer supplied)
- Perform Pre-Installation Checks and Safety Review
Ensure all apparatus is de-energized before starting. Inspect all package contents for completeness and damage. Verify all components fit properly with the cable and mating products. Read these instructions thoroughly before beginning. Gather all required tools and maintain cleanliness throughout the procedure. This product must be installed only by competent personnel trained in high voltage electrical equipment safety practices.
- Prepare Cable End
Straighten the cable and place it in its final position, using the spade contact as a guide. Square cut the cable end. Note the depth of the spade contact hole, designated as 'X'.
- Remove Outer Jacket and Install Heat Shrink Sleeve
Carefully remove the outer jacket material to a distance of 45.5 inches (111.6 cm) from the cable end to expose the cable shield. Slide the heat shrink sleeve onto the cable.
- Remove Cable Shield
Remove the cable shield to a distance of 43.5 inches (110.5 cm) from the end of the cable.
- Remove Non-Metallic Screen and Chamfer Edge
Remove the non-metallic screen to a distance of 40 inches (101.5 cm) from the end of the conductor. WARNING: Do not cut or nick the exposed insulation, as this could lead to cable failure. Chamfer the non-metallic screen edge for a minimum of 1/2 inch (1.5 cm).
- Square Cut and Chamfer Cable Insulation
Using a hose clamp as a guide, square cut the cable insulation at a distance of X+1 inch from the end of the conductor (refer to Step 2 for 'X' measurement). WARNING: Be careful not to nick the conductor. Remove the hose clamp. Sand out all nicks and abrasions on the extruded non-metallic screen chamfer and cable insulation. Chamfer the edge of the cable insulation for approximately 3 inches (7.5 cm).
- Clean and Paint Cable Insulation
Clean the cable insulation and extruded non-metallic screen using cable cleaner, wiping towards the outer jacket to prevent semi-conductive particles from contaminating the insulation. Place a vinyl tape marker on the cable insulation surface at 39.5 inches (100.5 cm) from the end. Stir the supplied semi-conductive paint well. Paint the exposed insulation and a minimum of 1 inch (2.5 cm) of the extruded non-metallic screen with the semi-conductive paint. Remove the vinyl tape within 5 to 15 minutes, ensuring the paint edge is smooth and square. Allow the paint 60 minutes to dry.
- Place Second Vinyl Tape Marker
Place a vinyl tape marker onto the cable non-metallic shield 2 inches (5 cm) from the edge of the dried paint.
- Assemble Clamps and Lubricate Cable
Assemble the Cable Clamp at least 55 inches (140 cm) back from the conductor and tighten it securely. Place the Winch Assembly in front of the Cable Clamp and attach its stationary hooks to the Cable Clamp. Attach the Adapter Plates to the Housing Clamp with the supplied bolts. Assemble the Housing Clamp around the Terminator Base Section. Extend the steel cable(s) on the Winch Assembly until the hooks reach the Housing Clamp, then hook the cables to the Housing Clamp. Thoroughly lubricate the cable in the specified area and direction with the supplied lubricant. WARNING: Do not substitute the lubricant.
- Assemble Terminator Sections
Assemble the Terminator Base Section on the cable approximately 12 inches from the end. Release tension on each steel cable. Extend the steel cables and Housing Clamp. Position the Terminator Module Section in the Housing Clamp. Install the units until they overlap and continue assembling the mated units until the Terminator Base Section is flush with the tape marker. Remove the Winch Assembly, Housing Clamp, Adapter Plate, and Cable Clamp.
- Crimp Conductor and Apply Mastic
Remove the tape marker on the insulation shield. Remove the cut section of insulation on the cable to expose the conductor. Wirebrush the conductor of the cable and immediately insert it into the spade contact. Crimp the connector according to the enclosed crimping instructions, starting at the crimp line and working outward toward the TCT. Remove any excess inhibitor where applicable. Apply two layers of mastic: one at the end of the stress cone and one 2 inches (5 cm) back from the end of the cable jacket.
- Install Grounding Components and Seal
Install the scintillation ring and the #12 AWG copper drain wire. Solder the flat braid and the #12 drain wire to the shield. Apply a second layer of mastic over the drain wire, on top of the previously applied mastic around the base of the stress cone. Apply a second layer of mastic over the flat braid, on top of the previously applied mastic on the cable jacket. Slide the heat shrink sleeve up to the grounding eye of the base of the terminator. Apply heat to the sleeve, starting in the middle and continuing toward each end of the tube, until mastic sealer squeezes from the ends. Connect the flat braid to the system ground. Seal the cable end with mastic tape between the contact and cable insulation. Apply two half-lapped layers of silicone tape covering the crimp connector, mastic tape, and the upper portion of the terminator skirt.
- Mount Terminated Cables
Mount the terminated cables to a supporting structure. Ensure that a minimum clearance of 4.0 inches (10 cm) is maintained between the terminator stress cone base and the supporting structure. All apparatus must be installed and operated in accordance with individual user, local, and national work rules.
