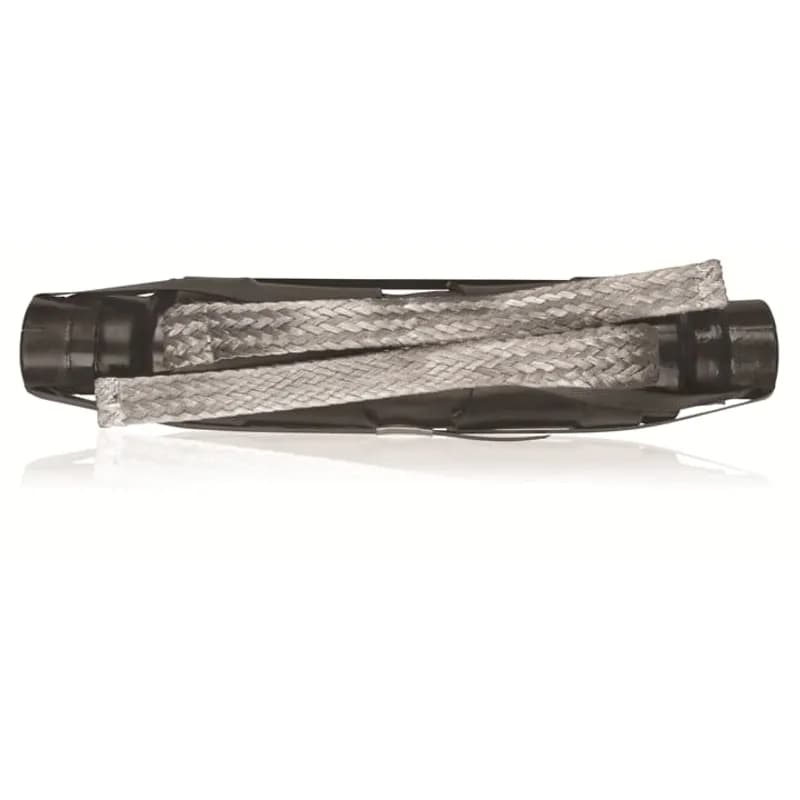

ABB - Installation Products 655CETP-NAC04-S - Combo-T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit, 15 kV, 600 Amps (Base Aluminum), No Test Point, Cable Adapter Sizing Insulation Diameter Range, Min: 1.550 Inch (38.5mm) Max: 1.780 Inch (45.2mm), Connector Range 750 to 1000 kcmil, with Shrink-Fit Jacket Seal Kit.
More images

ABB Installation Products 655CETP-NAC04-S Combo-T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit, 15…

UPC: 075114418393


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 655CETP-NAC04-S Combo-T Elbow Reducing Tap Plug Kit is designed for reliable 15 kV, 600 Amp applications. This comprehensive kit includes a tap plug with a stud, a cable adapter, a lug, and an insulated cap, facilitating secure and efficient electrical connections. The base material is aluminum, ensuring good conductivity. Specifically engineered for cable insulation diameters ranging from a minimum of 1.550 inches (38.5mm) to a maximum of 1.780 inches (45.2mm), this kit accommodates a broad spectrum of cable sizes. The connector range supported is from 750 to 1000 kcmil, making it suitable for medium-voltage power distribution systems. A key component of this kit is the included Shrink-Fit Jacket Seal Kit, which provides a robust and environmentally resistant seal, crucial for maintaining system integrity in challenging conditions. This product is manufactured by ABB - Installation Products and is identified by SKU 655CETP-NAC04-S. Its UNSPSC code is 39121421.
  • 15 kV, 600 Amp rating for medium-voltage applications
  • Accommodates cable insulation diameters from 1.550" (38.5mm) to 1.780" (45.2mm)
  • Supports connector sizes from 750 to 1000 kcmil
  • Includes tap plug with stud, cable adapter, lug, and insulated cap
  • Features Shrink-Fit Jacket Seal Kit for environmental protection

Specifications

Application
600 Amps, 15kV Connector
Color
Black
Conductor Range
750 to 1000 kcmil
Connection
Mechanical
Environmental Conditions
All Weather Conditions
Insulation
True
Material
Housing - EPDM-Rubber
Special Features
ShearBolt Connector
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
ComboT Elbow
Voltage Rating
15 kV
Width
13.31 in
Width
338.074 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
15kV 600 Series Deadbreak Elbow Tap Plug Connector, Window OP Kit, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Tin Plated Aluminum ShearBolt Connector. Conductor Size 750 kcmil Stranded/Compressed/Compact to 1000 kcmil Stranded/Compressed/Compact.

655ETP-NAC04-DRG

15kV 600 Series Deadbreak Elbow Tap Plug Connector, Window OP Kit, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Tin Plated Aluminum ShearBolt Connector. Conductor Size 750 kcmil Stranded/Compressed/Compact to 1000 kcmil Stranded/Compressed/Compact.
25kV, 600 Amp Deadbreak, Test and Ground Connector Kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 250 /Compacted Solid 300 kcmil. With Insulated Cap and Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.

K655ETP-J0280-DRGSG3

25kV, 600 Amp Deadbreak, Test and Ground Connector Kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 250 /Compacted Solid 300 kcmil. With Insulated Cap and Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
35kV, 900 Amp, Deadbreak, Compact 4-Way (H) Insulated BUS Bar with Test Point, with Spiking Aid. Includes Conductive Jacket, Painted Pin, Lube, and Instruction Sheet

M676CHSL-BUS

35kV, 900 Amp, Deadbreak, Compact 4-Way (H) Insulated BUS Bar with Test Point, with Spiking Aid. Includes Conductive Jacket, Painted Pin, Lube, and Instruction Sheet
25kV, 900 Amp, Deadbreak, Compact 4-Way (H) Insulated BUS Bar with Test Point and Spiking Aid. Includes Conductive Jacket and Insert, Painted Pin, Lube, Warning Tag, and Instruction Sheet

K676CHSL-BUS

25kV, 900 Amp, Deadbreak, Compact 4-Way (H) Insulated BUS Bar with Test Point and Spiking Aid. Includes Conductive Jacket and Insert, Painted Pin, Lube, Warning Tag, and Instruction Sheet
15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size kcmil, Compressed Stranded 450 or Compacted Solid 500/550.

K656CY-L0320

15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size kcmil, Compressed Stranded 450 or Compacted Solid 500/550.
25kV, 900 Amp, Deadbreak, Separable Cable Joint, 1-Way Insulated Bus Bar with Test Point, With Spiking Aid.

K676ISL-BUS

25kV, 900 Amp, Deadbreak, Separable Cable Joint, 1-Way Insulated Bus Bar with Test Point, With Spiking Aid.
15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector, .890 inch - 1.220 Inch Cable Insulation Diameter, 3/0 Stranded or 4/0 Solid AWG Wire Size, Bi-Metal Compression Lug

161LRJS-D5260

15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector, .890 inch - 1.220 Inch Cable Insulation Diameter, 3/0 Stranded or 4/0 Solid AWG Wire Size, Bi-Metal Compression Lug
15-25kV 600 Series Deadbreak Separable Straight Joint Package (2-Way) with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 3/0 or Solid 4/0. Cold-Shrinkable Jacket Seal Included.

K656I-H0260-S

15-25kV 600 Series Deadbreak Separable Straight Joint Package (2-Way) with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 3/0 or Solid 4/0. Cold-Shrinkable Jacket Seal Included.
