Contact for Pricing

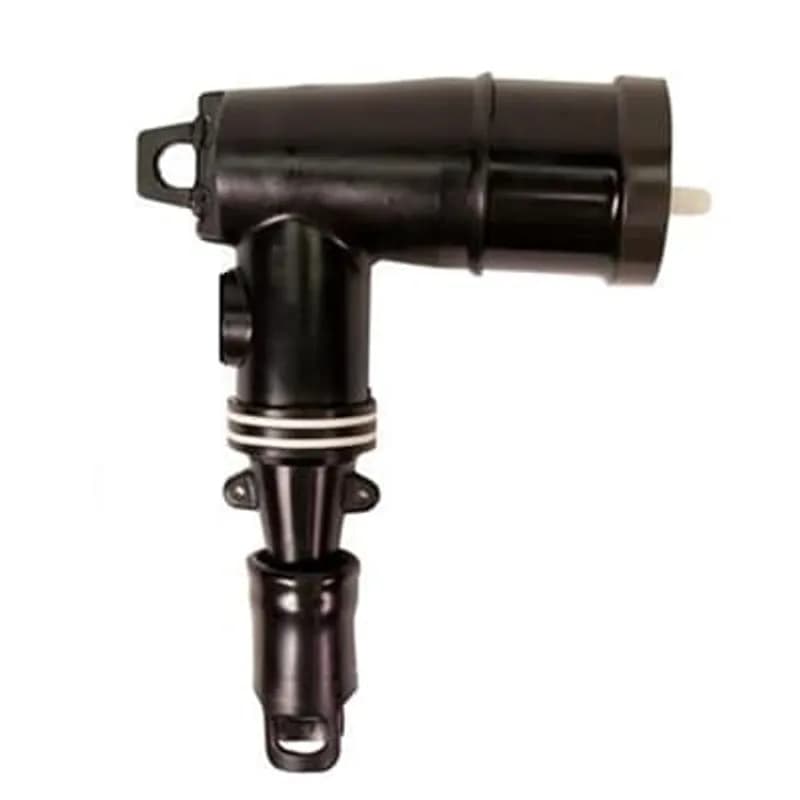

Overview
- 15kV Voltage Rating
- 200 Amp Current Rating
- Jacket Seal for Environmental Protection
- Cable Insulation Diameter: .890" - 1.220"
- Wire Size: 3/0 Stranded or 4/0 Solid AWG
- Bi-Metal Compression Lug
Specifications
Amperage Rating | 200 A |
Application | The 161LRJS is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems |
Color | Black |
Conductor Range | 3/0 STR/COMPR AWG , 4/0 SOL/COMPT AWG |
Connection | Compression |
Connection Type | Compression Lug |
Current Rating | 200 A |
Environmental Conditions | ed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water |
Insulation | True |
Material | Bi-Metal |
Material | Housing - EPDM-Rubber |
Series | 161LRJS |
Size | 0.890 inch - 1.220 Inch (Cable Insulation Diameter), 3/0 Stranded or 4/0 Solid AWG |
Special Features | Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Built in Cable Jacket Seal |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector and Jacket Seal |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
656CETP-J5300
15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 150.
K656I-H0260-S
15-25kV 600 Series Deadbreak Separable Straight Joint Package (2-Way) with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 3/0 or Solid 4/0. Cold-Shrinkable Jacket Seal Included.
K151SP-C0260
200 Amp, 15/25kV, Deadbreak Elbow, Straight Plug, Bails are required but not included, order separately. Cable Insulation Diameter 0.805 inch to 1.060 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 3/0 or Solid 4/0.
K655ETP-F0220-DRGSG3
25kV, 600 Amp Deadbreak, Test and Ground Connector Kit. Cable Insulation Diameter 0.805 inch to 1.060 inch. Aluminum Compression Lug. Conductor Size AWG, Compressed / Stranded 3/0, or Compacted / Solid 4/0. With Insulated Cap and Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
K656DLR-LAC04
15/25kV, Direct Test Elbow, DeadBreak, 600 Amp, Cable Insulation Diameter 1.180-1.465 inches, Tin Plated Aluminum Shear Bolt Connector for Aluminum or Copper Conductor Sizes 750 to 1250 kcmil Stranded / Compressed / Compact.
168FLR3-C5240
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Large Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Bi-Metal Conductor size 1/0 AWG Stranded/Compressed, 2/0 AWG Solid/Compact.
K675LR-M2360-SG3
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size Compressed Stranded 650 kcmil or Compacted Solid 750 kcmil. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.Frequently Asked Questions
Is an integral jacket seal available for the elbow?
Yes, an optional integral jacket seal is available for the enhanced Elastimold 200 amp loadbreak elbow.
What material is used for the pulling eye?
The pulling eye is made of robust stainless-steel, promoting durable hotstick control.
What is the significance of RUS acceptance for this product?
RUS acceptance from the USDA authorizes the use of the enhanced Elastimold 200 amp loadbreak elbow in rural infrastructure construction and improvements.
What standards and certifications does the product meet?
The product is IEEE 386 compliant, ANSI certified, and has Rural Utilities Service (RUS) acceptance from the USDA.
What safety features are included in the enhanced elbow?
Enhanced safety features include improved insulation for 15 kV elbows, rigid probe support, a no-stick interface with Elastimold bushings, a robust stainless-steel pulling eye, and dual grounding eye positions.
What are the voltage ratings for this loadbreak elbow?
The loadbreak elbow is designed for 15 kV and 25 kV applications.
What is the enhanced Elastimold product?
The enhanced Elastimold product is a 200 amp loadbreak elbow available for 15 kV and 25 kV series applications.
What is the significance of RUS acceptance for this product?
RUS acceptance from the USDA authorizes the use of the enhanced Elastimold 200 amp loadbreak elbow in rural infrastructure construction and improvements.
Is an integral jacket seal available for the elbow?
Yes, an optional integral jacket seal is available for the enhanced Elastimold 200 amp loadbreak elbow.
What material is used for the pulling eye?
The pulling eye is made of robust stainless-steel, promoting durable hotstick control.
How to Install 161LRJS/162LRJS Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe installation and initial connection of 161LRJS and 162LRJS Loadbreak Elbow Connectors with jacket seals to UD cable and mating bushing devices.
Estimated time: 1h 30m
Tools needed:
Probe wrench, Wire strippers, Wire brush, Crimp tool, Hotstick
Supplies needed:
Elbow Connector Housing, Compression Lug, Probe, Lubricant, Sealing strips (mastic), Vinyl tape, Jumper or grounding braid, Copper wire (No. 14 AWG / 2.5mm), Appropriate connector (for neutral wires), HV insulated cap(s) or connector(s) (if replacing shipping covers), Silicone lubricant (for test point cap)
- Perform Pre-Installation Checks
Check package contents for completeness and damage. Verify all components fit properly with the cable and/or mating products. Check threads by threading the probe into the compression lug; if resistance is encountered, inspect for damage and replace components. Read the entire installation instructions before starting and ensure all required tools are at hand, maintaining cleanliness throughout the procedure.
- De-energize Apparatus and Inspect Components
DANGER: Ensure all apparatus is de-energized during installation or removal of parts, except for test point caps and indicators. Inspect all parts for damage, correct rating, and compatibility with mating parts. Remove any protective shipping covers and replace with appropriate HV insulated caps or connectors before submerging or energizing the circuit.
- Train Cable and Prepare Neutral Wires
Train the UD cable to ensure sufficient slack for ease of operation. Provide an extra length of concentric neutral wires or grounding braid (24-26 inches beyond the bushing centerline) to facilitate connection to the tank ground and hotstick operation. Unwrap neutral wires past the bushing centerline and cut the excess cable squarely at the bushing centerline.
- Prepare Cable Jacket with Mastic and Tape
Using the cable cut-back template for dimensional guidance, wrap one strip of mastic, stretching slightly, around the cable jacket. Bend all neutral wires straight back over the mastic and along the cable, pressing them into the mastic. Wrap a second strip of mastic completely around the outer jacket, overlapping the imbedded neutral wires. Use a third strip if needed to build up the outer diameter. Cover all mastic with vinyl tape.
- Prepare Cable Insulation and Conductor
Remove the insulation shield and insulation from the cable end, cutting squarely and taking care not to nick the conductor. Bevel the insulation end a maximum of 1/8 inch. Thoroughly clean the insulation to remove all traces of conductive residue. Wire brush bare aluminum conductors and immediately install the compression lug, rotating it to spread inhibitor. Position the compression lug so the contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe excessive inhibitor from the outside of the lug and cable.
- Lubricate and Slide Elbow Housing
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant. DO NOT SUBSTITUTE other lubricants, as they may be harmful. Keep the insulation clean of dirt and grime. Slide the elbow connector onto the cable with a back-and-forth twisting motion. Wipe off all excess lubricant.
- Align Elbow and Install Probe
Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, taking care not to cross-thread. The probe must turn freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends.
- Seal Concentric Neutral Area
Pull the hood over the concentric neutral seal area on the cable by pulling the tabs and/or rolling the seal down.
- Connect Neutral Wires to Ground
Insert one end of a separate copper wire (No. 14 AWG / 2.5mm or equivalent) through the grounding eye on the elbow. Twist it tightly, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector. Provide adequate slack in the wires for elbow operation.
- Lubricate Mating Parts (if de-energized)
DANGER: Lubricate the receptacle portion of the elbow connector and the mating bushing ONLY IF the transformer and elbow are known to be de-energized.
- Connect Elbow to Bushing
Securely fasten a hotstick to the loadbreak connector pulling eye. Confirm positive control of the elbow connector. Insert the probe tip approximately 2 inches (50mm) into the bushing. Immediately push the elbow home with a fast, firm, straight motion, using sufficient force to engage the internal lock on the elbow connector and bushing interface. DO NOT HOLD IN THE PARTIALLY INSERTED POSITION.
- Perform Voltage Test (Optional for 162LRJS)
If using a 162LRJS connector with an integral capacitance test point, remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device; do not use conventional voltage measuring equipment. Test with a suitable sensing device made for capacitive test points. Treat the elbow as energized until the "no voltage" indication is confirmed by other means, as contamination or wrong equipment can give false readings. After testing, clean and lubricate the inside surface of the cap with silicone lubricant and replace it on the test point.
