UPC: 786210053868
Contact for Pricing
Overview

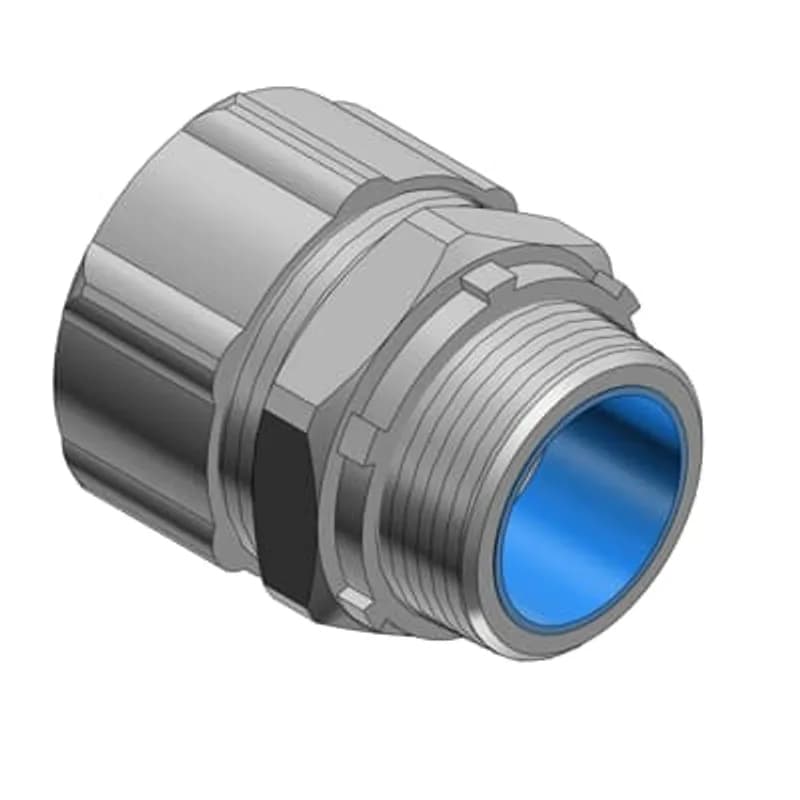

- 6 Inch Straight Malleable Iron Insulated Liquidtight Connector
- Durable malleable iron construction for mechanical protection
- Insulated design enhances electrical safety
- Liquidtight seal protects against moisture and contaminants
- Ideal for industrial wet locations and dusty environments
Specifications
Connection Type | Insulated |
IP Rating | IP66 |
Material | Malleable Iron |
Material | Malleable Iron - Insulated |
Series | 5386 |
Size | 6 Inch |
Special Features | UL Listed Liquidtight and CSA Certified Watertight |
Type | Liquidtight Flexible Metal Conduit Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 25.0000 L |
Package Weight (Metric) | 11.3400 kg |
035-72735-2
Retaining Ring for Straight Strain Relief Cord Connector Outer Diameter Diameter 0.83, Inner Diameter 0.58
035-72775-1
1/2 Inch Straight Die Cast Zinc Liquidtight Strain Relief Cord Connector, Cord Range 0.125 to 0.250Frequently Asked Questions
What are the available trade sizes for these fittings?
The fittings are available in trade sizes from 3/8 in to 6 in (12mm to 153mm).
What materials are the fittings constructed from?
Fittings from 3/8 in to 1 1/4 in are steel, and 1 1/2 in to 6 in are malleable iron, both with Zinc Chromate finish.
Are both insulated and non-insulated versions available?
Yes, both insulated and non-insulated versions of the fittings are available across various trade sizes.
What are the ingress protection ratings?
The fittings have UL Type 4, 6, 12, 13 (indoor) and 3, 3R, 4, 6 (outdoor) ratings. IEC ratings are IP66, IP67, IP68, IP69.
What is the operating temperature range for these fittings?
The general operating temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA, and -25 to +105°C (-13 to +221°F) for IEC/CE.
Are the seal rings and insulators halogen free?
Yes, the seal rings, insulators, and seal gaskets are halogen free.
Can these fittings be used in hazardous locations?
Yes, they are suitable for Class I Division 2, Class II Division 1 & 2, and Class III Hazardous Locations per NEC® and CE Code.
What is the maximum voltage rating for these fittings?
These fittings are suitable for use in electrical circuits up to 1,000 V.
What standards do these fittings comply with?
The fittings meet UL 514B, CSA C22.2 No. 18.3, and IEC 61386-1, -23 requirements.
What types of fitting bodies are available?
The fittings are available in straight, 45°, and 90° body types with NPT threads.
How to Install T&B Liquidtight Connectors
This guide provides step-by-step instructions for the proper installation of T&B liquidtight flexible metallic conduit connectors, ensuring high performance and reliability in accordance with electrical codes.
Estimated time: 15m
Tools needed:
Hacksaw (32-tooth) or Power Band Saw, Metal Jig, Smooth Jaw Wrench (for PVC coated connectors), Torque Wrench, Hand Protection, Eye Protection
Supplies needed:
Liquidtight Flexible Metallic Conduit, T&B Liquidtight Connector (e.g., 5000 series), PVC Cement (optional, for PVC coated connectors), T&B 140 Series Locknuts (optional, for knockout applications), 5260 Series Sealing Gaskets (optional, for knockout applications)
- Prepare for Installation and Cut Conduit
Before beginning, disconnect all power to prevent risk of shock. Wear appropriate hand and eye protection. Ensure installation is performed by a qualified electrician in accordance with national and local electrical codes. Cut the flexible conduit with a clean, square end using a metal jig, a 32-tooth hacksaw, or a power band saw (24-32 teeth, max 400 ft/min). Do not use an abrasive wheel.
- Assemble the Liquidtight Connector Components
For 5000, 7000, 9000 series, and PVC coated 3300 series connectors, slide the gland nut onto the conduit, followed by the nylon sealing ring. Then, thread in the Safe Edge™ Cone. For PVC coated connectors, tighten with a smooth jaw wrench; if metal is exposed due to gouging, apply PVC cement. For knockout applications, use T&B 140 series locknuts and 5260 series sealing gaskets (purchased separately). For 7000 and 9000 series, order the locknut separately.
- Secure the Connector to the Knockout Box
Insert the connector body through the knockout opening in the box. From the inside of the box, thread the locknut onto the connector body. Tighten the locknut to the specified torque using a torque wrench, referring to the provided torque table in the documentation for the correct value based on the fitting's trade size. For Chase® connector assemblies, ensure the 'O' ring is correctly positioned on the outside of the box and tighten the Chase® Nipple to the body or turn the body onto the Chase® Nipple to secure.
