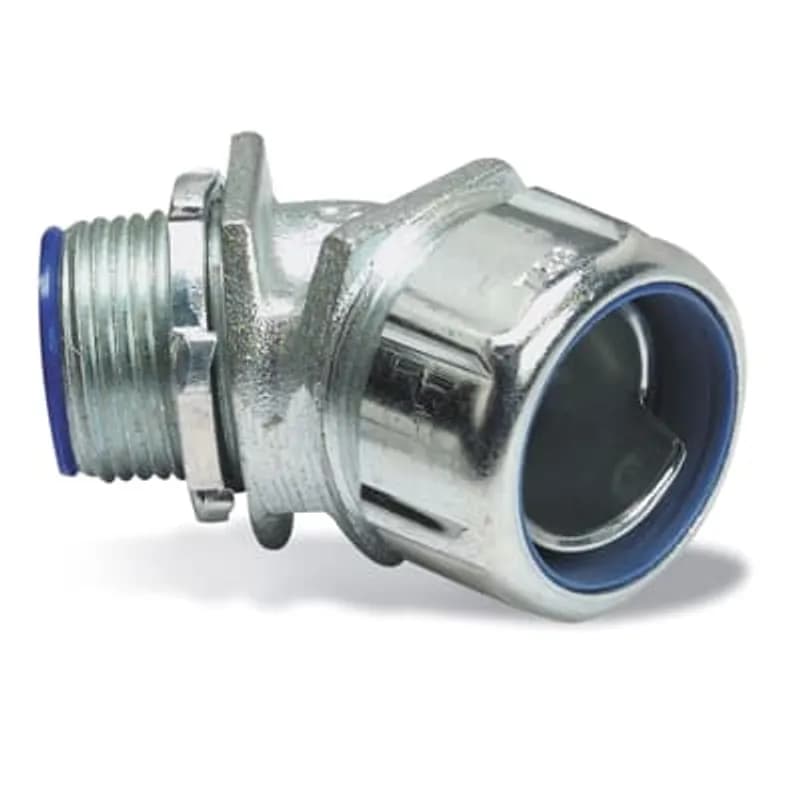

ABB - Installation Products 5346-SG - 1-1/2 Inch 45 Degree Malleable Iron Insulated Connector With Sealing Gasket

ABB Installation Products 5346-SG 1-1/2 Inch 45 Degree Malleable Iron Insulated Connector With Sealing Gasket

UPC: 786209928375


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 2

Multiplier: 2

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 5346-SG 1-1/2 Inch 45 Degree Malleable Iron Insulated Connector with Sealing Gasket is a heavy-duty electrical fitting designed for secure, insulated connections in metal conduit systems. Constructed from malleable iron, this connector provides robust mechanical strength while the integrated sealing gasket ensures environmental protection against moisture, dust, and contaminants. The 45-degree angle design allows for flexible routing in tight spaces, reducing the need for additional bends and fittings. This connector is rated for use with 1-1/2 inch trade size rigid metal conduit (RMC) or intermediate metal conduit (IMC), meeting NEC and UL standards for electrical installations. The insulated throat prevents metal-to-metal contact, safeguarding conductors from abrasion and short circuits. Ideal for industrial, commercial, and utility applications, this connector simplifies installation with its threaded design and pre-installed sealing gasket, eliminating the need for separate sealing components. Compatible with standard conduit systems, it ensures long-term reliability in harsh environments where vibration, corrosion, or temperature fluctuations are present. Manufactured by ABB Installation Products, a trusted name in electrical infrastructure solutions.
  • 1-1/2 inch trade size for RMC/IMC conduit systems
  • 45-degree angle for flexible routing in tight spaces
  • Malleable iron construction for mechanical strength
  • Integrated sealing gasket for environmental protection
  • Insulated throat prevents conductor abrasion and short circuits

Specifications

Material
Malleable Iron
Material
Iron
Size
1-1/2 Inch
Type
Liquidtight Insulated Connector
Package Dimensions (L x W x H)
6.25 IN x 4.75 IN x 4.25 IN
Package Dimensions (L x W x H)
15.875 cm x 12.065 cm x 10.795 cm
Package Weight (Imperial)
1.5000 L
Package Weight (Metric)
0.6800 kg
Liquidtight Conduit Fitting, Straight, Trade Size 2-1/2 Inch, Malleable Iron

LT250-SC

Liquidtight Conduit Fitting, Straight, Trade Size 2-1/2 Inch, Malleable Iron
Connector, Liquid Tight, 45 Degree, Size 1 Inch, Insulated Throat - 105 Degree C

452-SLTI

Connector, Liquid Tight, 45 Degree, Size 1 Inch, Insulated Throat - 105 Degree C
1 Inch Straight Die Cast Zinc Liquidtight Strain Relief Cord Connector, Cord Range 0.375 to 0.500

035-72775-14

1 Inch Straight Die Cast Zinc Liquidtight Strain Relief Cord Connector, Cord Range 0.375 to 0.500
1/2 Inch Steel Type A to 90 Degree Liquidtight Connector With Insulated Throat and Sealing Ring With Steel Retainer

3741

1/2 Inch Steel Type A to 90 Degree Liquidtight Connector With Insulated Throat and Sealing Ring With Steel Retainer
Liquidtight Conduit Fitting, 90 Degree 1-1/4 Inch, Non-Insulated Malleable Iron

5255

Liquidtight Conduit Fitting, 90 Degree 1-1/4 Inch, Non-Insulated Malleable Iron
3 Inch 45 Degree Malleable Iron Insulated Liquidtight Connector

5349

3 Inch 45 Degree Malleable Iron Insulated Liquidtight Connector
1-1/4 Inch Straight Malleable Iron Chase Liquidtight Insulated Connector With Electro-Zinc Plating

5365

1-1/4 Inch Straight Malleable Iron Chase Liquidtight Insulated Connector With Electro-Zinc Plating
3/8 Inch Wire Mesh Grip Assembly, Pack of 10

WMG-LT1

3/8 Inch Wire Mesh Grip Assembly, Pack of 10

How to Install T&B Liquidtight Connectors

This guide provides step-by-step instructions for the proper installation of T&B liquidtight connectors for flexible metallic conduit, ensuring high performance and reliability in accordance with national and local electrical codes.

Estimated time: 30m

Tools needed:

Hacksaw, Metal jig, Power band saw, Smooth jaw wrench, Hand protection, Eye protection, Torque wrench

Supplies needed:

Liquidtight flexible metallic conduit, T&B Liquidtight connector, T&B 140 series locknuts (for knockout applications), T&B 5260 series sealing gaskets (for knockout applications), PVC cement (optional, for PVC coated connectors)

  1. Prepare the Conduit

    Wear hand and eye protection. Disconnect power before installation. Cut the flexible conduit with a clean, square end. Use a metal jig or a sharp hacksaw (32 Tooth/ln. no. set) or a power band saw (24-32 Tooth/ln. wavy set, not more than 400’/minute) for high production. Do not use an abrasive wheel.

  2. Assemble the Connector Components

    For 5000, 7000, 9000 series, and PVC coated 3300 series connectors, slide the gland nut onto the conduit, then slide on the nylon sealing ring, and finally thread in the Safe Edge™ Cone. For PVC coated connectors, use a smooth jaw wrench for tightening to prevent gouging. If gouging occurs exposing metal, apply PVC cement.

  3. Install the Connector into the Box

    Insert the connector body into the knockout box. For knockout applications, use T&B® 140 series locknuts and 5260 series sealing gaskets (purchased separately). For 7000 and 9000 series, order the locknut separately. Ensure the 'O' ring is correctly positioned on the outside of the box.

  4. Secure and Tighten the Connector

    Secure the connector by tightening the locknut to the body. Refer to the tightening torque table for the appropriate torque value based on the fitting's trade size (e.g., 200 lb-in for 3/8", 300 lb-in for 1/2", 500 lb-in for 3/4", 700 lb-in for 1", 1000 lb-in for 1 1/4", 1200 lb-in for 1 1/2", 1600 lb-in for 2" to 4"). For Chase® connector assemblies, lock-up by tightening the Chase® Nipple to the body or by turning the body onto the Chase® Nipple.
