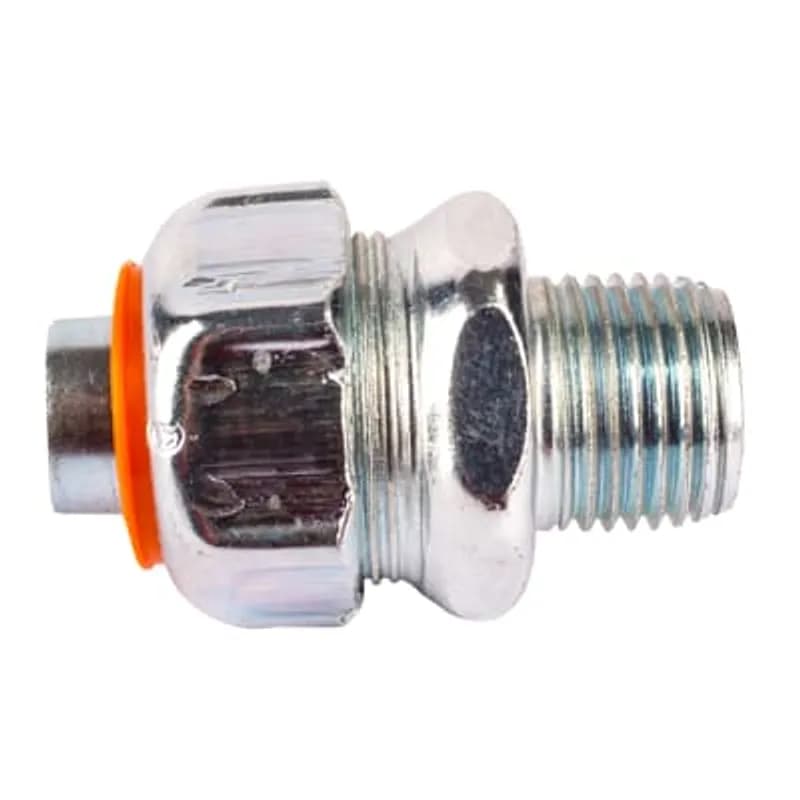

ABB Installation Products 5233-PT 3/4 Inch Straight Zinc Plated Steel Liquidtight Push-in Connector, Non-insulated
UPC: 786209674081
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 3/4 inch trade size for standard LFMC/LFNC compatibility
- Zinc-plated steel construction for corrosion resistance
- Push-in design for tool-free, rapid installation
- Non-insulated for direct grounding continuity
- Straight configuration for smooth cable routing
Specifications
Application | For Liquid and Dust-Tight Connections Between Flexible Jacketed Metallic Conduit and a Box or an Enclosure |
Declaration of Conformity - CE | 9AKK107492A9906 |
Finish | Zinc Plating |
Material | Steel |
Size | 3/4 Inch |
Special Features | Innovative Labor-Saving Design, Simple Push-In Connection |
Standard | UL E23018, CSA |
Type | Connectors-Straight |
Package Dimensions (L x W x H) | 8 IN x 5 IN x 4 IN |
Package Dimensions (L x W x H) | 20.32 cm x 12.7 cm x 10.16 cm |
Package Weight (Imperial) | 0.2300 L |
Package Weight (Metric) | 0.1040 kg |
Frequently Asked Questions
What is the maximum voltage rating for these fittings?
These fittings are suitable for use in electrical circuits up to 1,000 V.
Can these fittings be used in hazardous locations?
Yes, they are suitable for use in Class 1 Division 2, Class 2 Division 1 & 2 Hazardous Locations per NEC® Section 500.
What types of conduit bodies are available?
The fittings are available in straight, 45°, and 90° conduit body configurations.
What are the ingress protection ratings for these fittings?
The fittings have UL Type 3, 3R, 4, 12, 13 ratings, CSA Type 3, 3R, 4, 12, 13, NEMA Type 3, 3R, 4, 12, 13, and IEC IP66, IP67 ratings.
What thread type do these fittings use?
The fittings use NPT threads.
What is the operating temperature range for the fittings?
The working temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA, and -25 to +105°C (-13 to +221°F) for IEC/CE.
What are the available trade sizes for these fittings?
The fittings are available in trade sizes from 3/8 in to 1 in (12mm to 27mm).
What is the operating temperature range for the fittings?
The working temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA, and -25 to +105°C (-13 to +221°F) for IEC/CE.
What thread type do these fittings use?
The fittings use NPT threads.
What types of conduit bodies are available?
The fittings are available in straight, 45°, and 90° conduit body configurations.
How to Install the 5233-PT Push-in Liquidtight Flexible Metal Conduit Fitting
Instructions for installing and securing a 5233-PT push-in liquidtight flexible metal conduit fitting.
Estimated time: 15m
Tools needed:
Hacksaw or band saw, Measuring tape
Supplies needed:
5233-PT fitting, Liquidtight flexible metal conduit
- Prepare the Conduit
Cut the conduit using a sharp hacksaw or band saw, ensuring the end cut is clean and square. Remove any burrs or frayed material from the cut edge.
- Insert the Conduit into the Fitting
Align and carefully push the conduit onto the exposed end of the ground cone. Once the end of the conduit has started into the throat of the sealing ring, firmly push the conduit completely in until it bottoms out. To ensure the conduit bottoms out, mark the conduit from the cut end at the depth specified in the table (refer to document for specific depths based on trade size). When fully inserted, the mark should be level to the top of the sealing ring. Do not pull back on the conduit once it is fully inserted.
- Tighten the Gland Nut
Torque the gland nut to the specified value according to the trade size of the conduit. Refer to the documentation for the exact torque values (e.g., 3/8" conduit requires 200 lbs.-in.). Ensure the fitting is fully torqued for proper performance.
- Verify Installation
Ensure the conduit is fully inserted and the gland nut is properly torqued. For threaded enclosure applications, the fitting may be installed first, followed by the conduit attachment. For knockout applications, use appropriate sealing rings to ensure a liquidtight seal between the fitting and the enclosure.
