Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Overview

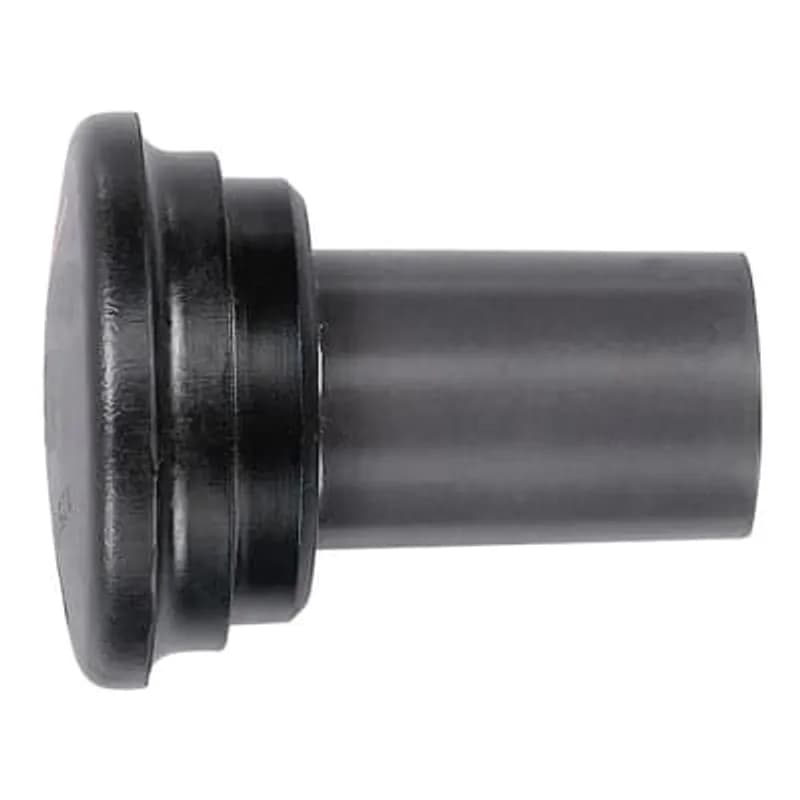

- 15/25kV voltage rating for medium-voltage systems
- 200 Amp current rating for compatibility with standard distribution systems
- Deadbreak design enables safe connection/disconnection under load
- Insulated construction for dielectric integrity and environmental resistance
- Requires bails (sold separately) for proper installation
Specifications
Application | Fully shielded, fully submersible insulating plug designed for de-energized operation. It is suitable for use on 15kV and 25kV class systems |
Connection Type | Deadbreak |
Current Rating | 200 A |
Material | Insulated |
Material | EPDM-Rubber |
Series | K150 |
Size | 3.00 inches (76.2 mm) long, 2.46 inch (62.5 mm) Diameter |
Special Features | 15/25kV, 200 Amp Deadbreak Rated. Fits standard Elastimold deadbreak straight receptacle. Peroxide-cured insulation and jacket. Provides Dead-End for circuit. Fully shielded, fully submersible |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Insulated Plug |
Voltage Rating | 15/25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.1900 L |
Package Weight (Metric) | 0.0860 kg |
14W47-Y
Watertite® Standard Molded Y Cordset, 2 Pole/3 Wire, Cordset Length 0.91m (3.0' ), NEMA 5-15, 125V
COMBINER
Solar combiners (solar panel combiner boxes) are engineered to combine power from several solar panels onto a common bus. They are specially designed for the types of wiring used in photovoltaic (PV) systems. The output would then be connected to a charge controller or inverter depending on the type of system. Solar combiners also allow for a transition to larger wires between the array and the batteries or inverter to minimize transmission voltage drop all while protecting the array. Streamline now offers a variety of premium plug and play solar combiner box solutions. Built in Streamlines UL 508-A panel shop just outside of Milwaukee Wisconsin these systems can be trusted to perform. All combiner boxes are hand-assembled using best-in-class name brand components and are built to stand up under even the harshest conditions. In addition they are highly serviceable. The polycarbonate enclosure features a full-length piano-hinged door with a non-metallic latch. They offer a variety of mounting options thanks to brass inserts on the rear wall of the enclosure and the lid. Made in the U.S.A the enclosures are UL/cUL NEMA Type 6P IP68 as well as UV and chemical resistant.
SP4
The Polaris SP4 Set Screw Plug is a replacement part that take the place of the secure removable plugs present in many Polaris pre-insulated connectors. This plug fits connectors sized for 4 AWG wires, covering the set screws used to tighten their connections. Protect the interior of your Polaris pre-insulated connectors, each port of which is pre-loaded with an oxide inhibitor to ensure a low-contact resistance connection, by guarding the set screws from outside contaminants. Polaris designs connectors for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
LCMA6-10-C
The LCMA6-10-C Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has a rounded tongue convenient for use in tight spaces and a beveled wire entry for fast and easy installation. The inspection window aids to visually assure full conductor insertion, and the tin-plated material helps to inhibit corrosion.Frequently Asked Questions
Are bails included with the K150DP plug?
No, bails are required for installation but are not included with the K150DP kit and must be ordered separately.
What is the K150DP's primary application?
The K150DP is a fully shielded, fully submersible insulating plug designed for de-energized operation on 15kV and 25kV class systems.
What products are compatible with the K150DP?
The K150DP is used to "dead-end" Elastimold® mating products such as the K150T and K151SR Straight Receptacle.
Is the K150DP suitable for energized circuits?
No, the K150DP dead-end plug is designed for de-energized operation.
What are the operating voltage limits for 15kV class?
For 15kV class, the maximum operating voltage is 8.3kV phase-to-ground and 14.4kV phase-to-phase.
What is the continuous current rating of the K150DP?
The K150DP has a continuous current rating of 200 Amps for both 15kV and 25kV voltage classes.
What is the impulse withstand rating for 25kV class?
For 25kV class, the impulse withstand (BIL) is 125kV.
What standard does the K150DP meet?
The K150DP meets ANSI/IEEE Standard 386, Latest Revision.
What type of insulation does the K150DP use?
The K150DP features peroxide-cured insulation and jacket.
Is the K150DP suitable for submersible applications?
Yes, the K150DP is fully shielded and fully submersible.
How to Install the K150-DP Deadbreak Dead-End Plug
This guide provides step-by-step instructions for the safe and proper installation of the Elastimold 150DP and K150DP dead-end plugs, used to insulate receptacle portions of various Elastimold products.
Estimated time: 15m
Supplies needed:
K150-DP Dead-End Plug, Nylon Venting Rod, Lubricant
- Prepare the Receptacle and Plug
Ensure all apparatus is de-energized during installation or removal of parts to prevent serious or fatal injury. Inspect the mating receptacle interface, verifying it is dry and clear of contaminants. Remove the protective shipping cap from the dead-end plug.
- Lubricate the Plug Interface
Apply the supplied lubricant to the now exposed interface area of the dead-end plug. DO NOT SUBSTITUTE any other lubricant to ensure proper performance and safety.
- Install the Dead-End Plug
Insert the nylon venting rod into the receptacle area of the mating product to exhaust air during assembly. Carefully insert the dead-end plug into the receptacle area, pushing it in as far as possible. Once the plug is fully seated, remove the nylon venting rod to complete the installation.
