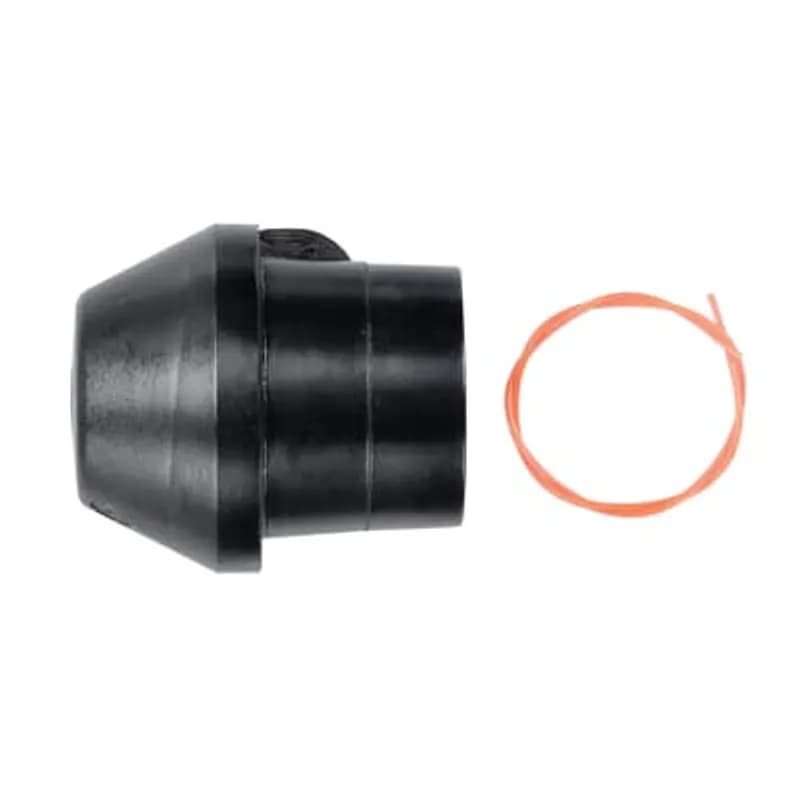

ABB Installation Products K150-DR 15/25kV 200 Amp, Deadbreak Insulated Cap. Bails are required, but not included, order…

The K150DR is a fully shielded, fully submersible insulating cap designed for de-energized operation.

The K150DR uses peroxide-cured insulation and jacket.

For the 25kV class, the K150DR has a 125kV BIL impulse withstand rating.

For the 15kV class, the K150DR has a 95kV BIL impulse withstand rating.

For 25kV class, the maximum phase-to-ground operating voltage is 15.2kV.

For 15kV class, the maximum phase-to-ground operating voltage is 8.3kV.

No, bails are required for the K150DR but are not included in the kit and must be ordered separately.

Each K150DR kit includes one insulated cap, one 82-08 lubricant, and one IS-0005 installation instruction.

The K150DR fits standard Elastimold deadbreak bushings.

The momentary and fault close rating is 10kA Symmetrical for 10 cycles.
