Contact for Pricing
Overview

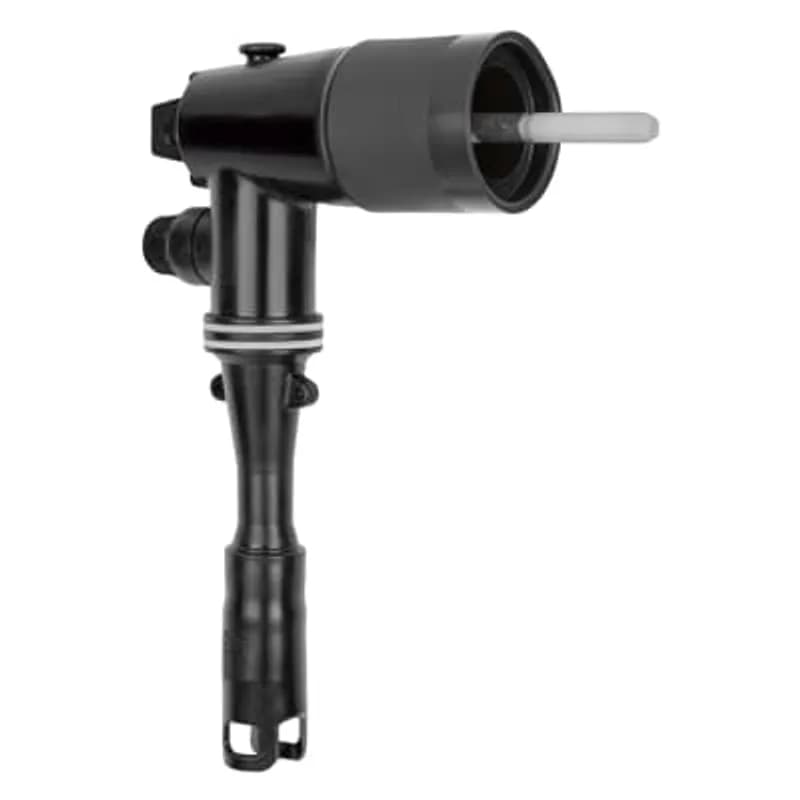

- 25kV, 200 Amp Loadbreak Elbow Connector
- Accommodates 1.090-1.310 inch cable insulation
- Bi-metal conductor lug for 1/0 Stranded/Compressed or 2/0 Solid/Compact conductors
- Built-in jacket seal for environmental protection
- Includes test point for voltage detection and system testing
Specifications
Amperage Rating | 200 A |
Application | Designed for connecting to and operating 28kV class, 200 Amp Distribution Apparatus |
Color | Black |
Conductor Range | 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Housing - EPDM-Rubber |
Size | Cable Insulation Diameter 1.090-1.310 inches |
Special Features | Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in Cable Jacket Seal |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector with Test Point and Jacket Seal |
Voltage Rating | 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
K656LR-E0240
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 0.530 inch to 0.680 inch. Conductor Size Compressed/Stranded 1/0 or Compact/Solid 2/0. No Sealing Kit. Includes Elow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart.
262LR-E5270
25kV, 200 Amps, Loadbreak Elbow, no Sealing Kit, Cable Insulation Diameter 1.090-1.310 inches, (27.69-33.27 mm), Bi-Metal Conductor, Conductor Size 4/0 Stranded/Compressed, 250 Solid/Compact. With Test Point. Kit Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installion Instruction Sheet and Crimp Chart.
167LRT-F5220-SG3
15kV, 200 Amps, Loadbreak, Elbow-T, with Sealing Kit, Cable Insulation Diameter .640- .820 inches, Bi-Metal Lug, Conductor Size #2 Stranded/Compressed or #1 Solid/Compact.167LRT-G5220-SG3
200 Amp, 15kV, Loadbreak Bolted Elbow with Tap, Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded #2 or Solid/Compact #1. 200ECS-G3 Jacket Seal and Grounding Kit Included. Includes 02800X Bi-Metal Contact.
756LR-M0270
35kV, 600 Amp, Deadbreak Elbow, Cable Insulation Diameter 1.370 - 1.630 inches, Aluminum Compression Lug. Conductor Size AWG Compressed/Stranded 4/0 or Solid/Compact 250, No Sealing Kit
261LR-B5220-S
25/28kV, 200 Amp, Elbow Connector, Loadbreak, with Sealing Kit, No Test Point, Cable Insulation Diameter .635-.905 inches, Bi-Metal Lug, Conductor Size #2 Stranded/Compressed or #1 Compact/Solid.756LR-L0330
35kV, 600 Amp, Deadbreak Elbow, with Test Point, includes Insulated Plug, Cap, Stud, Lug and Cable Adapter. No Sealing Kit. Cable Insulation Diameter 1.180-1.465 inches, Aluminum Lug, Conductor Size 500 Stranded/Compressed.Frequently Asked Questions
What standards and certifications does the product meet?
The product is IEEE 386 compliant and has ANSI certification, in addition to RUS acceptance.
Does the loadbreak elbow have RUS acceptance?
Yes, the enhanced Elastimold 200 amp loadbreak elbow has Rural Utilities Service (RUS) acceptance from the U.S. Department of Agriculture (USDA).
What safety features are included in the enhanced elbow?
The enhanced elbow features improved insulation for 15 kV, rigid probe support, and a no-stick interface with Elastimold bushings. It also includes a robust stainless-steel pulling eye.
What are the voltage ratings for this loadbreak elbow?
The Elastimold 200 amp loadbreak elbow is designed for 15 kV and 25 kV applications.
What is the Elastimold 200 amp loadbreak elbow?
It is an enhanced 200 amp loadbreak elbow designed for 15 kV and 25 kV series, incorporating innovative design and manufacturing experience.
What is the Elastimold 200 amp loadbreak elbow?
It is an enhanced 200 amp loadbreak elbow designed for 15 kV and 25 kV series, incorporating innovative design and manufacturing experience.
What are the voltage ratings for this loadbreak elbow?
The Elastimold 200 amp loadbreak elbow is designed for 15 kV and 25 kV applications.
What safety features are included in the enhanced elbow?
The enhanced elbow features improved insulation for 15 kV, rigid probe support, and a no-stick interface with Elastimold bushings. It also includes a robust stainless-steel pulling eye.
Does the loadbreak elbow have RUS acceptance?
Yes, the enhanced Elastimold 200 amp loadbreak elbow has Rural Utilities Service (RUS) acceptance from the U.S. Department of Agriculture (USDA).
What standards and certifications does the product meet?
The product is IEEE 386 compliant and has ANSI certification, in addition to RUS acceptance.
How to Install Elastimold 261LRJS/262LRJS Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe installation and assembly of Elastimold 261LRJS and 262LRJS Loadbreak Elbow Connectors with Jacket Seal on UD cable.
Estimated time: 1h 30m
Tools needed:
Probe Wrench, Crimp tool, Wire brush, Hotstick
Supplies needed:
Elbow Connector Housing, Compression Lug, Probe, Lubricant (Do Not Substitute), 3 Sealing Strips (mastic), Vinyl tape, Separate copper wire (No. 14 AWG / 2.5mm or equivalent), Appropriate connector (for grounding), HV insulated cap(s) or connector(s) (if replacing shipping covers)
- Observe Safety Precautions
DANGER: De-energize all apparatus during installation or removal of parts, except for test point caps and indicators. Install and operate all apparatus in accordance with individual user, local, and national work rules. Do not touch or move energized products in the work area. Loadbreak connectors must be operated with a full insulated 'hotstick' type live-line tool. Inspect parts for damage, rating, and compatibility with mating parts. This product should be installed only by competent personnel trained in good safety practices involving high voltage electrical equipment. If supplied with protective shipping cover(s), remove them and replace with appropriate HV insulated cap(s) or connector(s) before submerging or energizing the circuit.
- Perform Pre-Installation Checks
Check the contents of the package to ensure they are complete and undamaged. Verify all components for proper fit with the cable and/or mating products. Check threads by threading the probe into the compression lug; if resistance is encountered before full assembly, check for damage and replace the component. Read the entire installation instructions before starting. Have all required tools at hand and maintain cleanliness throughout the procedure.
- Train the Cable
Train the cable to ensure sufficient slack for ease of operation. To facilitate connection of the neutral to the tank ground and hotstick operation, pull extra cable 24-26 inches beyond the centerline of the bushing. Place a tape mark at the centerline of the bushing. Remove the outer jacket 7-3/4 to 8 inches further back from the tape mark. Alternatively, connect the neutral wires to the tank ground with a jumper or braid. Unwrap the neutral wire back past the bushing centerline. Cut excess cable squarely at the centerline of the bushing.
- Prepare the Cable End
Wrap one strip of mastic, stretching slightly, around the cable jacket. Bend all neutral wires straight back over the mastic and along the cable, pressing them into the mastic. Wrap the second strip of mastic completely around the outer jacket, overlapping the neutral wires imbedded into the first mastic strip. Use a third strip of mastic, if needed, to build up the outer diameter in the area of the first mastic location. Cover all mastic with vinyl tape. Remove the insulation shield and insulation from the cable end, cutting squarely and taking care not to nick the conductor. Wire brush bare aluminum conductors and immediately install the compression lug. Rotate the lug to spread the inhibitor. Position the compression lug so the contact threaded hole aligns with the bushing bore. Crimp the lug starting at the crimp line mark, rotating 180 degrees for each successive crimp. Carefully wipe excessive inhibitor from the outside of the lug and cable. Remove the insulation shield as shown in the provided diagram. Bevel the insulation end a maximum of 1/8 inch. Thoroughly clean the insulation to remove all traces of conductive residue.
- Assemble the Elbow Connector
Lubricate the cable insulation and the inside of the elbow housing with the lubricant supplied; DO NOT SUBSTITUTE. Keep the insulation clean of dirt and grime. Slide the elbow connector onto the cable with a back and forth twisting motion. Wipe off all excess lubricant. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, taking care not to cross-thread. The probe must turn freely for approximately four turns before becoming snug. Tighten the probe with a wrench until the wrench bends.
- Connect the Concentric Neutral
Insert one end of a separate copper wire (No. 14 AWG / 2.5mm or equivalent) through the grounding eye on the elbow. Twist the wire tightly, taking care not to damage the eye. Pull the hood over the concentric neutral seal area on the cable by pulling the tabs and/or rolling the seal down. Twist all neutral wires and connect them to ground using an appropriate connector. Provide adequate slack in the wires for elbow operation.
- Prepare for Bushing Connection
WARNING: Lubricate the receptacle portion of the elbow connector and the mating bushing with the lubricant supplied ONLY IF THE TRANSFORMER AND ELBOW ARE KNOWN TO BE DE-ENERGIZED. Do not operate the connection by hand; use a hotstick as per operating instructions.
