Overview

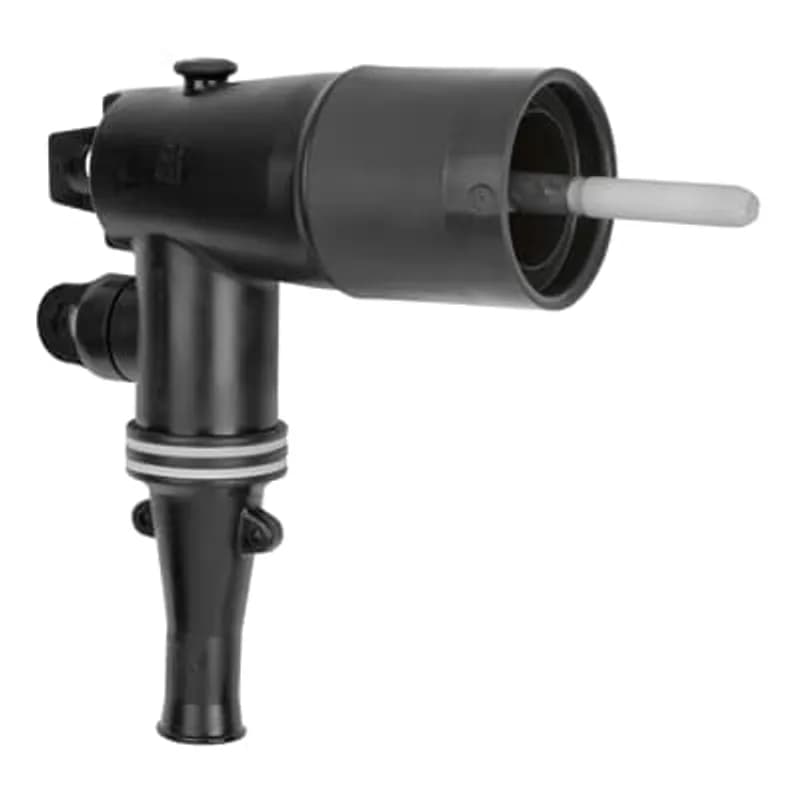

- 25kV rated, 200 Amp continuous current capacity
- Accommodates cable insulation diameters from 0.805" to 1.060"
- Integrated test point for safe voltage testing under load
- Bi-metal compression lug for #3 stranded copper wire
- Designed for medium-voltage loadbreak applications
Specifications
Amperage Rating | 200 A |
Application | 200 kV, 200 Amp |
Color | Black |
Conductor Range | #3 STR/COMPR AWG , #2 SOL/COMPT AWG |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Housing - EPDM-Rubber |
Size | 9.03 inch (299.4 mm) X 8.20 inch (208.3 mm) not including probe, 2.86 inch (72.6 mm) Diameter |
Special Features | 28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector with Test Point |
Voltage Rating | 28 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
262LRJS-B5210
28kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point, .635 inch - .905 Inch Cable Insulation Diameter, #3 Stranded/Compressed or #2 Compact/Solid Wire Size, Bi-Metal Compression Lug.
162LR-D5270
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .890 inch - 1.220 Inch Cable Insulation Diameter, 4/0 Stranded Wire Size, Bi-Metal Compression Lug
262LR-C2220
25kV 200 Amp, Loadbreak Elbow Connector with Test Point, .805 inch - 1.060 Inch Cable Insulation Diameter, #2 Stranded Wire Size, Copper Compression Lug.262LR-B5240
25kV 200 Amp, Loadbreak Elbow Connector with Test Point, .635 inch - .905 inch Cable Insulation Diameter, 1/0 Stranded Wire Size, Bi-Metal Compression Lug.262LR-C5210-S
200 Amp, 25kV, Loadbreak Elbow with Test Point, Cable Insulation Diameter 0.805 inch to 1.060 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded #3/Solid #2/mmSquared 26.67. 200ECS Jacket Seal Included.
162LR-D5270-SG3
200 Amp, 15kV, Loadbreak Elbow Connector, Cable Insulation Diameter 0.890 inch to 1.220 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67. 200ECS-G3 Jacket Seal and Grounding Kit Included.162LR-D5260
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .890 inch - 1.220 Inch Cable Insulation Diameter, 3/0 Stranded Wire Size, Bi-Metal Compression LugFrequently Asked Questions
Is an integral jacket seal available for the elbow?
Yes, an optional integral jacket seal is available for the enhanced Elastimold 200 amp loadbreak elbow.
Does the elbow have grounding eye positions?
Yes, the enhanced design incorporates dual grounding eye positions.
What material is the pulling eye made from?
The pulling eye is made from robust stainless steel, promoting durable hotstick control.
What are the voltage ratings for this loadbreak elbow?
The enhanced Elastimold 200 amp loadbreak elbow is available for 15 kV and 25 kV series applications.
What is the Elastimold 200 amp loadbreak elbow?
It is an enhanced loadbreak elbow for 15 kV and 25 kV series, designed for switching operations.
What safety features does the enhanced loadbreak elbow include?
It features improved insulation for 15 kV elbows, rigid probe support, a no-stick interface with Elastimold bushings, and a robust stainless-steel pulling eye.
Is the loadbreak elbow compatible with Elastimold bushings?
Yes, it has a no-stick interface when used with Elastimold bushings, which has been NEETRAC tested.
What certifications does the Elastimold elbow hold?
The product is IEEE 386 compliant, ANSI certified, and has Rural Utilities Service (RUS) acceptance from the USDA.
Does the loadbreak elbow have RUS acceptance?
Yes, the enhanced Elastimold 200 amp loadbreak elbow has Rural Utilities Service (RUS) acceptance from the U.S. Department of Agriculture (USDA).
What design improvements offer increased flexibility?
The enhanced design includes additional sizes, improved wider cable ranges, an easy order system, and an optional integral jacket seal.
How to Install the 262LR Loadbreak Elbow Connector
This guide provides step-by-step instructions for the safe installation and initial setup of the Elastimold 262LR Loadbreak Elbow Connector. It covers cable preparation, lug crimping, elbow assembly, and grounding procedures for high voltage applications.
Estimated time: 1h 30m
Tools needed:
Probe wrench, Wire brush, Crimp tool, Hotstick, Wire strippers, Utility knife or cable cutting tool, Multimeter or suitable sensing device
Supplies needed:
Elbow Connector Housing, Compression Lug, Probe, Lubricant (supplied with kit), Copper ground wire (No. 14 AWG / 2.5mm), Neutral wire connector
- Prepare the Cable for Termination
Ensure all apparatus is de-energized before starting. Train the cable to provide sufficient slack for future operation. Cut the cable squarely at the bushing centerline. Depending on your cable type (non-jacketed concentric neutral, jacketed concentric neutral, jacketed with drain wires, or jacketed copper tape shield), remove the outer jacket and/or shield to the specified dimensions (e.g., 9-5/8 inches for jacketed cables). Manage neutral or ground wires by unwrapping, binding, and folding them back as instructed for your specific cable type. If applicable, slide any cold shrink tubes onto the cable at this stage.
- Prepare Conductor and Insulation
Remove the insulation shield and insulation 2-1/8 inches (55mm) from the cable end, ensuring a square cut without nicking the conductor. Thoroughly wire brush any bare aluminum conductors and immediately install the compression lug. Rotate the lug to spread the inhibitor and position it so the contact threaded hole aligns with the bushing bore. Crimp the lug according to the manufacturer's chart, rotating 180 degrees for each successive crimp. Carefully wipe off any excess inhibitor. Remove the insulation shield 6-7/8 inches (175mm) from the lug end and bevel the insulation end a maximum of 1/8 inch (5mm). Finally, thoroughly clean the insulation to remove all traces of dirt or excess inhibitor.
- Assemble the Elbow Connector
Lubricate the cable insulation and the inside of the elbow housing using only the lubricant supplied with the kit; do not substitute. Maintain cleanliness, keeping the insulation free of dirt and grime. Slide the elbow connector onto the cable using a back-and-forth twisting motion. Wipe off any excess lubricant. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the supplied probe wrench until the wrench bends, indicating proper torque.
- Connect Grounding Wires
Insert one end of a separate copper wire (No. 14 AWG / 2.5mm or equivalent) through the grounding eye on the elbow and twist it tightly, taking care not to damage the eye. If the elbow was preordered with a ground wire, proceed to the next step. Twist all concentric neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack in the wires for elbow operation. If using a cold shrink grounding kit, refer to its specific instructions for completion.
- Connect Elbow to Bushing
CONFIRM THAT THE TRANSFORMER AND ELBOW ARE DE-ENERGIZED before proceeding. Lubricate the receptacle portion of the elbow connector and the mating bushing with the lubricant supplied. Securely fasten a full insulated "hotstick" type live-line tool to the loadbreak connector pulling eye. Insert the probe tip approximately 2 inches (50mm) into the bushing, then immediately push the elbow home with a fast, firm, straight motion to engage the internal lock. Do not operate by hand.
