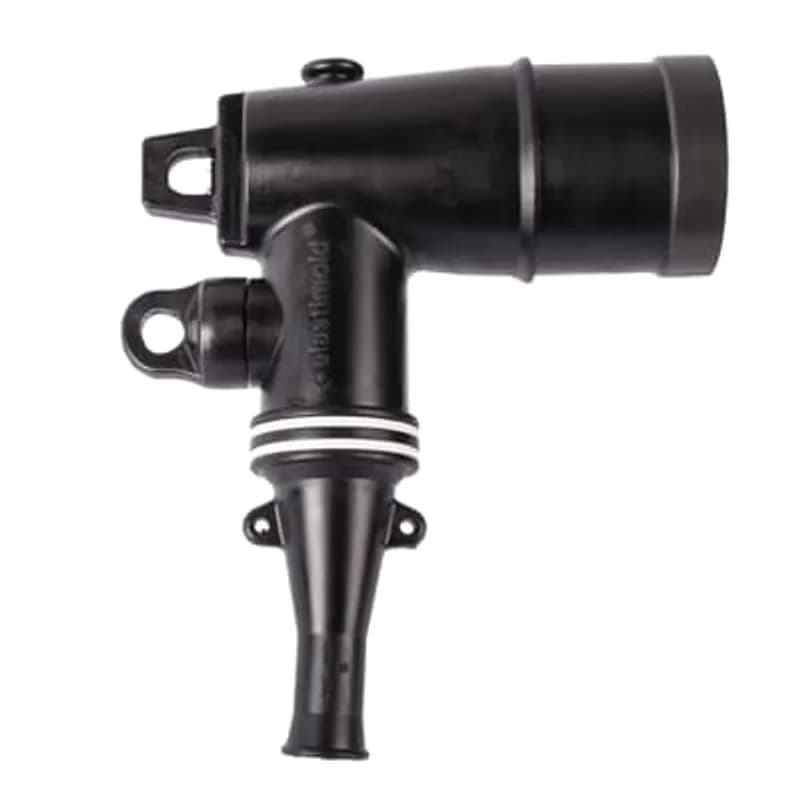

Overview
- 15kV operating voltage rating
- 200 Amp continuous current rating
- Accommodates cable insulation diameters from 0.890 to 1.220 inches
- Designed for 3/0 stranded wire size
- Features an integrated test point for safe circuit testing
- Constructed with a bi-metal compression lug for versatile conductor termination
Specifications
Amperage Rating | 200 A |
Application | 15kV, 200 Amp |
Color | Black |
Conductor Range | 3/0 STR/COMPR AWG , 4/0 SOL/COMPT AWG |
Connection | Push-In |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Housing - EPDM-Rubber |
Size | 7.76 inch (197.1 mm) X 9.03 inch (229.4 mm), 2.92 inch (74.2 mm) Diameter |
Special Features | 15kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector with Test Point |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.1400 L |
Package Weight (Metric) | 0.9710 kg |
162LR-B-2260
200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.635 inch to 0.905 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01.
262LR-B5240-SG3
200 Amp, 25kV, Loadbreak Elbow with Test Point, Cable Insulation Diameter 0.635 inch to 0.905 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS-G3 Jacket Seal and Grounding Kit Included.
162LR-D5270-S
200 Amp, 15kV, Loadbreak Elbow Connector, Cable Insulation Diameter 0.890 inch to 1.220 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67. 200ECS Jacket Seal Included.
262LR-B5230
25kV 200 Amp, Loadbreak Elbow Connector with Test Point, .635 inch - .905 inch Cable Insulation Diameter, #1 Stranded Wire Size, Bi-Metal Compression Lug.162LR-C5260-SG3
200 Amp, 15kV, Loadbreak Elbow Connector, Cable Insulation Diameter 0.805 inch to 1.060 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01. 200ECS-G3 Jacket Seal and Grounding Kit Included.162LR-D5240
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .890 inch - 1.220 Inch Cable Insulation Diameter, 1/0 Stranded Wire Size, Bi-Metal Compression Lug162LR-D5250
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .890 inch - 1.220 Inch Cable Insulation Diameter, 2/0 Stranded, 2/0 Solid Wire Size, Bi-Metal Compression Lug, No Sealing KitFrequently Asked Questions
What is the maximum operating voltage for this elbow connector?
The ABB 162LR-D5260 loadbreak elbow connector has a maximum operating voltage of 15kV.
What cable insulation diameters can this connector accommodate?
This connector is designed to fit cable insulation diameters ranging from 0.890 inches to 1.220 inches.
What wire size is this elbow connector designed for?
The ABB 162LR-D5260 is designed for use with 3/0 stranded wire.
Does this connector have a test point?
Yes, the ABB 162LR-D5260 features an integrated test point for safe circuit testing.
What type of lug is used for termination?
This connector utilizes a bi-metal compression lug for termination.
What is the continuous current rating of this connector?
The ABB 162LR-D5260 has a continuous current rating of 200 Amps.
How to Install 161LR/162LR Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of 161LR and 162LR Loadbreak Elbow Connectors, including cable preparation, elbow assembly, and grounding.
Estimated time: 1h
Tools needed:
Probe Wrench, Wire strippers, Crimp tool, Wire brush, Hotstick, Cable cutters
Supplies needed:
Elbow Connector Housing, Compression Lug, Probe, Lubricant (supplied), UD Cable, No. 14 AWG / 2.5mm Copper Wire, Appropriate ground connector, Vinyl tape (as needed), Conductive copper tape (as needed), Cold shrink tube (as needed), Cleaning supplies
- Perform Initial Safety Checks and De-energize Apparatus
Ensure all apparatus in the work area are de-energized before beginning installation. Verify that all components are undamaged, rated correctly, and compatible with mating parts. Check the contents of the package for completeness and thread the probe into the compression lug to ensure free movement. DANGER: All apparatus must be de-energized during installation or removal of part(s) except for test point caps and indicators that can be installed and operated energized. Failure to follow these instructions will result in serious or fatal injury.
- Prepare the Cable for Initial Termination
Train the cable to ensure adequate slack for operation. Based on your cable type (e.g., non-jacketed, jacketed concentric neutral, jacketed with drain wires, or jacketed copper tape shield), prepare the neutral or ground wires and remove the outer jacket and/or copper tape shield to the specified lengths. Cut the cable squarely at the bushing centerline. Refer to the specific cable type instructions in the manual for precise measurements.
- Prepare Conductor and Insulation
Remove the insulation shield and insulation 2-1/8 inches (55mm) from the cable end, ensuring a square cut without nicking the conductor. Wire brush bare aluminum conductors and immediately install the compression lug, rotating to spread inhibitor. Align the lug's threaded hole with the bushing bore and crimp according to the lug's instructions. Remove the insulation shield as shown (6-7/8 inches / 175mm back), bevel the insulation end by 1/8 inch (5mm) maximum, and thoroughly clean the insulation.
- Assemble the Elbow Connector
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Slide the elbow connector onto the cable with a back-and-forth twisting motion, then wipe off any excess lubricant. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends.
- Ground the Elbow Connector
Insert one end of a separate copper wire (No. 14 AWG / 2.5mm or equivalent) through the grounding eye on the elbow and twist tightly, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack for elbow operation.
- Connect the Elbow to the Bushing Plug
CONFIRM THAT THE TRANSFORMER AND ELBOW ARE DE-ENERGIZED. Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. Securely fasten a hotstick to the loadbreak connector pulling eye. Insert the probe tip approximately 2 inches (50mm) into the bushing, then immediately push the elbow home with a fast, firm, straight motion to engage the internal lock. DANGER: Do not operate by hand. Use a full insulated 'hotstick' type tool.
