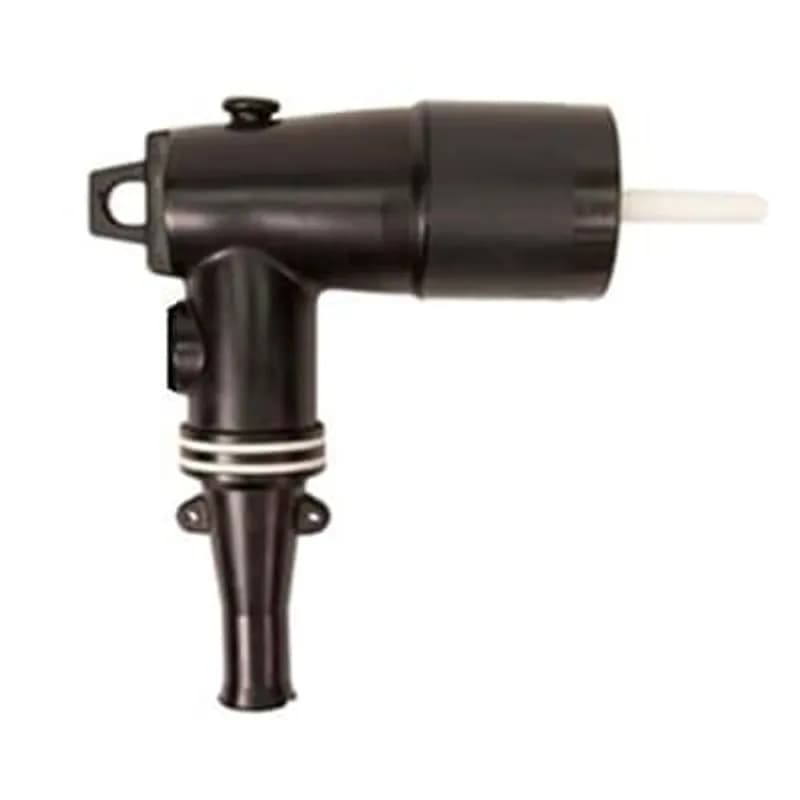

ABB Installation Products 261LR-D5270-S 25/28kV, 200 Amp, Loadbreak Elbow without Test Point, Cable Insulation Diameter 0.890…
UPC: 075114191104
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Voltage rating: 25/28kV
- Current rating: 200 Amps
- Cable insulation diameter range: 0.890 inch to 1.220 inch
- Bi-metal compression lug for 4/0 AWG compressed stranded or 250 mm² solid conductors
- Includes 200ECS jacket seal for environmental protection
Specifications
Amperage Rating | 200 A |
Application | 25/28 kV, 200 Amp |
Color | Black |
Conductor Range | 4/0 STR/COMPR AWG , 250 kcmil |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Housing - EPDM-Rubber |
Size | 9.03 inch (299.4 mm) X 7.89 inch (200.4 mm) not including probe, 2.86 inch (72.6 mm) Diameter |
Special Features | 25/28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector |
Voltage Rating | 25 to 28 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |

162LR-D5270-S
200 Amp, 15kV, Loadbreak Elbow Connector, Cable Insulation Diameter 0.890 inch to 1.220 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67. 200ECS Jacket Seal Included.
261LR-D5240
25/28kV, 200 Amp, Loadbreak Elbow Connector, .890 inch - 1.220 Inch Cable Insulation Diameter, 1/0 Stranded Wire Size, Bi-Metal Compression Lug.
261LR-D5230
25/28kV, 200 Amp, Loadbreak Elbow Connector, .890 inch - 1.220 Inch Cable Insulation Diameter, #1 Stranded Wire Size, Bi-Metal Compression Lug.
261LR-C5270
25/28kV, 200 Amp, Loadbreak Elbow Connector, .805 inch - 1.060 Inch Cable Insulation Diameter, 4/0 Stranded or 250 kcmil Solid Wire Size, Bi-Metal Compression Lug.
261LR-C5240
25/28kV, 200 Amp, Loadbreak Elbow Connector, .805 inch - 1.060 Inch Cable Insulation Diameter, 1/0 Stranded Wire Size, Bi-Metal Compression Lug.
261LR-C5250
25/28kV, 200 Amp, Loadbreak Elbow Connector, .805 inch - 1.060 Inch Cable Insulation Diameter, 2/0 Stranded or 3/0 Solid Wire Size, Bi-Metal Compression Lug.
261LR-C5240-CEPA-H
25/28kV, 200 Amp, Loadbreak Elbow Connector, .805 inch - 1.060 Inch Cable Insulation Diameter, 1/0 Stranded Wire Size, Bi-Metal Compression Lug. CEPA-H
162LR-C5220
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .805 inch - 1.060 Inch Cable Insulation Diameter, #2 Stranded Wire Size, Bi-Metal Compression LugFrequently Asked Questions
Is the elbow compatible with Elastimold bushings?
Yes, it has a no-stick interface when used with Elastimold bushings, which has been NEETRAC tested.
What certifications does the loadbreak elbow hold?
The product is IEEE 386 compliant, ANSI certified, and has Rural Utilities Service (RUS) acceptance from the USDA.
What safety features does the enhanced elbow include?
It features improved insulation for 15 kV elbows, rigid probe support, a robust stainless-steel pulling eye, and dual grounding eye positions.
What is the product's current and voltage rating?
The Elastimold loadbreak elbow is rated for 200 amps and is designed for 15 kV and 25 kV applications.
Is the elbow compatible with Elastimold bushings?
Yes, it has a no-stick interface when used with Elastimold bushings, which has been NEETRAC tested.
What certifications does the loadbreak elbow hold?
The product is IEEE 386 compliant, ANSI certified, and has Rural Utilities Service (RUS) acceptance from the USDA.
What safety features does the enhanced elbow include?
It features improved insulation for 15 kV elbows, rigid probe support, a robust stainless-steel pulling eye, and dual grounding eye positions.
What is the product's current and voltage rating?
The Elastimold loadbreak elbow is rated for 200 amps and is designed for 15 kV and 25 kV applications.
What is the product's current and voltage rating?
The Elastimold loadbreak elbow is rated for 200 amps and is designed for 15 kV and 25 kV applications.
What safety features does the enhanced elbow include?
It features improved insulation for 15 kV elbows, rigid probe support, a robust stainless-steel pulling eye, and dual grounding eye positions.
How to Install 261LR/262LR Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of 261LR and 262LR Loadbreak Elbow Connectors, including cable preparation, assembly, grounding, and connection to a 25kV class bushing.
Estimated time: 1h 30m
Tools needed:
Probe wrench, Hotstick tool, Crimp tool, Wire brush, Wire strippers, Measuring tape
Supplies needed:
261LR or 262LR Loadbreak Elbow Connector Housing, Compression Lug, Probe, Lubricant (supplied, do not substitute), UD Cable, ElastimoldR 25kV class 200ampere loadbreak bushing or accessory device, Copper wire (No. 14 AWG / 2.5mm or equivalent), Appropriate connector for neutral wires, Cold shrink tube (if using sealing kit), Conductive copper tape (if using 200ECS-G2 kit), Vinyl tape
- Prepare the Cable for Termination
DANGER: All apparatus must be de-energized during installation. Train the cable to ensure adequate slack for operation. Identify your cable type (non-jacketed concentric neutral, jacketed concentric neutral, jacketed with drain wires, or jacketed copper tape shield) and follow the specific instructions to remove the outer jacket, unwrap neutral/drain wires, or remove copper tape shield to the specified dimensions. For concentric neutral cables, ensure an extra length of neutral wires (24-26 inches beyond the bushing centerline) or use a jumper/braid for tank ground connection. Cut the excess cable squarely at the centerline of the bushing. If using a cold shrink sealing kit (e.g., 200ECS, 200ECS-G1, 200ECS-G2), slide the cold shrink tube onto the cable's loose end first. For copper tape shield cable, wrap conductive copper tape over the end of the copper shield to hold it in place.
- Prepare Cable Insulation and Conductor
Remove the insulation shield and insulation 2-1/8 inches (55mm) from the cable end, cutting squarely and taking care not to nick the conductor. Wire brush the bare aluminum conductors thoroughly. Immediately install the compression lug, rotating it to spread the inhibitor. Position the compression lug so its contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart provided with the lug, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe any excess inhibitor from the outside of the lug and cable. Remove the insulation shield 6-7/8 inches (175mm) from the lug end. Bevel the insulation end a maximum of 1/8 inch (5mm). Thoroughly clean the insulation to remove all traces of dirt or excess inhibitor.
- Assemble the Elbow Connector
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant. DO NOT SUBSTITUTE other lubricants, as they may be harmful to the product. Keep the insulation clean of dirt and grime. Slide the elbow connector onto the cable using a back-and-forth twisting motion. Wipe off all excess lubricant. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, taking care not to cross-thread. The probe must turn freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends.
- Connect Grounding and Neutral Wires
Insert one end of a separate copper wire (No. 14 AWG / 2.5mm) or equivalent through the grounding eye on the elbow. Twist it tightly, taking care not to damage the eye. If the elbow was preordered with a ground wire, proceed to the next step. Twist all neutral wires together and connect them to ground using an appropriate connector. Provide adequate slack in the wires for elbow operation. If using a cold shrink grounding kit, refer to the instructions supplied with that kit to complete the installation.
- Connect the Elbow to the Bushing
DANGER: CONFIRM THAT THE TRANSFORMER AND ELBOW ARE DE-ENERGIZED before proceeding. Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. Securely fasten a hotstick to the loadbreak connector pulling eye. Insert the probe tip approximately 2 inches (50mm) into the bushing. Immediately push the elbow home with a fast, firm, straight motion, using sufficient force to engage the internal lock on the elbow connector and bushing interface. DO NOT HOLD THE ELBOW IN THE PARTIALLY INSERTED POSITION. DO NOT OPERATE BY HAND.
