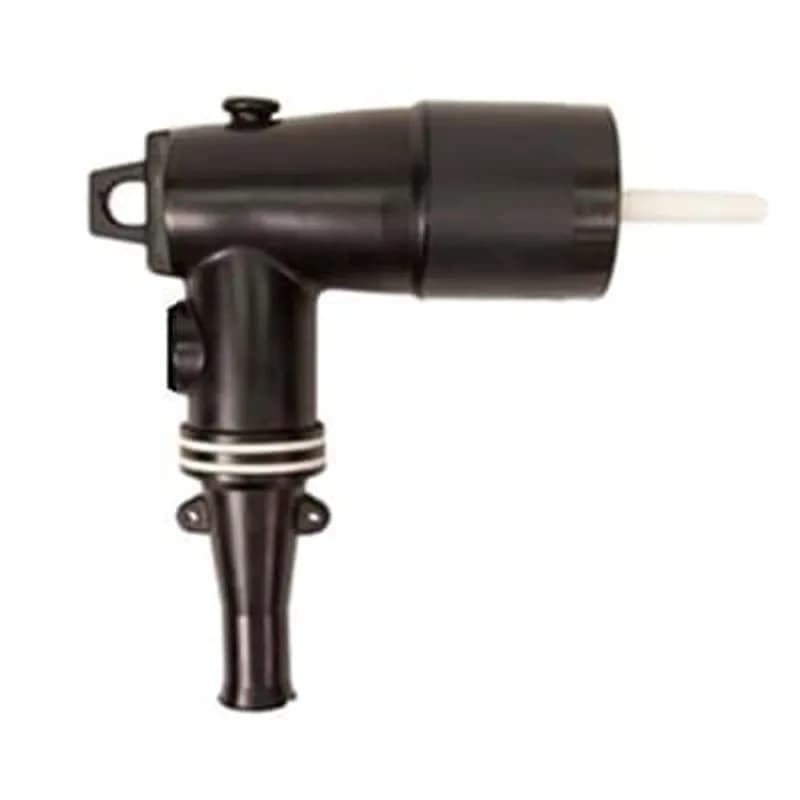

Overview
- 25/28kV voltage rating for medium-voltage applications
- 200 Amp current rating with copper compression lug
- Supports cable insulation diameters from .890" to 1.220"
- Compatible with 2/0 AWG stranded/compressed and 3/0 AWG solid/compact conductors
- ANSI/IEEE Standard 386 Compliant with Copper Compression Lug
Specifications
Amperage Rating | 200 A |
Application | 25/28 kV, 200 Amp |
Color | Black |
Conductor Range | 2/0 STR/COMPR AWG , 3/0 SOL/COMPT AWG |
Connection Type | Load Break Elbow |
Current Rating | 200 A |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Housing - EPDM-Rubber |
Material | Copper |
Series | 261LR |
Size | 0.890-1.220 inch (cable insulation diameter), 2/0 AWG stranded/compressed, 3/0 AWG solid/compact |
Size | 9.03 inch (299.4 mm) X 7.89 inch (200.4 mm) not including probe, 2.86 inch (72.6 mm) Diameter |
Special Features | 25/28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector |
Voltage Rating | 25 to 28 kV |
Voltage Rating | 25/28 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
168FLR3B0250
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Large Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Aluminum Conductor size 2/0 AWG Stranded/Compressed, 3/0 AWG Solid/Compact.
162LR-A-5210-S
200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.575 inch to 0.740 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #3, Solid #2, 26.67 mm2. 200ECS Jacket Seal Included. ANSI/IEEE Standard 386. Includes Elbow Housing, Compression Lug, Probe, Probe Wrench, Lubricant, V.D Cap-Peroxide, Crimp Chart, Installation Instructions.
K656LR-E0240
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 0.530 inch to 0.680 inch. Conductor Size Compressed/Stranded 1/0 or Compact/Solid 2/0. No Sealing Kit. Includes Elow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart.
M465LR-G2240
35kV, 630 Amp, Deadbreak Elbow, No Test Point, IEC-IEEE, No Sealing Kit. Cable Insulation Diameter 0.760 to 0.95 inch, Copper Lug, Wire Range 1/0 Stranded/Compressed or 2/0 Solid Compact. 10.36 inch (264.1mm) x 13 inch (330.2mm) from Bottom to Center of Bushing. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions and Crimp Chart.
162LRJSC5270-CS782C
15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point, .805 inch - 1.060 inch Cable Insulation Diameter. Wire Size 1/0 Stranded/Compressed, 2/0 Solid/Compact, 53.49 mm2. Bi-Metal Compression Lug. ANSI/IEEE Standard 386. Includes Elbow Connector Housing, Compression Lug, Probe, Lubricant, V.D Cap-Peroxide, Butyl Auto Tape, Contact Adapter Ring, Crimp Chart, Installation Instructions. Boxed Individually.162LRJSB5240-CS782C
15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point, .635 inch - .905 inch Cable Insulation Diameter. Wire Size 1/0 Stranded/Compressed, 2/0 Solid/Compact, 53.49 mm2. Bi-Metal Compression Lug. ANSI/IEEE Standard 386. Includes Elbow Connector Housing, Compression Lug, Probe, Lubricant, V.D Cap-Peroxide, Butyl Auto Tape, Contact Adapter Ring, Crimp Chart, Installation Instructions. Boxed Individually.
262LR-C5240-CS2089
25kV 200 Amp, Loadbreak Elbow Connector with Test Point, .805 inch - 1.060 Inch Cable Insulation Diameter, 1/0 Stranded Wire Size, Bi-Metal Compression Lug. Includes 62 inch Ground Lead Installed Through Grounding Eye Utilizing Rivet.Frequently Asked Questions
Is this product approved for rural infrastructure projects?
Yes, it has Rural Utilities Service (RUS) acceptance from the U.S. Department of Agriculture (USDA), authorizing its use in rural infrastructure construction and improvements.
What standards and certifications does the product meet?
The product is IEEE 386 compliant, ANSI certified, and has Rural Utilities Service (RUS) acceptance from the USDA.
What safety features does the enhanced elbow include?
It features improved insulation for 15 kV elbows, rigid probe support, a robust stainless-steel pulling eye, and dual grounding eye positions.
What is the product's current and voltage rating?
The enhanced Elastimold loadbreak elbow is rated for 200 amps and is available in 15 kV and 25 kV series.
What is the product's current and voltage rating?
The enhanced Elastimold loadbreak elbow is rated for 200 amps and is available in 15 kV and 25 kV series.
What safety features does the enhanced elbow include?
It features improved insulation for 15 kV elbows, rigid probe support, a robust stainless-steel pulling eye, and dual grounding eye positions.
What standards and certifications does the product meet?
The product is IEEE 386 compliant, ANSI certified, and has Rural Utilities Service (RUS) acceptance from the USDA.
Is this product approved for rural infrastructure projects?
Yes, it has Rural Utilities Service (RUS) acceptance from the U.S. Department of Agriculture (USDA), authorizing its use in rural infrastructure construction and improvements.
What is the product's current and voltage rating?
The enhanced Elastimold loadbreak elbow is rated for 200 amps and is available in 15 kV and 25 kV series.
What safety features does the enhanced elbow include?
It features improved insulation for 15 kV elbows, rigid probe support, a robust stainless-steel pulling eye, and dual grounding eye positions.
How to Install 261LR and 262LR Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of Elastimold 261LR and 262LR Loadbreak Elbow Connectors on various UD cables, including cable preparation, lug installation, elbow assembly, and grounding.
Estimated time: 1h 30m
Tools needed:
Wire strippers, Wire brush, Crimp tool, Probe wrench, Hotstick
Supplies needed:
Elbow Connector Housing, Compression Lug, Probe, Lubricant (Do Not Substitute), Separate copper wire (No. 14 AWG / 2.5mm) or equivalent, Appropriate connector (for neutral wires)
- Perform Pre-Installation Checks and Safety Procedures
Before beginning, ensure all apparatus are de-energized, except for test point caps and indicators. Do not touch or move energized products. Verify that only competent personnel trained in high-voltage safety practices are performing the installation. Inspect all package contents for completeness and damage. Check all components for proper fit with the cable and mating products. Test the probe threads by hand-threading it into the compression lug; if resistance is encountered, replace the damaged component. Have all required tools ready and maintain cleanliness throughout the procedure.
- Prepare the Cable for Termination
Train the cable to provide sufficient slack for future operation. Based on your specific cable type (non-jacketed concentric neutral, jacketed concentric neutral, jacketed with drain wires, or jacketed copper tape shield), follow the detailed instructions in the manual for preparing neutral/drain wires and removing the outer jacket or copper tape shield. Cut the excess cable squarely at the centerline of the bushing. If using a cold shrink tube from a sealing kit, slide it onto the cable loose end first at this stage.
- Prepare Cable End and Install Compression Lug
Remove the shield and insulation 2-1/8” (55mm) from the cable end, ensuring a square cut without nicking the conductor. Thoroughly wire brush bare aluminum conductors and immediately install the compression lug. Rotate the lug to spread the inhibitor and align its threaded hole with the bushing bore. Crimp the lug using the recommended crimp tool, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe off any excess inhibitor. Remove the insulation shield 6-7/8” (175mm) from the lug end, then bevel the insulation end a maximum of 1/8” (5mm). Clean the insulation thoroughly to remove all dirt or inhibitor traces.
- Assemble the Elbow Connector
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Slide the elbow connector onto the cable with a back-and-forth twisting motion, then wipe off all excess lubricant. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, ensuring no cross-threading. The probe should turn freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends, indicating proper torque.
- Ground the Elbow and Neutral Wires
Insert one end of a separate copper wire (No. 14 AWG / 2.5mm) or equivalent through the grounding eye on the elbow. Twist it tightly, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack for elbow operation. If using a cold shrink grounding kit, follow its specific instructions to complete this step.
- Connect the Elbow to the Bushing Plug
DANGER: CONFIRM THAT THE TRANSFORMER AND ELBOW ARE DE-ENERGIZED before proceeding with the connection. Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. Securely fasten a hotstick to the loadbreak connector pulling eye. Insert the probe tip approximately 2” (50mm) into the bushing. Immediately push the elbow home with a fast, firm, straight motion, applying sufficient force to engage the internal lock on the elbow connector and bushing interface.
