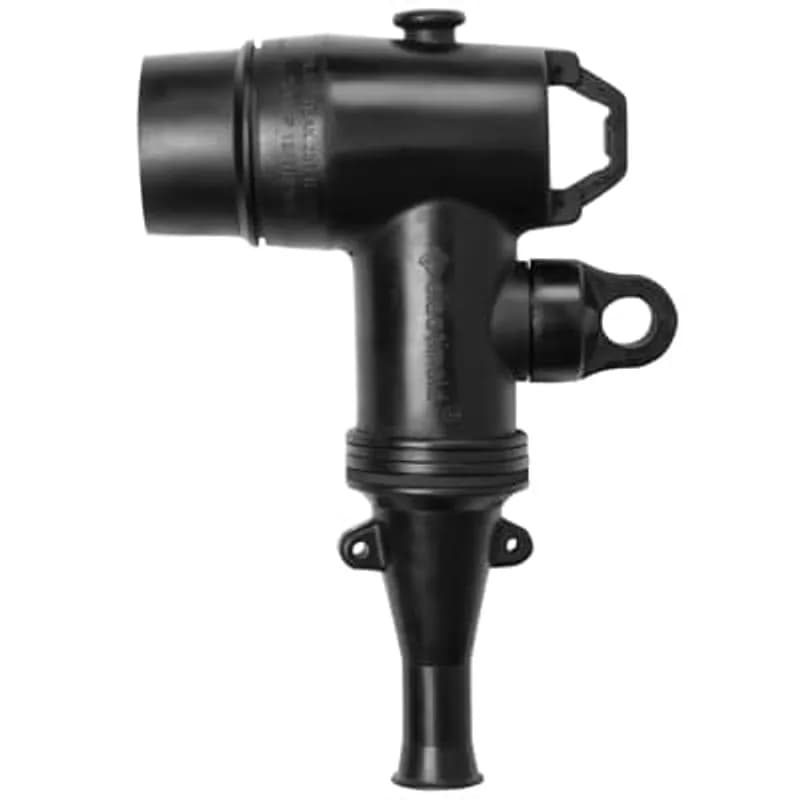

ABB Installation Products 252LR-C5260 15/25kV, 200 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter…
UPC: 075114345910
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25kV, 200 Amp deadbreak elbow connector for medium-voltage applications
- Bi-metal lug compatible with 260-3/0 AWG stranded/compressed and 4/0 AWG solid/compact conductors
- Cable insulation diameter range: 0.805-1.060 inches (20.45-26.92mm)
- Integrated test point for safe circuit testing without de-energization
- Kit includes elbow housing, lug, probe, wrench, bail assembly, V.D. cap, lubricant, crimp chart, and instructions
Specifications
Amperage Rating | 200 A |
Application | 15/25kV, 200 Amp Deadbreak Connector |
Color | Black |
Conductor Range | 3/0 STR/COMPR AWG , 4/0 SOL/COMPT AWG |
Connection | Compression |
Connection Type | Deadbreak Elbow Connector |
Current Rating | 200 A |
Environmental Conditions | Fully Submersible |
Insulation | True |
Length | 7.531 in |
Length | 191.2874 mm |
Material | Bi-Metal |
Material | Bi-Metal Lug, Elbow Connector Housing |
Material | Housing - EPDM-Rubber |
Series | 252LR |
Size | 0.805-1.060 inches (20.45-26.92mm) |
Size | 5.454 x 7.531 inches, 2.097 inch diameter |
Special Features | Fully Shielded, fully Submersible Molded Rubber Housing. Provision for Hot Stick Operation. Non-Corrosive, Capacitive Test Point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector with Test Point |
Voltage Rating | 15 to 25 kV |
Voltage Rating | 15/25 kV |
Width | 5.454 in |
Width | 138.5316 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
168RLR-K-5260
200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact.
252LR-C5270-S
15/25kV, 200 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.805-1.060 inches (20.45-26.92mm), Bi-Metal Lug, Conductor Size 270 - 4/0 Stranded/Compressed, 250kcmil Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Bail Assembly, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 5.454 x 7.531 inches, 2.097 inch diameter. Cold-Shrinkable Jacket Seal.
K656LR-F0210-SG3
15/25kV, 600 Amp, DeadBreak, Elbow with Test Point (includes Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation .640-.820 inches, Aluminum Compression Lug, Conductor Size #2 Compact/Solid, Cold-Shrinkable Seal with Copper Braid and Constant Force Spring252LR-D5270
15/25kV, 200 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.890-1.220 inches (22.61-30.99mm), Bi-Metal Lug, Conductor Size 270 - 4/0 Stranded/Compressed, 250kcmil Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Bail Assembly, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 5.454 x 7.531 inches, 2.097 inch diameter.K656LR-G0220
15/25kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Cable Insulation .760 to .950 inch. Aluminum Compression Lug, Conductor Size #2 Stranded/Compressed or #1 Compact/SolidK656LR-G0230
15/25kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Cable Insulation .760 to .950 inch. Aluminum Lug, Conductor Size #1 Stranded/Compressed or 1/0 Compact/SolidK656LR-H0270-SG3
600 Amp, 15/25kv, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter, Cable Insulation .850 to 1.050 inch. Aluminum Lug, Conductor Size 4/0 stranded/compressed or 250 Compact/solid. With Cold Shrinkable Seal with Copper Braid and Constant Force Spring.Frequently Asked Questions
What are the voltage ratings of this connector?
The 252LR-W5X Deadbreak Elbow Connector is rated for 15kV and 25kV voltage classes.
What conductor types are compatible with the bi-metal lug?
The bi-metal compression lug has a universal aluminum barrel suitable for both copper and aluminum conductors.
Which kit is for jacketed concentric neutral cables?
For jacketed concentric neutral cables, use the 200ECS sealing kit or add the "-S" suffix to the part number.
Is a sealing and grounding kit necessary?
For safety purposes, a sealing and grounding kit with the deadbreak elbow is highly recommended.
Which elbow housing works with the 160CA adapter?
The 160CA adapter can only be used in a 165/166LR elbow size housing.
What is the 160CA adapter used for?
The 160CA Elbow Cable Size Adapter is designed for small cables with insulation outside diameters between 0.495 inches and 0.685 inches.
What if my cable's insulation OD is small?
For cables with an insulation outside diameter less than 0.565 inches, you must order the 160CA-XX cable adapter.
Can hot stick tools be used with this connector?
Yes, the unit includes provisions for de-energized operation using standard hotstick tools.
Does this connector meet industry standards?
Yes, the connector meets ANSI/IEEE Standard 386, Latest Revision.
What is the 25kV class operating voltage?
For the 25kV class, the maximum phase-to-ground operating voltage is 15.2kV, and phase-to-phase is 26.3kV.
How to Install the Elastimold 252LR Deadbreak Elbow Connector
This guide provides step-by-step instructions for the safe and proper installation of the Elastimold 252LR Deadbreak Elbow Connector, including cable preparation, assembly, and connection to a deadbreak bushing.
Estimated time: 1h 30m
Tools needed:
Wrench, Hotstick (fully insulated), Wire brush, Crimp tool, Wire strippers
Supplies needed:
252LR Elbow Connector Housing, Compression Lug, Probe, Probe Contact, Lubricant (supplied with kit), Hold-down Bail, UD Cable (concentric neutral and semi-con shielding), No. 14 AWG (2.5mm) Copper Wire, Appropriate grounding connector, Silicone grease (for test point cap)
- Perform Pre-Installation Checks and Safety Procedures
DANGER: Ensure all apparatus is de-energized during installation. Do not touch or move energized products in the work area. Inspect all parts for damage, correct rating, and compatibility with mating parts. Verify the elbow housing cable entrance size and compression lug size match your cable. Thread the probe into the compression lug by hand to check for damage or resistance; replace components if damaged. Ensure the test point cap is installed, lubricated, and properly seated if not already. Gather all required tools and maintain a clean work area throughout the procedure.
- Train and Prepare the Cable
Train the UD cable as shown in the documentation, ensuring a minimum of 20 inches (508.0mm) extends beyond the end of the bushing pad. Cut the excess cable squarely at the center line of the bushing. Unwrap and bind the concentric neutral wires 8-1/2 inches (216.0mm) back from the end of the cable. Remove the semi-con shield and insulation from the cable end, cutting squarely and taking care not to nick the conductor. Wire brush the bare aluminum conductors immediately. Install the compression lug onto the conductor, rotating it to spread the inhibitor. Position the lug so its contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe off any excessive inhibitor. Remove the remaining semi-con shield as indicated and bevel the insulation end a maximum of 1/8 inch (3.2mm). Thoroughly clean the insulation to remove all traces of conductive residue.
- Assemble the Elbow Connector
Clean and lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant. DO NOT SUBSTITUTE other lubricants. Keep insulation clean of dirt and grime. Slide the elbow connector onto the cable using a back-and-forth twisting motion. Wipe off all excess silicone lubricant. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, ensuring not to cross-thread. Tighten the probe with the supplied wrench until the wrench bends, indicating proper torque.
- Connect Concentric Neutrals and Assemble Bail
Insert one end of a No. 14 AWG (2.5mm) copper wire through the grounding eye on the elbow and twist it tightly, taking care not to damage the eye. Twist all concentric neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack for elbow operation. Place the hold-down bail into the hold-down bracket, then compress the bail and insert it into the brackets.
- Connect Elbow to Bushing and Secure
DANGER: Ensure the transformer and elbow are known to be de-energized before proceeding. Clean the receptacle portion of the elbow connector and the mating bushing, then lubricate them with the supplied lubricant. Use a fully insulated hot stick to place the elbow onto the bushing. DO NOT OPERATE BY HAND. DO NOT SEPARATE IF ENERGIZED. Pull the hold-down bail up over the crown or top of the elbow so the eyebolt is directly over the operating eye. Tighten the elbow locator by turning the eyebolt clockwise. Adjust the nut on the eyebolt until it allows the eyebolt to seat securely in the locator, acting as a stop to prevent excessive force. Once the nut is in its final position, it will not need to be readjusted when removing and replacing the elbow.
