ABB Installation Products 200ECS-G3 Cold-Shrinkable Seal with Copper Braid Constant Force Spring. Size Range .80 inch to…
UPC: 783786648399
Contact for Pricing
Minimum Qty: 30
Multiplier: 30
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview

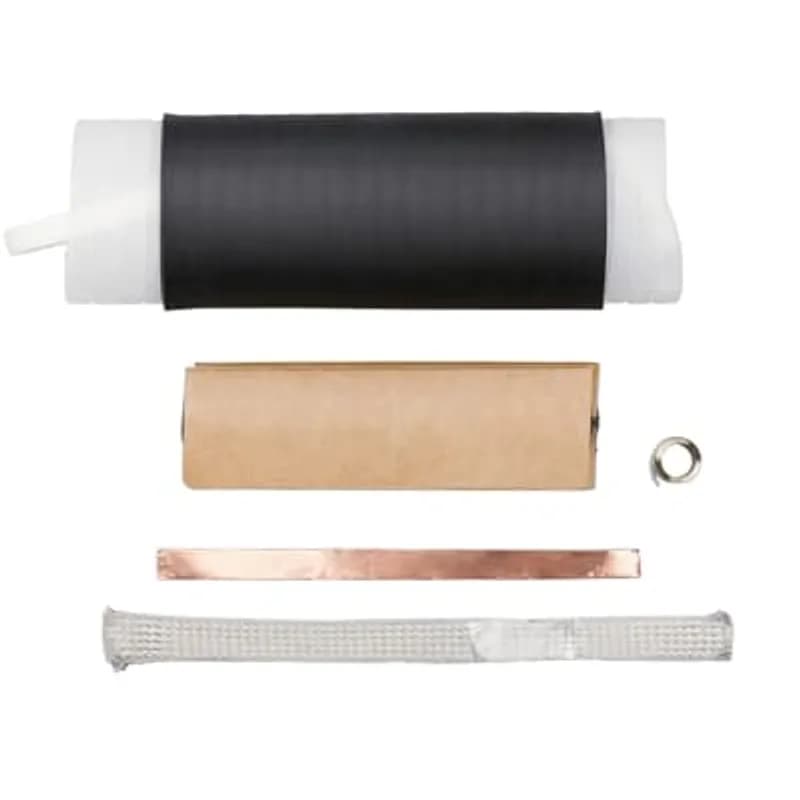

- Cold-shrink EPDM rubber seal with copper braid for jacketed power cables
- Compatible with XLP, EPR, and solid dielectric insulated cables
- Supports voltage classes up to 35kV with 150kV BIL impulse withstand
- Operating temperature range: -40°C to 65°C (-40°F to 149°F)
- No heat or special tools required for installation
Specifications
Material | Copper |
Material | Poly, Copper Braid |
Series | ECS-G3 |
Size | 0.80 inch to 1.50 inch jacket diameters |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Cold Shrink Seal |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.5800 L |
Package Weight (Metric) | 0.2630 kg |
1601CAB-A4R
15 kV, Well with Insert (K1601PCC-R and 1601A4), 2-3/4 inch Bushing Shank Length. Equipped with Copper Conductor Rod, Includes Shipping Cap.
K1601-PC-S1R
15/25kv, Short Shank Well with Bail Tabs and with Replaceable Well Stud (2-3/4 inch Bushing Shank Length)
L1601-PC-T2R
35kv, Long Shank Well Without Bail Tabs and With Replaceable Well Stud (9-1/4 inch Bushing Shank Length)L1601-PC-S2R
35kv, Short Shank Well without Bail Tabs and with Replaceable Well Stud (2-3/4 inch Bushing Shank Length)
K1601-PC-S1
15/25kv, Short Shank Bushing Well with Bail Tabs and Non-Replaceable Well Stud (2-3/4 inch Bushing Shank Length), side mount
Frequently Asked Questions
Does the 200ECS-G3 meet any industry standards?
Yes, the 200ECS-G3 meets ANSI/IEEE Standard 386, Latest Revision.
What is the 200ECS-G3 used for?
It is a cold shrink jacket seal restoration system used with XLP, EPR, or similar solid dielectric insulated power cables to provide sealing and protection.
What types of cables are compatible with 200ECS-G3?
It is compatible with XLP, EPR, or other similar solid dielectric insulated power cables, including those with extruded shields like copper tape shield cables.
What Elastimold products are compatible with 200ECS-G3?
The 200ECS-G3 is compatible with Elastimold products 165LR, 275LR, and 15PCJ.
What is the maximum operating voltage for the 15kV class?
For the 15kV voltage class, the maximum phase-to-ground operating voltage is 8.3kV and phase-to-phase is 14.4kV.
What is the maximum operating voltage for the 25kV class?
For the 25kV voltage class, the maximum phase-to-ground operating voltage is 15.2kV and phase-to-phase is 26.3kV.
What is the maximum operating voltage for the 35kV class?
For the 35kV voltage class, the maximum phase-to-ground operating voltage is 21.1kV and phase-to-phase is 36.6kV.
What is the continuous current rating of the 200ECS-G3?
The continuous and loadbreak current rating for all voltage classes is 200 Amp.
What is the momentary and fault close rating?
The momentary and fault close rating for all voltage classes is 10kA Sym for 10 Cycles.
What is the jacket outside diameter range for this kit?
The jacket outside diameter range for the 200ECS-G3 is a minimum of 0.80 inches and a maximum of 1.50 inches.
How to Install the 200 ECS-G3 Jacketed Cable Grounding and Sealing Kit
This guide provides step-by-step instructions for installing the 200 ECS-G3 Jacketed Cable Grounding and Sealing Kit on jacketed copper tape shielded cables, ensuring proper grounding and sealing.
Estimated time: 1h
Tools needed:
Cable knife, Wire strippers, Cleaning cloth
Supplies needed:
Cold Shrink Tube, Mastic, Flat Copper Braid, Conductive Copper Tape, Spring Coil, Vinyl Tape, Suitable grounding connector, #14 AWG Copper Wire
- Prepare Cable and Position Cold Shrink Tube
DANGER: Ensure all apparatus is de-energized before beginning installation. Wipe the outer jacket of the cable clean for a distance of 30 inches (750mm). Slide the cold shrink tube (loose end first) onto the cable for a distance of 18 inches (458mm).
- Strip Cable Jacket and Copper Tape Shield
Carefully remove the outer jacket for a distance of 4 inches (102mm) beyond the semi-con shield skive dimension as recommended by the product manufacturer. Next, remove the copper tape shield for a distance of 1 1/2 inches (38mm) from the end of the semi-con shield.
- Secure Shield and Apply Initial Mastic
Wrap conductive copper tape around the edge of the remaining copper tape shield to keep it securely in place. Then, apply one wrap of mastic over this area.
- Install and Secure Copper Braid with Spring Coil
Slightly flare the end of the flat copper braid that contains the solder block and place it on the copper shield, ensuring it is flush against the cable jacket. Wrap the spring coil around the braid and cable for two complete turns. Bend the braid back over the spring, then wrap the remainder of the spring coil around both the braid and cable. Finger tighten the spring coil and secure its end with a short piece of conductive copper tape. Verify that the solder block of the braid is centered on top of the mastic tape.
- Apply Additional Mastic and Vinyl Tape
Apply mastic over the installed braid. Overwrap this mastic with two half-lapped layers of vinyl tape. Wrap a third piece of mastic around the cable entrance of the connector being used. Overwrap this mastic with two half-lapped layers of vinyl tape for a complete seal.
- Activate Cold Shrink Tube
Pull the loose end of the cold shrink tube's cord from the back and unwind it in a clockwise direction until the plastic core is flush with the end of the cold shrink tube. Slide the cold shrink tube into its final position and continue to unwind the cord clockwise. The cold shrink tube will collapse, sealing the product end first. IMPORTANT: Ensure the tube overlaps the elbow or joint end by at least 1 inch (25mm) for a proper seal when no cable adapters are used, or overlaps the adapter and butts against the accompanying housing when adapters are used.
- Ground the Assembly
Using a suitable connector (not supplied with this kit) and #14 AWG copper wire, ground the entire assembly in accordance with standard utility practices and local electrical standards.
