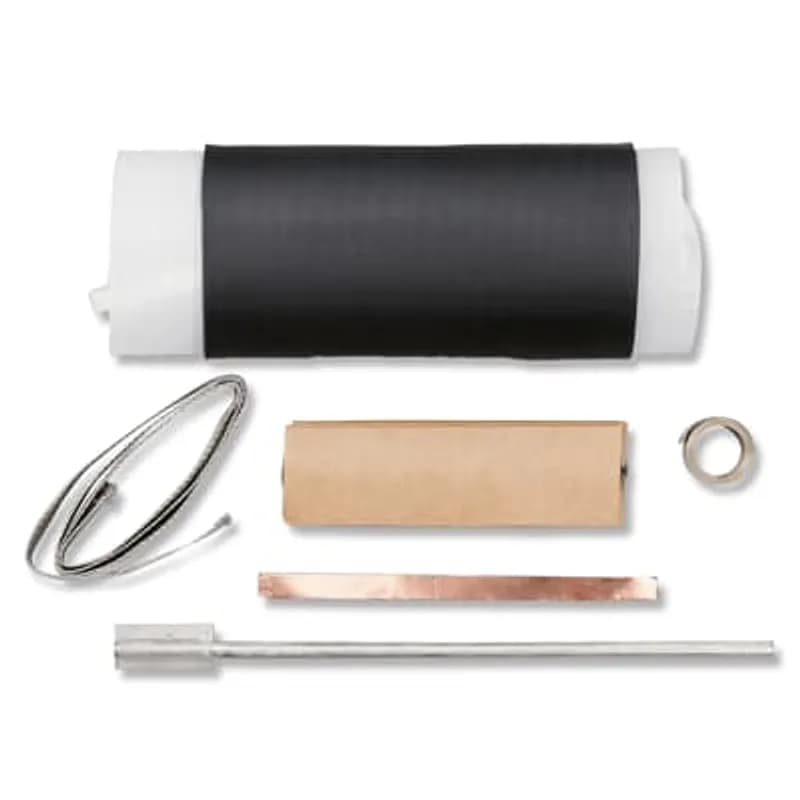

ABB Installation Products 600ECS-G2-2 Cold-Shrinkable Seal with Copper Rod & Constant Force Spring. Size Range 1.28 inch to…
UPC: 783786642113
Contact for Pricing
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- Cold-shrink EPDM rubber construction for moisture, UV, and ozone resistance
- Integrated copper rod and constant force spring for consistent sealing pressure
- Size range: 1.28" to 2.30" jacket diameters (max installed diameter ~2.75")
- Temperature range: -40°C to 65°C (-40°F to 149°F)
- Mastic strips included for enhanced sealing performance
Specifications
Application | 400 Amps |
Material | Copper |
Material | Copper Rod, Constant Force Spring, Cold-Shrinkable Seal Material |
Series | 600ECS-G2 |
Size | 1.28" to 2.30" jacket diameters (max installed diameter ~2.75") |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Cold Shrink Seal |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
600ECS-G3
Cold-Shrinkable Seal with Copper Braid & Constant Force Spring. Size Range 1.28 inch to 2.30 inch jacket diameters. Maximum installed diameter is approximately 2.75 inches.
600ECS-G1-2
Cold-Shrinkable Seal with Copper Rod & Crimp Connector. Size Range 1.28 inch to 2.30 inch jacket diameters. Maximum installed diameter is approximately 2.75 inches.
3C35MTGOEBN4GK2T
3-Core Modular Terminator, Outdoor, Cable Insulation Diameter in Inches EB .495-.5853C35MTGOGAN4GK2T
3-Core Modular Terminator, Outdoor, Cable Insulation Diameter in Inches GA .775-.885
PSB8359C
Insulated Pedestal Connector Bar - Type PSB-C, 350 Series, Number or Ports 8, Cable Range #12-350
UPB33SLGP
Bronze Insulated Bus Connector Bolted Type - 3 Sealed Terminals for #2 Stranded - 350 kcmil, 1 Sealed Street Light Terminal #12 solid - 4 stranded, contains oxide inhibitor
LAC20WS2P
Aluminum, Lug Assembly with Cover. 2/0 Stranded or 3/0 Solid, 840 Die, includes Aluminum Rod, Compound, Gray Cap, Insulating Santoprene Sleeve with Plug, Silicone Grease and Instruction Sheet. Connector Body - Diameter 29/32 inch, Length 1-5/8 inch, Cable Entrance Diameter 7/16 inch, Entrance Depth 1-1/2 inch. Cover/Sleeve - 6-1/16 inch long, Diameter - 1-23/64 inch large end to 1-13/64 inch small end. 600 Volts Max. For Aluminum and Copper ConductorsFrequently Asked Questions
What is the 600ECS-G2-2 product used for?
The 600ECS-G2-2 system restores cold shrink jacket seals on XLP, EPR, or similar solid dielectric insulated power cables. It provides necessary shielding for compromised cables.
What is the length of the copper rod and braid strap?
The copper rod length is 8.0 inches, and the copper braid strap length is also 8.0 inches.
What are the key features of the 600ECS-G2-2 kit?
It is a cold shrink jacket seal restoration kit that provides sealing and protection on extruded shield cable. It features an easy place and pull installation and includes a constant force spring and wire braid.
What is the jacket outside diameter range for this product?
The jacket outside diameter range for the 600ECS-G2-2 is a minimum of 1.28 inches and a maximum of 2.30 inches.
How do I order the 600ECS-G2-2 jacket seal restoration kit?
To order the jacket seal restoration kit, specify the number 600ECS-G2-2.
What is the BIL impulse withstand for the 15kV class?
For the 15kV voltage class, the BIL impulse withstand is 95kV (1.2 x 50 microsecond wave).
What is the continuous current rating for the product?
The continuous and loadbreak current rating for all voltage classes (15kV, 25kV, 35kV) is 200 Amp.
What is the momentary and fault close current rating?
The momentary and fault close current rating for all voltage classes is 10kA Sym for 10 Cycles.
What is the maximum operating voltage for the 35kV class?
For the 35kV voltage class, the maximum phase-to-ground operating voltage is 21.1kV, and the maximum phase-to-phase is 36.6kV.
What is the maximum operating voltage for the 25kV class?
For the 25kV voltage class, the maximum phase-to-ground operating voltage is 15.2kV, and the maximum phase-to-phase is 26.3kV.
How to Install the 600 ECS-G2 Jacketed Cable Grounding and Sealing Kit
This guide provides step-by-step instructions for installing the 600 ECS-G2 kit, designed for grounding and sealing jacketed copper tape shielded cables with an outer diameter range of 1.28” to 2.30” (32-58mm). Ensure all apparatus are de-energized before starting.
Estimated time: 1h
Tools needed:
Cleaning cloth, Utility knife, Wire strippers, Cutting tool (for braid), Crimping tool (for grounding connector)
Supplies needed:
Cold Shrink Tube, Mastic (3 pieces), Ground Rod (#2 AWG equivalent), Flat Copper Braid, Conductive Copper Tape, Spring Coil, Vinyl Tape (not supplied with kit), Suitable grounding connector (not supplied with kit)
- Prepare for Installation and Safety Check
DANGER: De-energize all apparatus before beginning installation. Ensure you are competent personnel trained in good safety practices involving high voltage electrical equipment. Inspect all kit parts for damage, proper rating, and compatibility with your cable and mating products. Wipe the outer jacket of the cable clean for a distance of 30” (750mm).
- Slide Cold Shrink Tube onto Cable
Slide the cold shrink tube (loose end first) onto the cable for a distance of 18” (458mm) from the end where the kit will be installed.
- Strip Cable Jacket and Shield
Carefully remove the outer jacket for a distance of 4” (102mm) beyond the semi-con shield skive dimension recommended by the product manufacturer. Then, remove the copper tape shield for a distance of 1.5” (38mm) from the end of the semi-con shield.
- Secure Copper Tape and Apply First Mastic Wrap
Wrap conductive copper tape around the edge of the remaining copper tape shield to keep it firmly in place. Apply one wrap of mastic around the cable, as indicated in the product diagram.
- Position Grounding Assembly
Place the grounding assembly against the outer jacket of the cable, ensuring it is correctly aligned as shown in the installation diagrams.
- Wrap Flat Braid
Wrap the flat copper braid over the grounding assembly five times. After wrapping, cut off any excess flat braid.
- Secure Spring Coil
Wrap the spring coil around the end of the flat braid. Finger tighten the spring coil and then secure the end of the coil with a short piece of conductive copper tape.
- Apply Mastic and Tape to Ground Rod
Place the ground rod against the cable. Apply a second piece of mastic over the ground rod. Overwrap this mastic with two half-lapped layers of vinyl tape to secure and seal it.
- Seal Cable Entrance with Mastic and Tape
Wrap a third piece of mastic around the cable entrance of the connector or product being used. Overwrap this mastic with two half-lapped layers of vinyl tape to ensure a proper seal.
- Activate and Position Cold Shrink Tube
Pull the loose cord from the back of the cold shrink tube and unwind it in a clockwise direction until the plastic core is flush with the end of the cold shrink tube. Slide the cold shrink tube into its final position, ensuring it overlaps the elbow or joint end by at least 1” (25mm) for a proper seal. If cable adapters are used, ensure the tube overlaps the adapter and butts against the accompanying housing. Continue unwinding the cord clockwise until the tube fully collapses and seals.
- Ground the Assembly
Using a suitable connector (not supplied with this kit), ground the entire assembly in accordance with standard utility practices and local electrical codes.
