ABB Installation Products 600ECS-G3 Cold-Shrinkable Seal with Copper Braid & Constant Force Spring. Size Range 1.28 inch to…
UPC: 783786653379
Contact for Pricing
Minimum Qty: 20
Multiplier: 20
*Contact for lower quantities*
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- Cold-shrink EPDM rubber tube with constant force spring for tool-free installation
- Flat copper braid provides reliable grounding and shielding for jacketed copper tape shield cables
- Mastic strips ensure watertight seal across jacket diameters from 1.28" to 2.30" (max installed diameter: 2.75")
- Operating temperature range: -40°C to 65°C (-40°F to 149°F)
- Meets ANSI/IEEE Standard 386 for medium-voltage cable applications
Specifications
Material | Copper |
Material | Poly, Copper Braid |
Series | ECS-G3 |
Size | 1.28 inch to 2.30 inch jacket diameters |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Cold Shrink Seal |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.5800 L |
Package Weight (Metric) | 0.2630 kg |
600ECS-G2-2
Cold-Shrinkable Seal with Copper Rod & Constant Force Spring. Size Range 1.28 inch to 2.30 inch jacket diameters. Maximum installed diameter is approximately 2.75 inches.
600ECS-G1-2
Cold-Shrinkable Seal with Copper Rod & Crimp Connector. Size Range 1.28 inch to 2.30 inch jacket diameters. Maximum installed diameter is approximately 2.75 inches.
3C35MTGOEBN4GK2T
3-Core Modular Terminator, Outdoor, Cable Insulation Diameter in Inches EB .495-.5853C35MTGOGAN4GK2T
3-Core Modular Terminator, Outdoor, Cable Insulation Diameter in Inches GA .775-.885
PSB8359C
Insulated Pedestal Connector Bar - Type PSB-C, 350 Series, Number or Ports 8, Cable Range #12-350
UPB33SLGP
Bronze Insulated Bus Connector Bolted Type - 3 Sealed Terminals for #2 Stranded - 350 kcmil, 1 Sealed Street Light Terminal #12 solid - 4 stranded, contains oxide inhibitor
LAC20WS2P
Aluminum, Lug Assembly with Cover. 2/0 Stranded or 3/0 Solid, 840 Die, includes Aluminum Rod, Compound, Gray Cap, Insulating Santoprene Sleeve with Plug, Silicone Grease and Instruction Sheet. Connector Body - Diameter 29/32 inch, Length 1-5/8 inch, Cable Entrance Diameter 7/16 inch, Entrance Depth 1-1/2 inch. Cover/Sleeve - 6-1/16 inch long, Diameter - 1-23/64 inch large end to 1-13/64 inch small end. 600 Volts Max. For Aluminum and Copper ConductorsFrequently Asked Questions
How do I order the 600ECS-G3 product?
To order the Cold Shrinkable Seal with Copper Braid & Constant Spring Force, specify 600ECS-G3.
How does the 600ECS-G3 prevent moisture?
It uses retained memory cold shrink EPDM rubber and mastic strips to prevent the damaging effects of moisture ingress.
What components are included in a 600ECS-G3 kit?

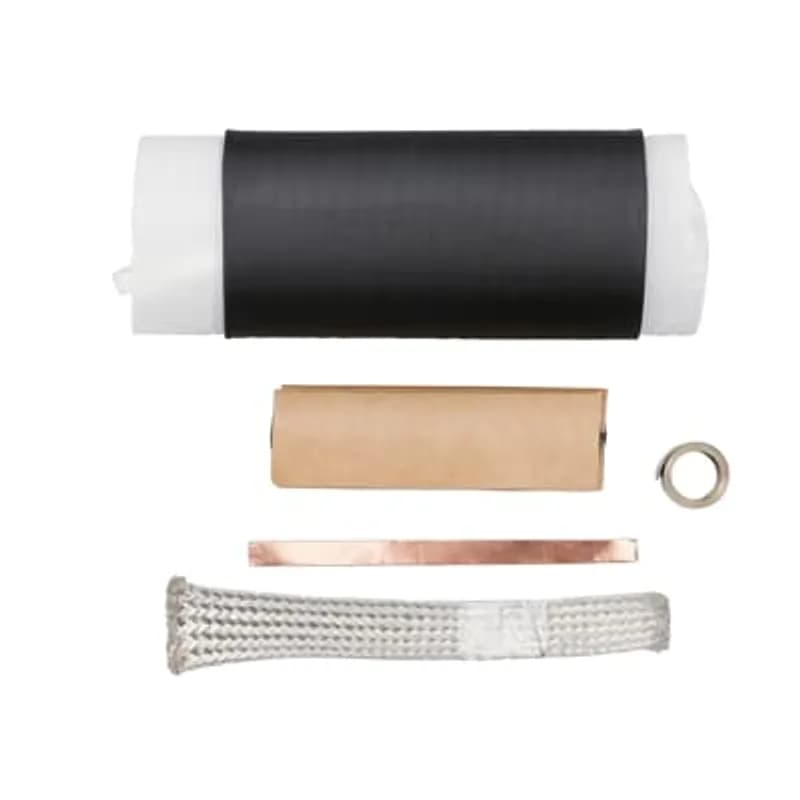

Each kit contains a Cold Shrink Tube, Conductive Copper Tape, Flat Copper Braid, Spring Coil, Mastic (Butyl Auto Tape), and an Instruction Sheet.
What is the jacket seal O.D. range for the 600ECS-G3?
The Cold Shrinkable Jacket Seal O.D. has a minimum of 1.28 inches (32.51 mm) and a maximum of 2.30 inches (58.42 mm).
Can the 600ECS-G3 be used outdoors?
Yes, its chemical, ultraviolet, and ozone resistance makes it very suitable for both indoor and outdoor applications.
What is the operating temperature range for 600ECS-G3?
The temperature range for the 600ECS-G3 is -40° Celsius (-40° Fahrenheit) to 65° Celsius (149° Fahrenheit).
What type of cables is the 600ECS-G3 compatible with?
The 600ECS-G3 is used for medium voltage cables with copper tape shield, specifically jacketed copper tape shield cables.
What is the 600ECS-G3 product used for?
The 600ECS-G3 Jacketed Cable Sealing Kits reseal the jacket on jacketed copper tape shield cables during elbow or other terminating accessory installations. They prevent moisture ingress.
What is the 600ECS-G3 product used for?
The 600ECS-G3 Jacketed Cable Sealing Kits reseal the jacket on jacketed copper tape shield cables during elbow or other terminating accessory installations. They prevent moisture ingress.
How do I order the 600ECS-G3 product?
To order the Cold Shrinkable Seal with Copper Braid & Constant Spring Force, specify 600ECS-G3.
How to Install the 600 ECS-G3 Jacketed Cable Grounding and Sealing Kit
This guide provides step-by-step instructions for installing the 600 ECS-G3 Jacketed Cable Grounding and Sealing Kit on jacketed copper tape shielded cable, ensuring proper grounding and sealing.
Estimated time: 1h
Tools needed:
Cable knife, Wire strippers, Cleaning cloth, Crimping tool, Scissors
Supplies needed:
Cold Shrink Tube, Mastic, Flat Copper Braid, Conductive Copper Tape, Spring Coil, Vinyl tape, Grounding connector, #14 AWG Copper Wire
- Prepare the Cable and Cold Shrink Tube
DANGER: Ensure all apparatus are de-energized before starting installation to prevent serious or fatal injury. Inspect all kit contents for completeness and damage, and verify component fit with the cable. Wipe the outer jacket of the cable clean for a distance of 30 inches (750mm). Slide the cold shrink tube (loose end first) onto the cable for a distance of 18 inches (458mm).
- Remove Cable Jacket and Copper Tape Shield
Remove the outer jacket for a distance of 4 inches (102mm) beyond the semi-con shield skive dimension recommended by the product manufacturer. Then, remove the copper tape shield for a distance of 1 1/2 inches (38mm) from the end of the semi-con shield.
- Apply Conductive Copper Tape and Mastic
Wrap conductive copper tape around the edge to keep the copper tape shield in place, ensuring a 1/4 inch (6mm) overlap. Install the desired product per its manufacturer’s instructions. Apply one wrap of mastic.
- Install Braided Copper Wire and Spring Coil
Slightly flare the end of the braided copper wire with the solder block and place it on the copper shield, flush against the cable jacket. Wrap the spring coil around the braid and cable for two complete turns. Bend the braid back over the spring and wrap the remainder of the spring coil around the braid and cable. Finger tighten the spring coil and secure its end with a short piece of copper tape. Ensure the solder block of the braid is centered on top of the mastic tape.
- Seal Braid with Mastic and Vinyl Tape
Apply mastic over the braid as shown in the diagram. Overwrap the mastic with two half-lapped layers of vinyl tape. Wrap a third piece of mastic around the cable entrance of the connector being used. Overwrap this mastic with two half-lapped layers of vinyl tape.
- Position and Collapse Cold Shrink Tube
Pull the loose end of the cold shrink tube from the back and unwind the cord in a clockwise direction until the plastic core is flush with the end of the cold shrink tube. Slide the cold shrink tube into position and continue to unwind the cord in a clockwise direction. The cold shrink tube will collapse at the product end first. IMPORTANT: If no cable adapters are used, the tube must overlap the elbow or joint end by at least 1 inch (25mm) for a proper seal. If cable adapters are used, the tube must overlap the adapter and butt against the accompanying housing for a proper seal.
- Ground the Assembly
Using a suitable connector (not supplied) and #14 AWG copper wire, ground the assembly in accordance with standard utility practices and local electrical standards.
