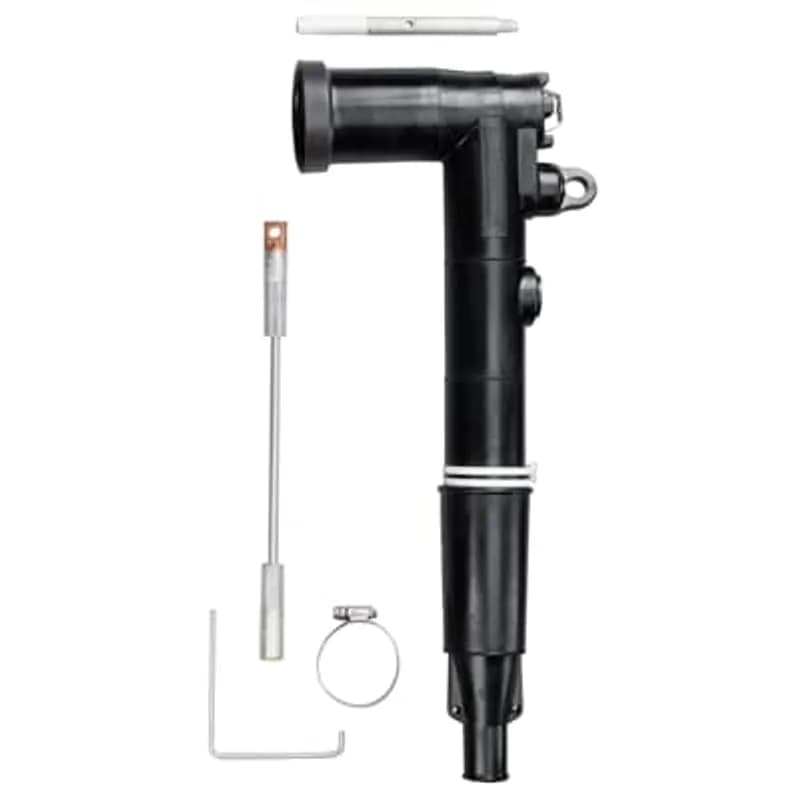

ABB Installation Products 168RLR-J5270 200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation…
UPC: 075114408639
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp, 15kV loadbreak replacement elbow connector
- Accommodates cable insulation diameters from 0.980 inch to 1.180 inch
- Extended length design adds 8-7/8 inches for improved installation flexibility
- Includes bi-metal compression lug, probe wrench, probe, hose clamp, crimp chart, instructions, and lubricant
Specifications
Amperage Rating | 200 A |
Application | Designed for connecting to and operating 15kV Class, 95kV BIL apparatus |
Color | Black |
Conductor Range | 4/0 STR/COMPR AWG , 250 SOL/COMPT kcmil |
Connection | Compression |
Connection Type | Compression Lug |
Current Rating | 200 A |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Housing - EPDM-Rubber |
Series | 168RLR |
Size | Cable Insulation Diameter 0.980 inch to 1.180 inch |
Size | 0.980 inch to 1.180 inch (cable insulation diameter), 4/0 or 250 kcmil (conductor size) |
Special Features | Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 10-1/2 inch (266.7mm). Non-Corrosive Capacitive Test Point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Replacement Elbow Connector with Test Point |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |

655ETP-J0270-S
15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125. 200ECS Cold-Shrinkable Jacket Seal Included.
K656LR-H2250-SG3
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Copper Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size Compressed/Stranded 2/0 or Compact/Solid 3/0 or mm2 Compact 70. SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
K151SR-A2240
200 Amp, 15/25kV, Deadbreak Elbow, Straight Receptacle, Bails are required but not included, order separately. Cable Insulation Diameter 0.575 inch to 0.740 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 1/0 or Solid Compact 2/0 or 53.49 mm2. Includes Straight Receptacle Housing, Receptacle Pin Connector, Lubricant, Installation instructions and Crimp Chart
K151SP-C2240
15kv 200 Amp Straight Plug No Test Point, No Seal, Cable Insulation Diameter 0.805 inch to 1.060 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 1/0 or Solid Compact 2/0 or 53.49 mm2.
262LR-D5240-S
15/25kV, 200 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.890-1.220 inches (22.61-30.99mm), Bi-Metal Lug, Conductor Size 240 - 1/0 Stranded/Compressed or 2/0 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Bail Assembly, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 5.454 x 9.03 inches tall, 2.097 inch diameter. Includes Cold Shrink-Fit Jacket Seal Kit
168FLR1-C5270
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Conductor size 4/0 Stranded/Compressed AWG or 250 Solid/Compact kcmil. Bi-Metal Connector.
K656I-M0360
15-25kV 600 Series Deadbreak Separable Straight Joint Package (2-Way) with Test Point. Aluminum Compression Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size Compressed Stranded 650 kcmil or Compacted Solid 750 kcmil.
K151SP-A2240
200 Amp, 15/25kV, Deadbreak Elbow, Straight Plug, Bails are required but not included, order separately. Cable Insulation Diameter 0.575 inch to 0.740 inch. Copper Compression Lug, Conductor Size AWG Compressed Stranded 1/0 or Solid Compact 2/0 or 53.49 mm2.Frequently Asked Questions
What is the catalog number for the test point cap?
The test point cap for these elbows has catalog number 156-7.
What is the primary use of these elbow connectors?
These Elastimold elbow connectors facilitate transitioning from live-front to dead-front equipment without splicing or pulling new cable.
How much length does the replacement elbow add?
The replacement elbow provides a net gain of 8 7/8 inches in length due to its extended housing and compression lug.
What are the voltage and current ratings?
The 168RLR replacement elbow is rated for a 15 kV voltage class and 200 A current.
What is the function of the capacitive test point?
The capacitive test point allows for testing the circuit to determine the presence of voltage.
What standards and certifications do these elbows meet?
These elbows are IEEE 386 compliant, ANSI certified, and accepted by the Rural Utilities Service (RUS).
Where are these elbow connectors manufactured?
Elastimold 200 A repair and replacement elbows are designed, molded, and tested in Albuquerque, New Mexico, USA.
What type of contact is included with the replacement elbow?
The replacement elbow includes a long bi-metal contact with catalog number 00400X.
What is the catalog number for the test point cap?
The test point cap for these elbows has catalog number 156-7.
What type of contact is included with the replacement elbow?
The replacement elbow includes a long bi-metal contact with catalog number 00400X.
How to Install 167RLR/168RLR Loadbreak Replacement Elbow Connectors
This guide provides step-by-step instructions for safely installing Elastimold 167RLR and 168RLR Loadbreak Replacement Elbow Connectors, converting livefront terminations to deadfront for UD cables.
Estimated time: 1h 30m
Tools needed:
Hotstick (full insulated live-line tool), Probe Wrench, Wire brush, Crimping tool, Cable cutting tool, Cable insulation removal tool, Screwdriver or nut driver
Supplies needed:
Replacement Elbow Connector Housing, Compression Lug, Probe, Lubricant (Do Not Substitute), Hose Clamp, No. 14 AWG (2.5mm) Copper wire, Ground connector
- De-energize and Remove Existing Terminator
DANGER: Ensure all apparatus is de-energized during installation or removal of parts. Remove the rubber cap from the existing terminator. Cut off the connector at the top of the terminator, then disconnect the ground lead from its base. Finally, remove the terminator housing from the cable.
- Prepare Cable for Elbow Connector
Train the cable to be straight and in-line with the bushing centerline. Cut the cable to a precise length of 10-1/2 inches from the bushing centerline. Carefully remove 1-3/8 inches of cable insulation from the end, ensuring not to nick the conductor. If the insulation shield measures less than 6-1/2 inches from the cut end, proceed; otherwise, consult an ELASTIMOLD representative.
- Install and Crimp Compression Lug
Wire brush the bare aluminum conductor immediately. Install the compression lug, rotating it to spread the inhibitor. Position the lug so its threaded hole aligns with the bushing bore. Crimp the lug starting at the crimp line mark, rotating 180 degrees for each successive crimp. Carefully wipe any excessive inhibitor from the lug and cable exterior.
- Assemble Elbow Housing and Probe
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Slide the elbow connector onto the cable using a back-and-forth twisting motion, then wipe off any excess lubricant. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends.
- Connect Concentric Neutral and Ground
Using a separate No. 14 AWG (2.5mm) copper wire or equivalent, insert one end through the grounding eye on the elbow and twist it tight, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack for elbow operation. Add the supplied hose clamp, tightening it snugly without overtightening.
- Connect Elbow to Bushing Plug
Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant ONLY if both the transformer and elbow are known to be de-energized. Using a full insulated hotstick type live-line tool, place the elbow connector receptacle over the bushing plug. Insert the elbow male contact into the bushing until slight resistance is felt, then immediately push the elbow home with a fast, firm, straight motion to engage the internal lock.
