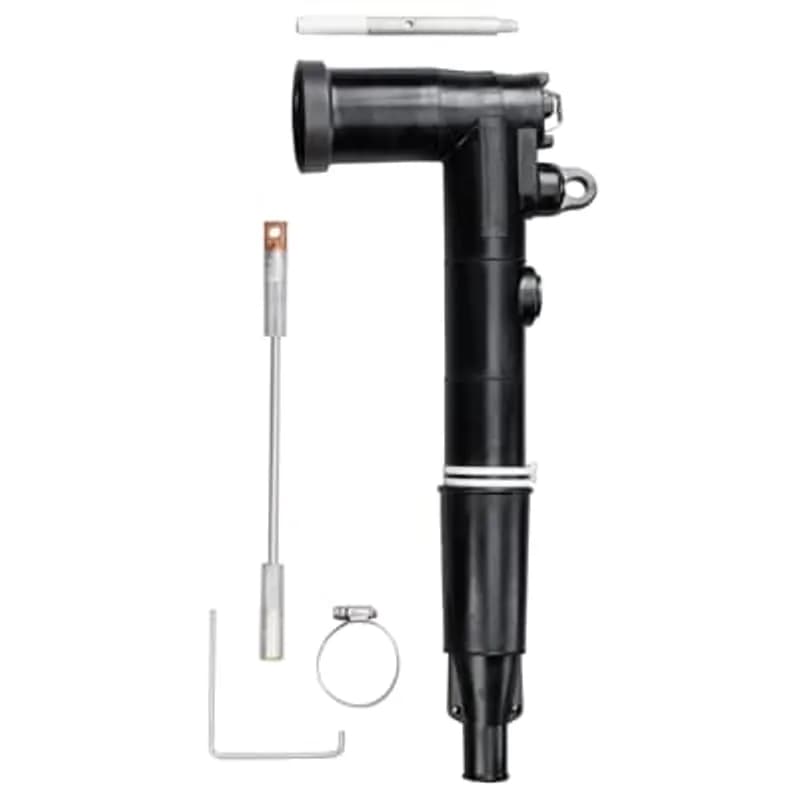

ABB Installation Products 168RLR-F-5210 200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation…
UPC: 783786093144
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp, 15kV Class loadbreak elbow connector
- Extended length housing and compression lug (+8-7/8 inches / 225.4 mm)
- Cable insulation diameter range: 0.640" to 0.820" (16.26 mm to 20.83 mm)
- Bi-Metal Compression Lug compatible with #3 AWG compressed stranded, #2 AWG solid, or 26.67 mm²
- Non-corrosive capacitive test point, hot stick operation, and ground wire connection
Specifications
Amperage Rating | 200 A |
Application | Designed for connecting to and operating 15kV Class, 95kV BIL apparatus |
Color | Black |
Conductor Range | #3 STR/COMPR AWG , #2 SOL/COMPT AWG |
Connection Type | Compression Lug |
Current Rating | 200 A |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Housing - EPDM-Rubber |
Material | Bi-Metal, Poly |
Series | 168RLR |
Size | Cable Insulation Diameter 0.640 inch to 0.820 inch |
Special Features | Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 10-1/2 inch (266.7mm). Non-Corrosive Capacitive Test Point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Replacement Elbow Connector with Test Point |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.1000 L |
Package Weight (Metric) | 1.4060 kg |
274ELR-6689-5210
25kV, Loadbreak Repair Elbow Connector with Test Point, Repair Elbow has extended length contact and elbow housing resulting in a net gain of 3-1/4 inches in length. Includes 02509X long Bi-Metal Contact. Cable Insulation Diameter 0.665 inch to 0.895 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #3/Solid #2/mmSquared 26.67. No Sealing Kit168RLR-G-5260
15kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01.168RLR-G5220
15kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.
167ELR-6689-5240
15kV 200 Amp, Loadbreak Repair Elbow Connector, Cable Insulation Diameter 0.665 inch to 0.895 inch. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. Bi-Metal Compression Lug.
274RLR-J5250
25kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43.167ELR-88110-5270
15kV 200 Amp, Loadbreak Repair Elbow Connector, Cable Insulation Diameter 0.880 inch to 1.100 inch. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67. Bi-metal compression lug.274ELR-88110-5260
25kV 200 Amp, Loadbreak Repair Elbow Connector with Test Point, Cable Insulation Diameter 0.880 inch to 1.100 inch. Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01. Bi-Metal Compression lug.
376LR-J5240-S
35kV 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS Jacket Seal Included.Frequently Asked Questions
What is the maximum cable insulation diameter supported?
The connector supports cable insulation diameters ranging from 0.640 inches to 0.820 inches.
What conductor sizes can the bi-metal lug accommodate?
The bi-metal compression lug is designed for compressed stranded conductor size #3 AWG, solid conductor size #2 AWG, or 26.67 mm².
What is the voltage rating of this elbow connector?
This loadbreak elbow connector has a voltage rating of 15kV.
Does this connector include a test point?
Yes, this loadbreak replacement elbow connector features a test point for diagnostic purposes.
What is the current rating of the elbow connector?
The elbow connector has a current rating of 200 Amps.
How to Install the 168RLR Loadbreak Replacement Elbow Connector
This guide details the installation of the 168RLR Loadbreak Replacement Elbow Connector, converting a livefront termination to deadfront for UD cable. It provides an operating interface for 15kV class loadbreak bushings or accessory devices.
Estimated time: 1h
Tools needed:
Probe Wrench, Hotstick tool, Wire brush
Supplies needed:
168RLR Replacement Elbow Connector Housing, Compression Lug, Probe, Lubricant, Hose Clamp, No. 14 AWG (2.5mm) Copper Wire, Grounding Connector
- De-energize and Remove Existing Termination
DANGER: Ensure all apparatus is de-energized before proceeding with installation or removal of parts. Remove the rubber cap from the existing terminator, cut off the connector at the top, disconnect the ground lead from its base, and then remove the terminator housing from the cable.
- Prepare the Cable
Train the cable to be straight and in-line with the bushing centerline. Cut the cable to a length of 10-1/2 inches from the bushing centerline. Verify the insulation shield length; if it's less than 6-1/2 inches, proceed. Remove 1-3/8 inches of cable insulation from the end, ensuring a square cut and avoiding nicks to the conductor.
- Install the Compression Lug
Wire brush the bare aluminum conductor. Immediately install the compression lug, rotating it to spread the inhibitor. Position the lug so its threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe off any excessive inhibitor from the lug and cable.
- Assemble the Elbow Connector
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Slide the elbow connector onto the cable using a back-and-forth twisting motion, then wipe off any excess grease. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the wrench until the wrench bends.
- Connect the Concentric Neutral
Insert one end of a No. 14 AWG (2.5mm) copper wire through the grounding eye on the elbow and twist it tight. Twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack for elbow operation. Add the hose clamp as shown in the diagram and tighten it snugly, but do not overtighten.
- Connect the Elbow to the Bushing Plug
Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. IMPORTANT: Only lubricate if the transformer and elbow are confirmed to be de-energized. Operate the connection using a hotstick tool; do not operate by hand.
- Perform Voltage Test (168RLR Only)
For 168RLR models, perform a voltage test to determine if the circuit is energized. Remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device; do not use conventional voltage measuring equipment. Use a suitable sensing device designed for capacitive test points and follow its manufacturer's directions. Treat the elbow as energized until a "no voltage" indication is confirmed by other means, as contamination or incorrect equipment can give false readings. After testing, clean and lubricate the inside surface of the cap with silicone grease and replace it on the test point.
