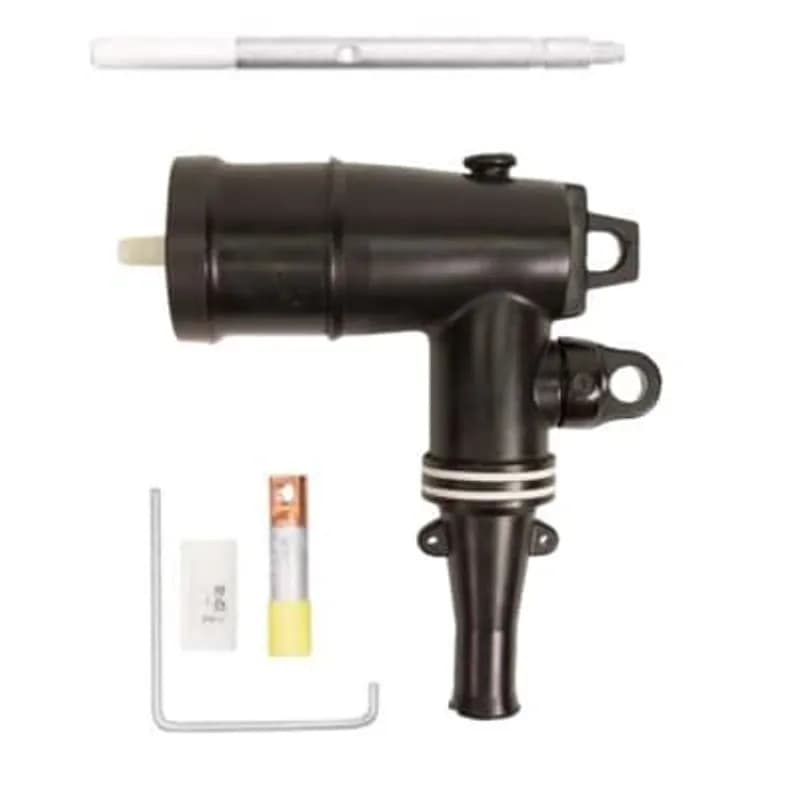

ABB - Installation Products 162LR-A2220-S - 200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.575 inch to 0.740 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62. 200ECS Jacket Seal Included.

ABB Installation Products 162LR-A2220-S 200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter…

UPC: 075114354585


Documents & Media
BrochureInstallation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 162LR-A2220-S is a 200 Amp, 15kV loadbreak elbow connector designed for reliable medium-voltage cable connections in underground distribution systems. This connector accommodates cable insulation diameters from 0.575 inch to 0.740 inch, making it compatible with a range of #2/AWG compressed stranded or #1/solid conductors sized at 33.62 mm². Constructed with a copper compression lug, it ensures low-resistance electrical contact and long-term durability in harsh operating environments. Key features include a built-in test point for safe voltage verification without disconnecting the system, and an integrated 200ECS jacket seal that provides environmental protection against moisture, dirt, and contaminants. The compression lug design eliminates the need for soldering or crimping tools, streamlining installation while maintaining consistent performance. This elbow connector is part of the ABB 162LR series, a trusted solution for utilities, industrial facilities, and commercial installations requiring medium-voltage loadbreak capabilities. The 15kV rating makes it suitable for applications such as underground residential distribution (URD), pad-mounted transformers, switchgear, and junction boxes where safe loadbreak operation is critical. The connector’s compact design and molded EPDM construction ensure mechanical strength and dielectric integrity, even under repeated loadbreak cycles. For operators, the test point simplifies maintenance and troubleshooting, reducing downtime during inspections or fault isolation. ABB’s 162LR-A2220-S is manufactured to meet industry standards for medium-voltage connectors, providing a dependable solution for engineers and contractors prioritizing reliability and ease of installation. The product is identified by SKU 162LR-A2220-S and UNSPSC code 39121421.
  • 200 Amp, 15kV loadbreak elbow connector for medium-voltage applications
  • Compatible with cable insulation diameters 0.575" to 0.740"
  • Copper compression lug for low-resistance electrical contact
  • Built-in test point for safe voltage verification without disconnection
  • 200ECS jacket seal for environmental protection against moisture and contaminants

Specifications

Amperage Rating
200 A
Application
The 162LR is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems
Color
Black
Conductor Range
#2 STR/COMPR AWG , #1 SOL/COMPT AWG
Environmental Conditions
Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water
Insulation
True
Material
Housing - EPDM-Rubber
Size
9.03 inch x 7.76 inch not counting probe
Special Features
Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Non-Corrosive Capacitive Test Point. Jacket Seal Included
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Loadbreak Elbow Connector with Test Point
Voltage Rating
15 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
25kV, 600 Amp, Deadbreak Elbow, No Sealing Kit, without Test Point, Cable Insulation .640-.820 inches, Bi-Metal Lug, Conductor Size AWG Compressed/Stranded #2 or Compacted/Solid #1 or mm2 Compact 35.

K655LR-F5220

25kV, 600 Amp, Deadbreak Elbow, No Sealing Kit, without Test Point, Cable Insulation .640-.820 inches, Bi-Metal Lug, Conductor Size AWG Compressed/Stranded #2 or Compacted/Solid #1 or mm2 Compact 35.
15kV, 600 Amp - 200 Amp Combo T, with Insulated Cap and Sealing Kit. Combo Elbow with bus, stud and cable adapter and lug kit. Cable Insulation Diameter 1.370 inch to 1.630 inch. Bi-Metal Compression Lug. Conductor Size kcmil Compressed or Stranded 650, Compacted or Solid 750.

656CEPTM0360DRG-S

15kV, 600 Amp - 200 Amp Combo T, with Insulated Cap and Sealing Kit. Combo Elbow with bus, stud and cable adapter and lug kit. Cable Insulation Diameter 1.370 inch to 1.630 inch. Bi-Metal Compression Lug. Conductor Size kcmil Compressed or Stranded 650, Compacted or Solid 750.
25kv, 600 Amp Series, Deadbreak Combo-T. Connector Elbow with Integral 200 Amp Loadbreak Tap Plug with Test Point. Cable Insulation Diameter 1.370-1.630 inches (34.8-41.4 mm). Aluminum Conductor Material, Conductor Code 360 - 650 Stranded/Compressed or 750/800 Solid/Compact. No Sealing Kit.

K656CETP-M0360

25kv, 600 Amp Series, Deadbreak Combo-T. Connector Elbow with Integral 200 Amp Loadbreak Tap Plug with Test Point. Cable Insulation Diameter 1.370-1.630 inches (34.8-41.4 mm). Aluminum Conductor Material, Conductor Code 360 - 650 Stranded/Compressed or 750/800 Solid/Compact. No Sealing Kit.
Straight Receptacle with Test Point, 200 Amp, DeadBreak, 15/25KV, Cable Insulation Diameter 0.575 inch to 0.740 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1/0, Solid 2/0.

K152SR-A0240

Straight Receptacle with Test Point, 200 Amp, DeadBreak, 15/25KV, Cable Insulation Diameter 0.575 inch to 0.740 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1/0, Solid 2/0.
600 Amp, 15/25 kV, Deadbreak Separable Y Joint package 3-Way with Test Point, (2) Sides Cable Insulation Diameter G - 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 2/0 or Compacted Solid 3/0. (1) Side Cable Insulation Diameter K - 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 450 or Compacted Solid 550. Includes SG1 - Cold-Shrinkable Seal with Copper Rod and Crimp Connector.

K656CY-DP0600536

600 Amp, 15/25 kV, Deadbreak Separable Y Joint package 3-Way with Test Point, (2) Sides Cable Insulation Diameter G - 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 2/0 or Compacted Solid 3/0. (1) Side Cable Insulation Diameter K - 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 450 or Compacted Solid 550. Includes SG1 - Cold-Shrinkable Seal with Copper Rod and Crimp Connector.
25/28kV, 200 Amp, Elbow Connector, Loadbreak, No Sealing Kit, No Test Point, Cable Insulation Diameter .635-.905 inches, Bi-Metal Lug, Conductor Size #2 Stranded/Compressed or #1 Compact/Solid.

261LR-B5220

25/28kV, 200 Amp, Elbow Connector, Loadbreak, No Sealing Kit, No Test Point, Cable Insulation Diameter .635-.905 inches, Bi-Metal Lug, Conductor Size #2 Stranded/Compressed or #1 Compact/Solid.
15KV, 200 Amp, Loadbreak Elbow with Sealing Jacket, Cable Insulation Diameter 0.890 inch to 1.220 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed-Stranded 1/0, Solid-Compact 2/0.

161LRJS-D5240

15KV, 200 Amp, Loadbreak Elbow with Sealing Jacket, Cable Insulation Diameter 0.890 inch to 1.220 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed-Stranded 1/0, Solid-Compact 2/0.
15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2 or Compacted Solid #1.

K656CY-J0220

15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2 or Compacted Solid #1.

Frequently Asked Questions

Is an optional integral jacket seal available?

Yes, the enhanced design includes an optional integral jacket seal for increased flexibility.

What material is the pulling eye made from?

The pulling eye is made from robust stainless steel, which promotes durable hotstick control.

Does the elbow have a no-stick interface?

Yes, it features a no-stick interface when used with Elastimold bushings, which has been NEETRAC tested.

What standards does this product meet?

The product is IEEE 386 compliant and has ANSI certification, in addition to RUS acceptance.

Is the Elastimold elbow RUS accepted?

Yes, the enhanced Elastimold 200 amp loadbreak elbow has Rural Utilities Service (RUS) acceptance from the U.S. Department of Agriculture (USDA).

What are the voltage ratings for this product?

The Elastimold 200 amp loadbreak elbow is designed for 15 kV and 25 kV series applications.

What product is described in this document?

This document describes the enhanced Elastimold 200 amp loadbreak elbow, available for 15 kV and 25 kV series applications.

Is an optional integral jacket seal available?

Yes, the enhanced design includes an optional integral jacket seal for increased flexibility.

What material is the pulling eye made from?

The pulling eye is made from robust stainless steel, which promotes durable hotstick control.

What product is described in this document?

This document describes the enhanced Elastimold 200 amp loadbreak elbow, available for 15 kV and 25 kV series applications.

How to Install the 162LR Loadbreak Elbow Connector

This guide provides step-by-step instructions for the safe and proper installation of the 162LR Loadbreak Elbow Connector, including cable preparation, assembly, and grounding.

Estimated time: 1h 30m

Tools needed:

Wire strippers, Wire brush, Crimp tool, Probe wrench, Hotstick, Suitable sensing device (for capacitive test points)

Supplies needed:

Elbow Connector Housing, Compression Lug, Probe, Lubricant (Do Not Substitute), Copper wire (No. 14 AWG / 2.5mm), Appropriate connector for neutral wires, Vinyl tape (if applicable), Conductive copper tape (if applicable), Cold shrink tube (if using sealing kit), Insulated cap(s) or connector(s)

  1. Prepare for Installation and Inspect Components

    DANGER: Ensure all apparatus is de-energized before beginning installation. This product must be installed by competent personnel trained in high voltage safety practices. Inspect all package contents for completeness and damage. Verify all components fit properly with the cable and mating products. Check the probe threads by hand-threading into the compression lug; replace if resistance is encountered.

  2. Prepare the Cable for Termination

    Train the cable to ensure adequate slack for operation. Based on your cable type (non-jacketed, jacketed concentric neutral, jacketed with drain wires, or jacketed copper tape shield), prepare the cable by cutting it squarely at the bushing centerline and removing the outer jacket, shield, or tape as specified in the product documentation (e.g., 9-5/8" (240mm) for jacketed cables). Unwrap and manage neutral or drain wires, or wrap conductive copper tape as required. If using a cold shrink sealing kit, slide the cold shrink tube onto the cable now.

  3. Prepare Cable Insulation and Install Compression Lug

    Remove 2-1/8" (55mm) of the shield and insulation from the cable end, cutting squarely without nicking the conductor. Wire brush bare aluminum conductors immediately. Install the compression lug, rotating it to spread inhibitor, and align its threaded hole with the bushing bore. Crimp the lug according to the crimp chart provided with the lug, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe off any excess inhibitor. Remove 6-7/8" (175mm) of the insulation shield and bevel the insulation end by a maximum of 1/8" (5mm). Thoroughly clean the insulation to remove all dirt or inhibitor traces.

  4. Assemble the Elbow Connector

    Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Slide the elbow connector onto the cable using a back-and-forth twisting motion, then wipe off any excess lubricant. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the supplied probe wrench until the wrench bends.

  5. Ground the Elbow and Connect Neutrals

    Insert one end of a separate No. 14 AWG (2.5mm) copper wire or equivalent through the grounding eye on the elbow and twist it tightly, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack for elbow operation. If using a cold shrink grounding kit, follow its specific instructions.

  6. Connect the Elbow to the Bushing Plug

    DANGER: Re-confirm that both the transformer and the elbow are de-energized before proceeding. Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. Securely fasten a hotstick to the loadbreak connector pulling eye. Insert the probe tip approximately 2" (50mm) into the bushing, then immediately push the elbow home with a fast, firm, straight motion, using sufficient force to engage the internal lock. DO NOT OPERATE BY HAND.

  7. Perform Voltage Test (Optional)

    If the connector is equipped with a capacitance test point, remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device; do not use conventional voltage measuring equipment. Use a suitable sensing device designed for capacitive test points and follow its manufacturer's directions to determine if the cable is energized. Treat the elbow as energized until a 'no voltage' indication is confirmed by other means. After testing, clean the inside of the cap, lubricate with silicone lubricant, and replace it on the test point.
