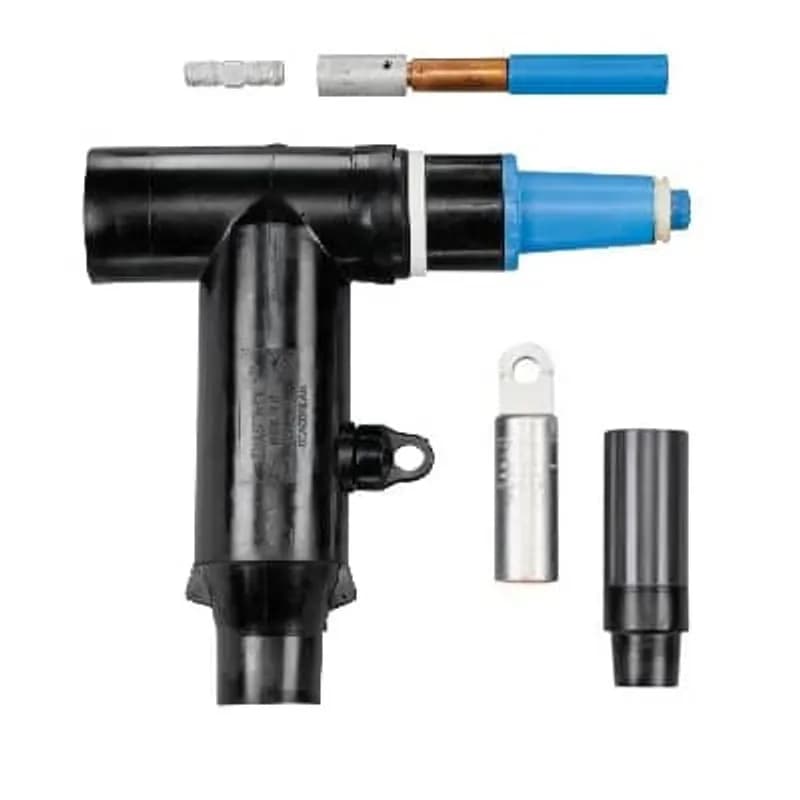

ABB Installation Products K656CETP-M0360 25kv, 600 Amp Series, Deadbreak Combo-T. Connector Elbow with Integral 200 Amp Loadbreak…

The system must be de-energized before initiating any ComboT installation. Always refer to the complete instruction sheet.

The system must be de-energized before initiating any ComboT installation. Always refer to the complete instruction sheet.

The system must be de-energized before initiating any ComboT installation. Always refer to the complete instruction sheet.

ComboT connectors are available in universal aluminum, copper, or bi-metal options.

CETP connectors have continuous current ratings of 600 A for deadbreak and 200 A for loadbreak connections. Some 900 A deadbreak options are also available.

Table W provides cable insulation diameter ranges in inches and millimeters, along with corresponding symbols for ordering.

Table X provides connector sizing information based on AWG or kcmil and mm2, with corresponding X codes for ordering.

ComboT connectors utilize a standard 5/8 inch–11 stud that threads into the equipment bushing.

CCP and CBW connectors have a voltage class of 15/25/28 kV, with a maximum phase-to-ground operating voltage of 16.2 kV.

CETP connectors are available in 15 kV and 25 kV classes, with max phase-to-ground operating voltages of 8.3 kV and 15.2 kV, respectively.
